3RV2011-0EA25

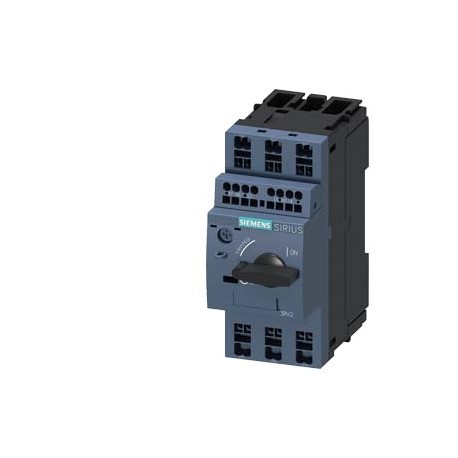

3RV2011-0EA25 SIEMENS Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.28...0.4 A N-relea..
$0.00USD
4129 in stock
Key Specifications
:
EAN:4011209840928
UPC:662643921519
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209840928 |
| UPC | 662643921519 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 97 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 106 mm |
| B10 value | |
| Group Code | R711 |
| trip class | CLASS 10 |
| — upwards | 30 mm |
| ● at 24 V | 2 A |
| ● at 60 V | 0.15 A |
| ● at AC-3 | |
| Metal Factor | LAP----- |
| — forwards | 0 mm |
| ● at 120 V | 0.5 A |
| ● at 125 V | 0.5 A |
| ● at 230 V | 0.5 A |
| Date5/12/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5332 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 30 mm |
| Commodity Code | 85362010 |
| Product family | SIRIUS 3RV2 motor starter protectors |
| last modified: | 11/16/2021 |
| Net Weight (kg) | 0,330 Kg |
| operating power | |
| — at the side | 9 mm |
| ● rated value | 690 V |
| Depth (EF000049) | 97.0 |
| Width (EF000008) | 45.0 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| Height (EF000040) | 106.0 |
| Marine / Shipping | other |
| mounting position | any |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| failure rate [FIT] | |
| product brand name | SIRIUS |
| ● during storage | -50 ... +80 °C |
| Packaging Dimension | 52,50 x 120,00 x 106,50 |
| Product Description | Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.28...0.4 A N-release 5.2 A Spring-type terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC |
| ambient temperature | |
| operating frequency | |
| operational current | |
| product designation | Circuit breaker |
| ● at AC-3 maximum | 15 1/h |
| ● during operation | -20 ... +60 °C |
| ● during transport | -50 ... +80 °C |
| design of the product | For motor protection |
| — solid or stranded | 2x (0,5 ... 4 mm²) |
| ● for main contacts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| product type designation | 3RV2 |
| temperature compensation | -20 ... +60 °C |
| — at 230 V rated value | 0.1 kW |
| — at 400 V rated value | 0.1 kW |
| — at 500 V rated value | 0.1 kW |
| — at 690 V rated value | 0.2 kW |
| ● at 240 V rated value | 100 kA |
| ● at 400 V rated value | 100 kA |
| ● at 480 V rated value | 0.4 A |
| ● at 500 V rated value | 100 kA |
| ● at 600 V rated value | 0.4 A |
| ● at 690 V rated value | 100 kA |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| ● for auxiliary contacts | |
| ● ground fault detection | No |
| Standard lead time ex-works | 70 Day/Days |
| Surcharge for Raw Materials | None |
| design of screwdriver shaft | Diameter 3 mm |
| size of the circuit-breaker | S00 |
| size of the screwdriver tip | 3,0 x 0,5 mm |
| ● for live parts at 400 V | |
| ● for live parts at 500 V | |
| ● for live parts at 690 V | |
| ● phase failure detection | Yes |
| Package size unit of measure | MM |
| ● for main current circuit | spring-loaded terminals |
| Substance Prohibitance (Date) | 10/01/2009 |
| type of electrical connection | |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| For use in hazardous locations | Declaration of Conformity |
| design of the auxiliary switch | transverse |
| design of the overload release | thermal |
| ● at AC at 240 V rated value | 100 kA |
| ● at AC at 400 V rated value | 100 kA |
| ● at AC at 500 V rated value | 100 kA |
| ● at AC at 690 V rated value | 100 kA |
| Switch off technique (EF007007) | Magnetic |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 0.4 A |
| ● at AC-3 rated value maximum | 690 V |
| ● for grounded parts at 400 V | |
| ● for grounded parts at 500 V | |
| ● for grounded parts at 690 V | |
| design of the short-circuit trip | magnetic |
| proportion of dangerous failures | |
| ● at AC in hot operating state | 5.5 W |
| ● at AC-3 at 400 V rated value | 0.4 A |
| ● of the main contacts typical | 100 000 |
| ● of auxiliary contacts typical | 100 000 |
| Phase failure sensitive (EF007400) | true |
| Rated operating voltage (EF001435) | ['690', '690'] |
| Type of control element (EF006976) | Turn button |
| With thermal protection (EF006233) | thermal |
| product extension auxiliary switch | Yes |
| relative humidity during operation | 10 ... 95 % |
| ● at AWG cables for main contacts | 2x (20 ... 12) |
| Degree of protection (IP) (EF005474) | IP20 |
| display version for switching status | Handle |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RV2011-0EA25 |
| Rated permanent current Iu (EF001389) | 0.4 |
| ● for auxiliary and control circuit | spring-loaded terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● between main and auxiliary circuit | 400 V |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 3 |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 14) |
| product function short circuit protection | Yes |
| ● at AC in hot operating state per pole | 1.8 W |
| mechanical service life (switching cycles) | |
| Overload release current setting (EF002336) | ['0.28', '0.4'] |
| With integrated auxiliary switch (EF001387) | true |
| full-load current (FLA) for 3-phase AC motor | |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| shock resistance according to IEC 60068-2-27 | 25g / 11 ms |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| power loss [W] for rated value of the current | |
| ● with low demand rate according to SN 31920 | 50 % |
| Rated operation power at AC-3, 230 V (EF007025) | 0.06 |
| Rated operation power at AC-3, 400 V (EF001364) | 0.09 |
| electrical endurance (switching cycles) typical | 100 000 |
| — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| ● with high demand rate according to SN 31920 | 5 000 |
| With integrated under voltage release (EF001390) | false |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| size of contactor can be combined company-specific | S00, S0 |
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E |
| contact rating of auxiliary contacts according to UL | C300 / R300 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| breaking capacity maximum short-circuit current (Icu) | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| Adjustment range undelayed short-circuit release (EF007131) | ['5.2', '5.2'] |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| breaking capacity operating short-circuit current (Ics) at AC | |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| response value current of instantaneous short-circuit trip unit | 5.2 A |
| Rated short-circuit breaking capacity lcu at 400 V, AC (EF007049) | 100.0 |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| ● for short-circuit protection of the auxiliary switch required | Fuse gL/gG: 10 A, miniature circuit breaker C 6 A (short-circuit current Ik < 400 A) |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| product component removable terminal for auxiliary and control circuit | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| adjustable current response value current of the current-dependent overload release | 0.28 ... 0.4 A |
| maximum permissible voltage for safe isolation in networks with grounded star point | |
| General Product ApprovalConfirmationKCFor use in hazardous locationsDeclaration of ConformityTest CertificatesUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingMarine / ShippingotherRailwayConfirmationConfirmationVibration and Shock | General Product Approval |
