3RV1935-3B

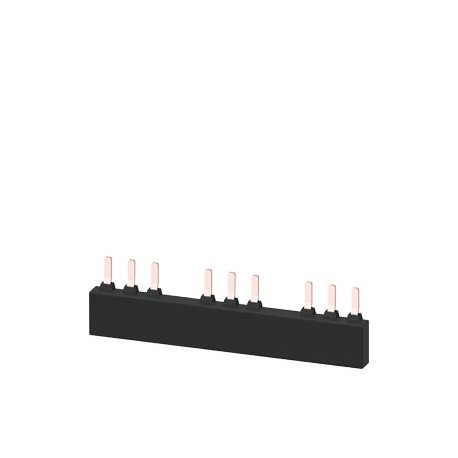

3RV1935-3B SIEMENS 3-phase busbar for 3 circuit breakers Size S2 Modular spacing: 75 mm
$0.00USD
3302 in stock
Key Specifications
:Confirmation
EAN:4011209363861
UPC:754554502724
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209363861 |
| UPC | 754554502724 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | L-P----- |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3719 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85366990 |
| Product family | Busbar accessories |
| last modified: | 2/9/2022 |
| Net Weight (kg) | 0,263 Kg |
| Country of origin | Germany |
| Marine / Shipping | other |
| Test Certificates | Marine / Shipping |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 55,00 x 206,00 x 15,00 |
| Product Description | 3-phase busbar for 3 circuit breakers Size S2 Modular spacing: 75 mm |
| suitability for use | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Special Test Certificate | Type Test Certificates/Test Report |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| Rated current In (EF008250) | 108.0 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| size of the circuit-breaker | |
| Package size unit of measure | MM |
| operational current rated value | A |
| Version as busbar adapter (EF006965) | FALSE |
| Article Number (Market Facing Number) | 3RV1935-3B |
| Version as built-in device (EF006954) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of poles for main current circuit | |
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E |
| touch protection on the front according to IEC 60529 | |
| type of electrical connection for main current circuit | |
| protection class IP on the front according to IEC 60529 | |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherRailwayConfirmationVibration and Shock | General Product Approval |
