3RV1611-0BD10

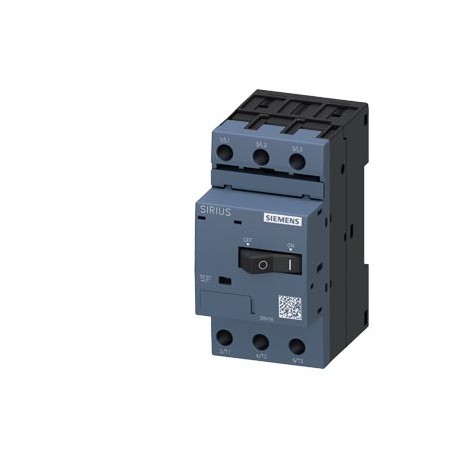

3RV1611-0BD10 SIEMENS Circuit breaker size S00 for fuse monitoring Screw terminal A-release 0.2 A N-release ..
$0.00USD
4523 in stock
Key Specifications
:
EAN:4011209288553
UPC:754554735511
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209288553 |
| UPC | 754554735511 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 75 mm |
| other | Railway |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 90 mm |
| Group Code | R711 |
| — upwards | 20 mm |
| Confirmation | Miscellaneous |
| Date5/7/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAP----- |
| — forwards | 0 mm |
| ● at 240 V | none required |
| ● at 400 V | None required |
| ● at 500 V | None required |
| ● at 690 V | None required |
| Product Group | 3715 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 20 mm |
| Commodity Code | 85362010 |
| Product family | SIRIUS 3RV1 motor starter protectors |
| last modified: | 1/27/2022 |
| Net Weight (kg) | 0,235 Kg |
| — at the side | 9 mm |
| ● rated value | 690 V |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| mounting position | any |
| operating voltage | |
| tightening torque | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -50 ... +80 °C |
| Packaging Dimension | 49,00 x 100,00 x 84,00 |
| Product Description | Circuit breaker size S00 for fuse monitoring Screw terminal A-release 0.2 A N-release 1.2 A |
| ambient temperature | |
| operating frequency | |
| operational current | |
| product designation | Circuit breaker |
| ● at AC-3 maximum | 15 1/h |
| ● during operation | -20 ... +60 °C |
| ● during transport | -50 ... +80 °C |
| design of the product | for fuse monitoring |
| — solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x (1 ... 4 mm²) |
| ● for main contacts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF003977) | - |
| product type designation | 3RV1 |
| temperature compensation | -20 ... +60 °C |
| ● at 240 V rated value | 100 kA |
| ● at 400 V rated value | 100 kA |
| ● at 480 V rated value | 0.2 A |
| ● at 500 V rated value | 100 kA |
| ● at 600 V rated value | 0.2 A |
| ● at 690 V rated value | 100 kA |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Number of poles (EF001391) | 3 |
| ● for auxiliary contacts | |
| ● ground fault detection | No |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| size of the circuit-breaker | S00 |
| size of the screwdriver tip | Pozidriv size 2 |
| ● for live parts at 400 V | |
| ● for live parts at 500 V | |
| ● for live parts at 690 V | |
| ● phase failure detection | Yes |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Special Test Certificate |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 01/01/2013 |
| type of electrical connection | |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| design of the overload release | thermal |
| ● at AC at 240 V rated value | 100 kA |
| ● at AC at 400 V rated value | 100 kA |
| ● at AC at 500 V rated value | 100 kA |
| ● at AC at 690 V rated value | 100 kA |
| Motor drive optional (EF007386) | false |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 0.2 A |
| ● at AC-3 rated value maximum | 690 V |
| ● for grounded parts at 400 V | |
| ● for grounded parts at 500 V | |
| ● for grounded parts at 690 V | |
| design of the short-circuit trip | magnetic |
| ● at AC in hot operating state | 5.5 W |
| ● at AC-3 at 400 V rated value | 0.2 A |
| ● of the main contacts typical | 100 000 |
| Motor drive integrated (EF006697) | false |
| ● of auxiliary contacts typical | 100 000 |
| Type of control element (EF006976) | Rocker |
| product extension auxiliary switch | Yes |
| relative humidity during operation | 10 ... 95 % |
| Degree of protection (IP) (EF005474) | IP20 |
| display version for switching status | Rocker switch |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RV1611-0BD10 |
| Rated permanent current Iu (EF001389) | 0.2 |
| With under voltage release (EF007518) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With switched-off indicator (EF007006) | false |
| ● between main and auxiliary circuit | 400 V |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 3 |
| product function short circuit protection | Yes |
| ● at AC in hot operating state per pole | 1.8 W |
| mechanical service life (switching cycles) | |
| Overload release current setting (EF002336) | ['-', '-'] |
| Integrated earth fault protection (EF007296) | false |
| design of the thread of the connection screw | |
| full-load current (FLA) for 3-phase AC motor | |
| number of CO contacts for auxiliary contacts | 0 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| power loss [W] for rated value of the current | |
| Complete device with protection unit (EF008906) | - |
| ● for main contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| DIN rail (top hat rail) mounting optional (EF008904) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41E / 41E |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● for auxiliary contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| breaking capacity maximum short-circuit current (Icu) | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | FALSE |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Position of connection for main current circuit (EF006671) | Other |
| Adjustment range undelayed short-circuit release (EF007131) | ['1.2', '1.2'] |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| breaking capacity operating short-circuit current (Ics) at AC | |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| response value current of instantaneous short-circuit trip unit | 1.2 A |
| Number of auxiliary contacts as normally open contact (EF001376) | - |
| Number of auxiliary contacts as normally closed contact (EF001377) | - |
| Adjustment range short-term delayed short-circuit release (EF007129) | ['-', '-'] |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (EF007048) | 100.0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2013 |
| product component removable terminal for auxiliary and control circuit | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| maximum permissible voltage for safe isolation in networks with grounded star point | |
| design of the fuse link for IT network for short-circuit protection of the main circuit | |
| General Product ApprovalDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportotherRailwayConfirmationMiscellaneousSpecial Test Certificate | General Product Approval |
