3RU2136-4DB0

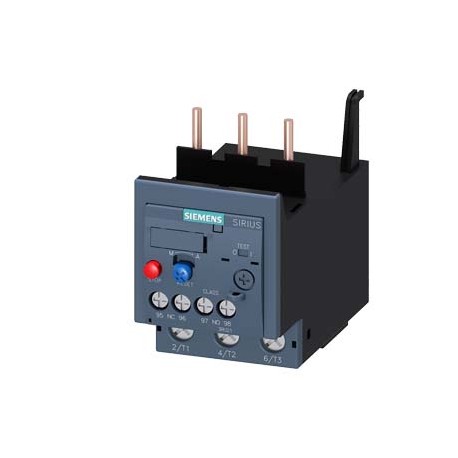

3RU2136-4DB0 SIEMENS Overload relay 18...25 A Thermal For motor protection Size S2, Class 10 Contactor mount..
$0.00USD
3973 in stock
Key Specifications
:Confirmation
EAN:4011209916715
UPC:887621919504
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209916715 |
| UPC | 887621919504 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 105 mm |
| other | Railway |
| width | 55 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 90 mm |
| ● note | for contactor disconnection |
| Group Code | R711 |
| trip class | CLASS 10 |
| ● at 24 V | 3 A |
| ● at 60 V | 0.3 A |
| ● at AC-3 | |
| Confirmation | Special Test Certificate |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | L-O----- |
| ● at 110 V | 3 A |
| ● at 120 V | 3 A |
| ● at 125 V | 3 A |
| ● at 220 V | 0.11 A |
| ● at 230 V | 2 A |
| ● at 400 V | 1 A |
| ● at AC-3e | |
| ● per pole | 3.5 W |
| Product Group | 5346 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3RU2 for standard applications |
| last modified: | 3/8/2022 |
| Net Weight (kg) | 0,330 Kg |
| operating power | |
| ● rated value | 690 V |
| fastening method | Contactor mounting |
| Country of origin | Germany |
| mounting position | any |
| operating voltage | |
| tightening torque | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Packaging Dimension | 61,00 x 96,00 x 111,00 |
| Product Description | Overload relay 18...25 A Thermal For motor protection Size S2, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset |
| ambient temperature | |
| product designation | thermal overload relay |
| ● during operation | -40 ... +70 °C |
| ● during transport | -55 ... +80 °C |
| — solid or stranded | 2x (1 ... 35 mm²), 1x (1 ... 50 mm²) |
| ● for main contacts | |
| size of overload relay | S2 |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| General Product Approval | For use in hazardous locations |
| Release class (EF006668) | CLASS 10 |
| product type designation | 3RU2 |
| temperature compensation | -40 ... +60 °C |
| — at 400 V rated value | 11 kW |
| — at 500 V rated value | 15 kW |
| — at 690 V rated value | 22 kW |
| ● at 480 V rated value | 25 A |
| ● at 600 V rated value | 25 A |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| design of screwdriver shaft | Diameter 5 ... 6 mm |
| size of the screwdriver tip | Pozidriv PZ 2 |
| Package size unit of measure | MM |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 10/15/2014 |
| type of electrical connection | |
| For use in hazardous locations | Declaration of Conformity |
| design of the auxiliary switch | integrated |
| design of the overload release | thermal |
| Reset function input (EF011940) | - |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 25 A |
| ● at AC-3e rated value maximum | 690 V |
| relative humidity during operation | 10 ... 95 % |
| Adjustable current range (EF008211) | ['18', '25'] |
| Reset function automatic (EF011941) | - |
| ● at AWG cables for main contacts | 2x (18 ... 2), 1x (18 ... 1) |
| display version for switching status | Slide switch |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RU2136-4DB0 |
| Reset function push-button (EF011942) | - |
| ● for auxiliary and control circuit | screw-type terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● between main and auxiliary circuit | 690 V |
| reference code according to IEC 81346-2 | F |
| number of poles for main current circuit | 3 |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| ● of the auxiliary and control contacts | M3 |
| Max. rated operation voltage Ue (EF007357) | 690 |
| ● between auxiliary and auxiliary circuit | 415 V |
| design of the thread of the connection screw | |
| full-load current (FLA) for 3-phase AC motor | |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| shock resistance according to IEC 60068-2-27 | 8g / 11 ms |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1 ... 25 mm²), 1x (1 ... 35 mm²) |
| ● for main contacts with screw-type terminals | 3 ... 4.5 N·m |
| operational current at AC-3e at 400 V rated value | 25 A |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| size of contactor can be combined company-specific | S2 |
| Region Specific PriceGroup / Headquarter Price Group | 41F / 41F |
| contact rating of auxiliary contacts according to UL | B600 / R300 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● for auxiliary contacts with screw-type terminals | 0.8 ... 1.2 N·m |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| arrangement of electrical connectors for main current circuit | Top and bottom |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 98 ATEX G 001 |
| ● for short-circuit protection of the auxiliary switch required | fuse gG: 6 A, quick: 10 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 15.10.2014 |
| product component removable terminal for auxiliary and control circuit | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| power loss [W] for rated value of the current at AC in hot operating state | 10.5 W |
| adjustable current response value current of the current-dependent overload release | 18 ... 25 A |
| maximum permissible voltage for safe isolation in networks with grounded star point | |
| design of the miniature circuit breaker for short-circuit protection of the auxiliary switch required | 6A (SCC less than equal to 0.5 kA; U less than equal to 260V) |
| General Product ApprovalFor use in hazardous locationsConfirmationFor use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherRailwayConfirmationSpecial Test Certificate | General Product Approval |
