3RT2924-5AG61

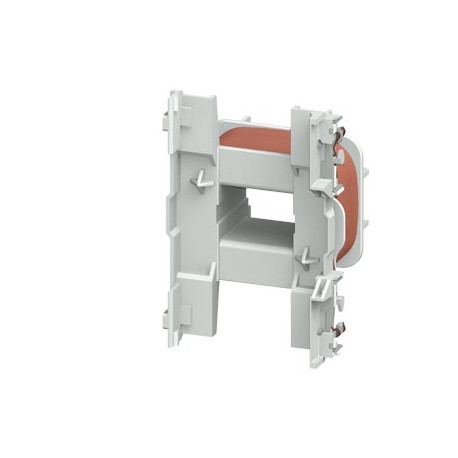

3RT2924-5AG61 SIEMENS Magnet coil for contactors 7.5 kW 100 V AC, 50 / 60 Hz, 110 V, 60Hz, for motor contact..
$0.00USD
4434 in stock
Key Specifications
:
EAN:4011209861411
UPC:662643918786
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209861411 |
| UPC | 662643918786 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| ● 1 at AC | |
| ● 2 at AC | |
| Confirmation | |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | L-R----- |
| ● at 50 Hz | 0.8 ... 1.1 |
| ● at 60 Hz | 0.85 ... 1.1 |
| Product Group | 5344 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85045000 |
| Product family | Solenoid coils |
| last modified: | 1/18/2021 |
| Net Weight (kg) | 0,074 Kg |
| Country of origin | Germany |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 48,00 x 51,50 x 73,00 |
| Product Description | Magnet coil for contactors 7.5 kW 100 V AC, 50 / 60 Hz, 110 V, 60Hz, for motor contactors, Size S0, Screw terminal |
| product designation | Magnet coil |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| — at 50 Hz rated value | 100 V |
| — at 60 Hz rated value | 110 V |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3RT2924-5AG61 |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of voltage of the control supply voltage | AC |
| power loss [V∙A] of magnet coil at AC typical | 8.5 VA |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['100', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['100', '110'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value of magnet coil at AC | |
| General Product ApprovalEMCDeclaration of ConformityMarine / ShippingConfirmationUK Declaration of ConformityMarine / ShippingotherConfirmation | General Product Approval |
Product Description
SIRIUS Innovations Coil contactors 7, 5KW AC 100V, 50/60HZ, 110V, 60HZ S0, screw connection. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
