3RT2645-1NF35

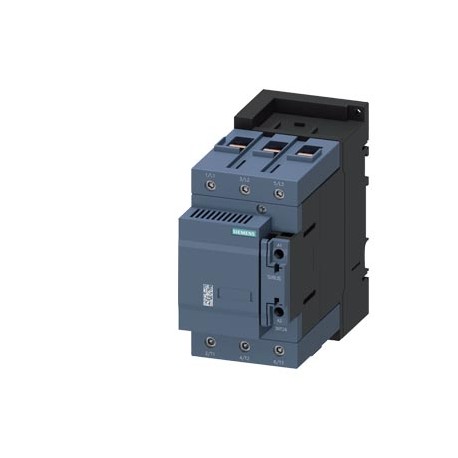

3RT2645-1NF35 SIEMENS Capacitor contactor, AC-6b 75 kVAr, / 400 V 2 NC, 50-60 Hz AC / 83-155 V DC 3-pole, Si..
$0.00USD
4100 in stock
Key Specifications
:VersionClassificationeClass627-37-10-06eClass7.127-37-10-06eClass827-37-10-06eClass927-37-10-06eClass9.127-37-10-06ETIM5EC001079ETIM6EC001079ETIM7EC001079ETIM8EC001079IDEA44764UNSPSC1539-12-15-29
EAN:4047621026367
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-10-06eClass7.127-37-10-06eClass827-37-10-06eClass927-37-10-06eClass9.127-37-10-06ETIM5EC001079ETIM6EC001079ETIM7EC001079ETIM8EC001079IDEA44764UNSPSC1539-12-15-29 | |
| EAN | 4047621026367 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | LBP----- |
| Product Group | 5370 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT26 contactors for capacitive loads (AC-6b), 3-pole |
| Net Weight (kg) | 1,900 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 150,00 x 160,00 x 100,00 |
| Product Description | Capacitor contactor, AC-6b 75 kVAr, / 400 V 2 NC, 50-60 Hz AC / 83-155 V DC 3-pole, Size S3 screw terminal |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3RT2645-1NF35 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Rated blind power at 400 V, 50 Hz (EF007044) | 75.0 |
| Rated control supply voltage Us at DC (EF003980) | ['83', '155'] |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['83.0', '155.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['83.0', '155.0'] |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 26.06.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
contactor, AC - 6 B, 75 kVAr /. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
