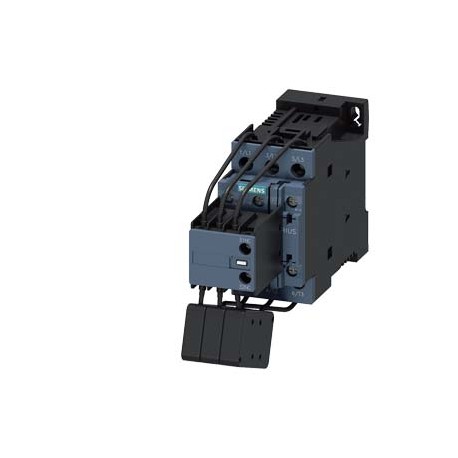

3RT2626-1BF45 - 3RT2626-1BF45 SIEMENS Capacitor contactor, AC-6b 20 kVAr, / 400 V 1 NO + 2 NC, 110 V DC 3-pole, Size S0 scre..
In Stock Hot Product

3RT2626-1BF45

3RT2626-1BF45 SIEMENS Capacitor contactor, AC-6b 20 kVAr, / 400 V 1 NO + 2 NC, 110 V DC 3-pole, Size S0 scre..

$0.00USD
3291 in stock
Key Specifications
:
EAN:4011209948327
UPC:804766160356
ETIM:5
Supplier Information
SIEMENS
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support

Technical Specifications

ParameterValue
EAN4011209948327
UPC804766160356
ETIM5
IDEA4
depth165 mm
otherDangerous Good
width45 mm
UNSPSC15
eClass6
height135 mm
— solid2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
● at DC10g / 5 ms, 7,5g / 10 ms
Group CodeR711
arcing time10 ... 10 ms
● at 24 V6 A
● at 60 V2 A
Metal FactorLBP-----
— stranded2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
● at 110 V1 A
● at 125 V0.9 A
● at 220 V0.3 A
● at 230 V6 A
● at 400 V3 A
Date5/14/2022Subject to change without notice© Copyright Siemens 2022
Product Group5336
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
Quantity Unit1 Piece
closing delay
opening delay
● at 40 °C1x 10 mm²
● at 60 °C2x 10 mm²
Commodity Code85364900
Product familySIRIUS 3RT26 contactors for capacitive loads (AC-6b), 3-pole
last modified:12/8/2021
● attachable0
Net Weight (kg)0,680 Kg
type of voltageDC
● rated value110 V
fastening methodscrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
product function
required spacing
Country of originGermany
mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
size of contactorS0
● initial value0.8
LKZ_FDB/ CatalogIDCC-IC10
Packaging Quantity1
insulation voltage
product brand nameSIRIUS
● during storage-55 ... +80 °C
● of magnet coilScrew-type terminals
Packaging Dimension54,00 x 148,00 x 172,00
Product DescriptionCapacitor contactor, AC-6b 20 kVAr, / 400 V 1 NO + 2 NC, 110 V DC 3-pole, Size S0 screw terminal
ambient temperature
product designationcapacitor contactors
● at 230 V maximum100 1/h
● at 240 V maximum100 1/h
● at 400 V maximum100 1/h
● at 480 V maximum100 1/h
● at 500 V maximum100 1/h
● at 600 V maximum100 1/h
● at 690 V maximum100 1/h
● during operation-25 ... +60 °C
● full-scale value1.1
— solid or stranded2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
● for main contacts
Product Lifecycle (PLM)PM300:Active Product
design of the fuse link
General Product ApprovalEMC
product type designation3RT26
surge voltage resistance
Declaration of ConformityTest Certificates
relative humidity minimum10 %
● instantaneous contact2
Export Control RegulationsAL : N / ECCN : N
● for auxiliary contacts
Standard lead time ex-works80 Day/Days
Surcharge for Raw MaterialsNone
no-load switching frequency
Package size unit of measureMM
control supply voltage at DC
operating frequency at AC-6b
● for main current circuitscrew-type terminals
Substance Prohibitance (Date)05/01/2014
type of electrical connection
● of main circuit rated value6 kV
shock resistance with sine pulse
operating reactive power at AC-6b
closing power of magnet coil at DC5.9 W
holding power of magnet coil at DC5.9 W
product extension auxiliary switchNo
● for grounded parts at the side10 mm
● at AWG cables for main contacts2x (16 ... 12), 2x (14 ... 8)
● of auxiliary circuit rated value6 kV
Article Number (Market Facing Number)3RT2626-1BF45
Voltage type for actuating (EF008242)DC
● for auxiliary and control circuitscrew-type terminals
WEEE (2012/19/EU) Take-Back ObligationYes
electrical endurance (switching cycles)200 000
number of NC contacts for main contacts0
number of NO contacts for main contacts3
reference code according to IEC 81346-2Q
shock resistance at rectangular impulse
● at contactor for auxiliary contactsScrew-type terminals
● at AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 2x 12
contact reliability of auxiliary contacts0.00000001
mechanical service life (switching cycles)
● with side-by-side mounting at the side10 mm
Rated blind power at 400 V, 50 Hz (EF007044)20.0
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
type of connectable conductor cross-sections
— finely stranded with core end processing2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
type of voltage of the control supply voltageDC
● mirror contact according to IEC 60947-4-1No
Rated control supply voltage Us at DC (EF003980)['-', '-']
control version of the switch operating mechanismStandard A1 - A2
operational current of auxiliary contacts at AC-15
operational current of auxiliary contacts at DC-13
Region Specific PriceGroup / Headquarter Price Group41B / 41B
contact rating of auxiliary contacts according to ULA600 / Q600
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
Rated control supply voltage Us at AC 50HZ (EF003978)-
Rated control supply voltage Us at AC 60HZ (EF003979)-
installation altitude at height above sea level maximum2 000 m
protection class IP on the front according to IEC 60529IP20
Type of electrical connection of main circuit (EF006819)Screw connection
operational current of auxiliary contacts at AC-12 maximum10 A
● of main circuit with degree of pollution 3 rated value690 V
● positively driven operation according to IEC 60947-5-1No
Number of main contacts as normally open contact (EF001374)3
Number of normally closed contacts as main contact (EF001375)0
● of the contactor with added auxiliary switch block typical3 000 000
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
● of auxiliary circuit with degree of pollution 3 rated value690 V
Number of auxiliary contacts as normally open contact (EF001376)1
● for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)
Number of auxiliary contacts as normally closed contact (EF001377)2
● at 230 V at 50/60 Hz at ambient temperature 60 °C rated value4 ... 11.5 kvar
● at 400 V at 50/60 Hz at ambient temperature 60 °C rated value7 ... 20 kvar
● at 500 V at 50/60 Hz at ambient temperature 60 °C rated value8 ... 25 kvar
● at 690 V at 50/60 Hz at ambient temperature 60 °C rated value11 ... 34 kvar
type of minimum connectable cross-section for main contacts at AC-6b
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2014
REACH Art. 33 Duty to inform according to the current list of candidatesReach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
AWG number as coded connectable conductor cross section for main contacts16 ... 8
operating range factor control supply voltage rated value of magnet coil at DC
operational current at AC-6b at 690 V at ambient temperature 60 °C rated value29 A
● for short-circuit protection of the main circuit with type of coordination 1 requiredgG: 63 A (690 V, 50 kA)
maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1400 V
General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingotherUK Declaration of ConformityType Test Certificates/Test ReportConfirmationotherDangerous GoodTransport InformationGeneral Product Approval

Product Description

CONTACTOR, AC-6B, 20KVAR/400V, 1NA+2NC, DC110V, 3POLOS, TAM. S0 SCREW TERMINALS. Manufactured to order. Non-Cancelable Non-Returnable.
