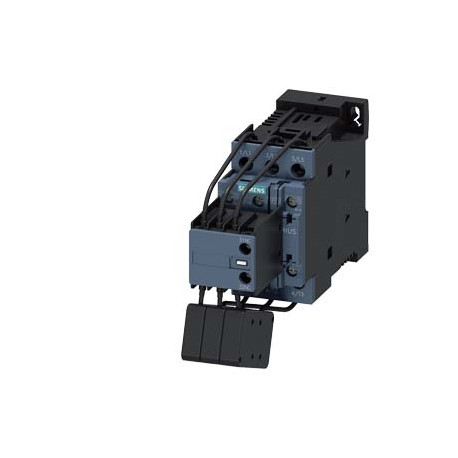

3RT2625-1BB45 SIEMENS Capacitor contactor, AC-6b 16.7 kVAr, / 400 V 1 NO + 2 NC, 24 V DC 3-pole, Size S0 scr..
$0.00USD
4861 in stock
Key Specifications
:
EAN:4011209948044
UPC:804766160264
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209948044 |
| UPC | 804766160264 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 165 mm |
| other | Dangerous Good |
| width | 45 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 135 mm |
| — solid | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● at DC | 10g / 5 ms, 7,5g / 10 ms |
| Group Code | R711 |
| arcing time | 10 ... 10 ms |
| ● at 24 V | 6 A |
| ● at 60 V | 2 A |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LBP----- |
| — stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● at 110 V | 1 A |
| ● at 125 V | 0.9 A |
| ● at 220 V | 0.3 A |
| ● at 230 V | 6 A |
| ● at 400 V | 3 A |
| Product Group | 5336 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| ● at 40 °C | 1x 6 mm² |
| ● at 60 °C | 1x 10 mm², 2x 6 mm² |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT26 contactors for capacitive loads (AC-6b), 3-pole |
| last modified: | 12/8/2021 |
| ● attachable | 0 |
| Net Weight (kg) | 0,725 Kg |
| type of voltage | DC |
| ● rated value | 24 V |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| size of contactor | S0 |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● of magnet coil | Screw-type terminals |
| Packaging Dimension | 15,00 x 175,00 x 55,00 |
| Product Description | Capacitor contactor, AC-6b 16.7 kVAr, / 400 V 1 NO + 2 NC, 24 V DC 3-pole, Size S0 screw terminal |
| ambient temperature | |
| product designation | capacitor contactors |
| ● at 230 V maximum | 180 1/h |
| ● at 240 V maximum | 180 1/h |
| ● at 400 V maximum | 180 1/h |
| ● at 480 V maximum | 180 1/h |
| ● at 500 V maximum | 180 1/h |
| ● at 600 V maximum | 180 1/h |
| ● at 690 V maximum | 150 1/h |
| ● during operation | -25 ... +60 °C |
| ● full-scale value | 1.1 |
| — solid or stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● for main contacts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| General Product Approval | EMC |
| product type designation | 3RT26 |
| surge voltage resistance | |
| Declaration of Conformity | Test Certificates |
| relative humidity minimum | 10 % |
| ● instantaneous contact | 2 |
| Export Control Regulations | AL : N / ECCN : N |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| control supply voltage at DC | |
| operating frequency at AC-6b | |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 05/01/2014 |
| type of electrical connection | |
| ● of main circuit rated value | 6 kV |
| shock resistance with sine pulse | |
| operating reactive power at AC-6b | |
| closing power of magnet coil at DC | 5.9 W |
| holding power of magnet coil at DC | 5.9 W |
| product extension auxiliary switch | No |
| ● for grounded parts at the side | 10 mm |
| ● at AWG cables for main contacts | 2x (16 ... 12), 2x (14 ... 8) |
| ● of auxiliary circuit rated value | 6 kV |
| Article Number (Market Facing Number) | 3RT2625-1BB45 |
| Voltage type for actuating (EF008242) | DC |
| ● at DC at 24 V maximum permissible | 16 mA |
| ● for auxiliary and control circuit | screw-type terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| electrical endurance (switching cycles) | 200 000 |
| number of NC contacts for main contacts | 0 |
| number of NO contacts for main contacts | 3 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| ● at contactor for auxiliary contacts | Screw-type terminals |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| contact reliability of auxiliary contacts | 0.00000001 |
| mechanical service life (switching cycles) | |
| ● with side-by-side mounting at the side | 10 mm |
| Rated blind power at 400 V, 50 Hz (EF007044) | 16.7 |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| type of voltage of the control supply voltage | DC |
| ● mirror contact according to IEC 60947-4-1 | No |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| control version of the switch operating mechanism | Standard A1 - A2 |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| operational current of auxiliary contacts at AC-12 maximum | 10 A |
| ● of main circuit with degree of pollution 3 rated value | 690 V |
| ● positively driven operation according to IEC 60947-5-1 | No |
| Number of main contacts as normally open contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| ● of the contactor with added auxiliary switch block typical | 3 000 000 |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| residual current of the electronics for control with signal <0> | |
| ● of auxiliary circuit with degree of pollution 3 rated value | 690 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| ● at 230 V at 50/60 Hz at ambient temperature 60 °C rated value | 3 ... 9.6 kvar |
| ● at 400 V at 50/60 Hz at ambient temperature 60 °C rated value | 6 ... 16.7 kvar |
| ● at 500 V at 50/60 Hz at ambient temperature 60 °C rated value | 7 ... 21 kvar |
| ● at 690 V at 50/60 Hz at ambient temperature 60 °C rated value | 10 ... 29 kvar |
| type of minimum connectable cross-section for main contacts at AC-6b | |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| AWG number as coded connectable conductor cross section for main contacts | 16 ... 8 |
| operating range factor control supply voltage rated value of magnet coil at DC | |
| operational current at AC-6b at 690 V at ambient temperature 60 °C rated value | 24 A |
| ● for short-circuit protection of the main circuit with type of coordination 1 required | gG: 50 A (690 V, 50 kA) |
| maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1 | 400 V |
