3RT2526-2BB40

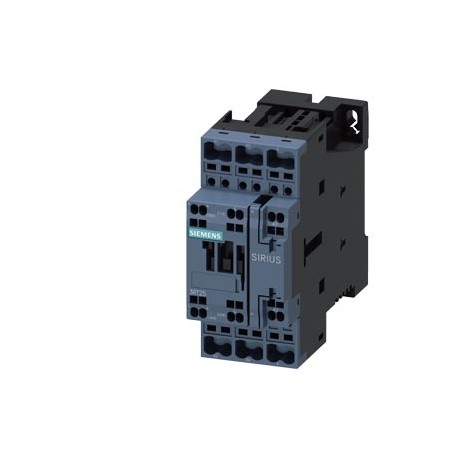

3RT2526-2BB40 SIEMENS Power contactor, AC-3 25 A, 11 kW / 400 V 2 NO + 2 NC 24 V DC 4-pole size S0 Spring-ty..
$0.00USD
4399 in stock
Key Specifications
:
EAN:4011209834897
UPC:662643918342
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209834897 |
| UPC | 662643918342 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 107 mm |
| other | Dangerous Good |
| width | 61 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 102 mm |
| — solid | 2x (1 ... 10 mm²) |
| ● at AC | 5 000 1/h |
| ● at DC | 10g / 5 ms, 7,5g / 10 ms |
| Group Code | R711 |
| arcing time | 10 ... 10 ms |
| — upwards | 0 mm |
| Confirmation | |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LDP----- |
| — forwards | 0 mm |
| Product Group | 5336 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT25 contactors, 4-pole, 2 NO + 2 NC |
| last modified: | 8/26/2021 |
| Net Weight (kg) | 0,721 Kg |
| — at the side | 0 mm |
| ● rated value | 24 V |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| product extension | |
| size of contactor | S0 |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| ● of magnet coil | Spring-type terminals |
| Packaging Dimension | 76,00 x 112,00 x 131,00 |
| Product Description | Power contactor, AC-3 25 A, 11 kW / 400 V 2 NO + 2 NC 24 V DC 4-pole size S0 Spring-type terminals 1 NO + 1 NC integrated |
| ambient temperature | |
| operational current | |
| product designation | contactor |
| ● auxiliary switch | Yes |
| ● during operation | -25 ... +60 °C |
| ● full-scale value | 1.1 |
| — solid or stranded | 2x (1 ... 10 mm²) |
| ● for main contacts | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| — at 24 V rated value | 35 A |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 6 A |
| ● at 60 V rated value | 6 A |
| ● at AC-1 up to 690 V | |
| General Product Approval | EMC |
| product type designation | 3RT25 |
| surge voltage resistance | |
| — at 110 V rated value | 4.5 A |
| — at 220 V rated value | 1 A |
| — at 440 V rated value | 0.4 A |
| ● at 110 V rated value | 3 A |
| ● at 125 V rated value | 2 A |
| ● at 220 V rated value | 1 A |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 3 A |
| ● at 500 V rated value | 2 A |
| ● at 600 V rated value | 0.15 A |
| ● at 690 V rated value | 1 A |
| ● of contactor typical | 10 000 000 |
| relative humidity minimum | 10 % |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| Package size unit of measure | MM |
| Type Examination Certificate | |
| control supply voltage at DC | |
| operational current at AC-15 | |
| operational current at DC-12 | |
| operational current at DC-13 | |
| ● at AC-2 at AC-3 at 400 V | |
| ● for main current circuit | spring-loaded terminals |
| Substance Prohibitance (Date) | 10/01/2009 |
| type of electrical connection | |
| ● at 1 current path at DC-1 | |
| — per NC contact rated value | 20 A |
| — per NO contact rated value | 25 A |
| ● with side-by-side mounting | |
| operating power at AC-2 at AC-3 | |
| ● of main circuit rated value | 6 kV |
| shock resistance with sine pulse | |
| closing power of magnet coil at DC | 5.9 W |
| holding power of magnet coil at DC | 5.9 W |
| operating frequency at AC-1 maximum | 1 000 1/h |
| yielded mechanical performance [hp] | |
| ● at AWG cables for main contacts | 2x (18 ... 8) |
| operational current at AC-12 maximum | 10 A |
| ● of auxiliary circuit rated value | 6 kV |
| Article Number (Market Facing Number) | 3RT2526-2BB40 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | DC |
| ● at 1 current path at DC-3 at DC-5 | |
| ● for auxiliary and control circuit | spring-loaded terminals |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — at 24 V per NC contact rated value | 20 A |
| — at 24 V per NO contact rated value | 20 A |
| — with type of assignment 2 required | gG: 35 A (690 V, 50 kA) |
| number of NC contacts for main contacts | 2 |
| number of NO contacts for main contacts | 2 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| — at 110 V per NC contact rated value | 1.25 A |
| — at 110 V per NO contact rated value | 2.5 A |
| — at 220 V per NC contact rated value | 0.5 A |
| — at 220 V per NO contact rated value | 1 A |
| — at 440 V per NC contact rated value | 0.045 A |
| — at 440 V per NO contact rated value | 0.09 A |
| ● at 230 V per NC contact rated value | 5.5 kW |
| ● at 230 V per NO contact rated value | 5.5 kW |
| ● at 400 V per NC contact rated value | 7.5 kW |
| ● at 400 V per NO contact rated value | 11 kW |
| ● at contactor for auxiliary contacts | Spring-type terminals |
| number of poles for main current circuit | 4 |
| — with type of coordination 1 required | gG: 63 A (690 V, 100 kA) |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 14) |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| mechanical service life (switching cycles) | |
| ● with 2 current paths in series at DC-1 | |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1 ... 6 mm²) |
| type of voltage of the control supply voltage | DC |
| — at ambient temperature 40 °C rated value | 40 A |
| — at ambient temperature 60 °C rated value | 35 A |
| ● mirror contact according to IEC 60947-4-1 | Yes |
| Rated operation power at AC-3, 400 V (EF001364) | 11.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| — finely stranded without core end processing | 2x (1 ... 6 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| ● for 3-phase AC motor at 460/480 V rated value | 15 hp |
| ● for single-phase AC motor at 230 V rated value | 3 hp |
| ● with 2 current paths in series at DC-3 at DC-5 | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 40 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 25 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● for short-circuit protection of the main circuit | |
| ● limited to 1 s switching at zero current maximum | 200 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 200 A; Use minimum cross-section acc. to AC-1 rated value |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| ● limited to 10 s switching at zero current maximum | 200 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 128 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 106 A; Use minimum cross-section acc. to AC-1 rated value |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| ● of main circuit with degree of pollution 3 rated value | 690 V |
| ● positively driven operation according to IEC 60947-5-1 | No |
| Number of main contacts as normally open contact (EF001374) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 2 |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| ● of auxiliary circuit with degree of pollution 3 rated value | 690 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| minimum cross-section in main circuit at maximum AC-1 rated value | 10 mm² |
| short-time withstand current in cold operating state up to 40 °C | |
| ● for short-circuit protection of the auxiliary switch required | fuse gG: 10 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| number of NC contacts for auxiliary contacts instantaneous contact | 1 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| AWG number as coded connectable conductor cross section for main contacts | 18 ... 8 |
| operating range factor control supply voltage rated value of magnet coil at DC | |
| ● of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| power loss [W] at AC-3 at 400 V for rated value of the operational current per conductor | 1.6 W |
| maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1 | 400 V |
| General Product ApprovalEMCConfirmationFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesMarine / ShippingType Examination CertificateUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherDangerous GoodConfirmationTransport Information | General Product Approval |
