3RT2346-1AP00-4AA0

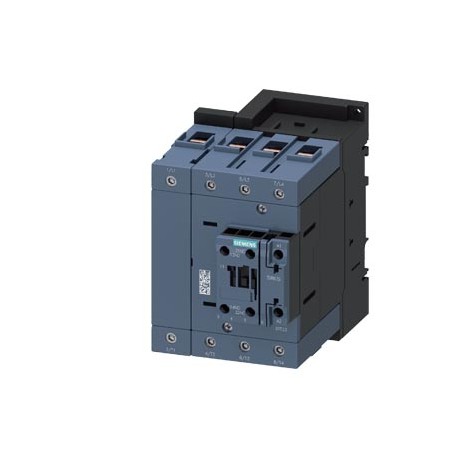

3RT2346-1AP00-4AA0 SIEMENS Contactor, AC-3, 95 A/45 kW/400 V, S3, 4-pole, 230 V AC/50 Hz, 1 NO+1 NC, screw t..
$0.00USD
3980 in stock
Key Specifications
:Confirmation
EAN:4047621027784
EMC:Functional Safety/Safety of Machinery
UPC:Not available
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621027784 |
| EMC | Functional Safety/Safety of Machinery |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 152 mm |
| width | 70 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 140 mm |
| — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| ● at AC | 6.7 g / 5 ms, 4.0 g / 10 ms |
| ● solid | 2.5 ... 16 mm² |
| Group Code | R711 |
| arcing time | 10 ... 20 ms |
| — upwards | 10 mm |
| ● at AC-1 | |
| ● at AC-3 | |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LEO----- |
| — forwards | 20 mm |
| — required | gB: 200 A (750 V, 25 kA) |
| — stranded | 2x (6 ... 16 mm²), 2x (10 ... 50 mm²), 1x (10 ... 70 mm²) |
| ● at 50 Hz | 0.8 ... 1.1 |
| ● stranded | 6 ... 70 mm² |
| Product Group | 5370 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT.3 contactors, 4-pole, up to 525 A |
| last modified: | 3/18/2022 |
| ● attachable | 2 |
| Net Weight (kg) | 2,060 Kg |
| operating power | |
| type of voltage | AC |
| — at the side | 0 mm |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| product extension | |
| size of contactor | S3 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| ● of magnet coil | Screw-type terminals |
| Packaging Dimension | 135,00 x 145,00 x 175,00 |
| Product Description | Contactor, AC-3, 95 A/45 kW/400 V, S3, 4-pole, 230 V AC/50 Hz, 1 NO+1 NC, screw terminal |
| ambient temperature | |
| operational current | |
| product designation | Contactor |
| ● auxiliary switch | Yes |
| ● during operation | -25 ... +60 °C |
| Transport Information | |
| — solid or stranded | 2x (2.5 ... 16 mm²), 2x (6 ... 16 mm²), 2x (10 ... 50 mm²), 1x (10 ... 70 mm²) |
| ● for main contacts | |
| ● solid or stranded | 4 ... 70 mm² |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 6 A |
| ● at 60 V rated value | 6 A |
| product type designation | 3RT23 |
| surge voltage resistance | |
| — at 400 V rated value | 95 A |
| — at 690 V rated value | 58 A |
| — at 750 V rated value | 78 A; minimum Electrical Lifetime -50% according to 690V |
| ● at 110 V rated value | 3 A |
| ● at 125 V rated value | 2 A |
| ● at 220 V rated value | 1 A |
| ● at 230 V rated value | 6 A |
| ● at 400 V rated value | 3 A |
| ● at 50 Hz rated value | 230 V |
| ● at 500 V rated value | 2 A |
| ● at 600 V rated value | 0.15 A |
| ● at 690 V rated value | 1 A |
| ● of contactor typical | 10 000 000 |
| relative humidity minimum | 10 % |
| ● instantaneous contact | 1 |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| operational current at AC-15 | |
| operational current at DC-12 | |
| operational current at DC-13 | |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 09/01/2017 |
| type of electrical connection | |
| ● with side-by-side mounting | |
| ● of main circuit rated value | 8 kV |
| proportion of dangerous failures | |
| shock resistance with sine pulse | |
| ● at AC in hot operating state | 27.2 W |
| ● at AC-3 at 400 V rated value | 45 kW |
| ● at AC-4 at 400 V rated value | 80 A |
| product function bus communication | No |
| operating frequency at AC-1 maximum | 900 1/h |
| ● at AWG cables for main contacts | 2x (10 ... 1/0), 1x (10 ... 2) |
| operational current at AC-12 maximum | 10 A |
| ● of auxiliary circuit rated value | 6 kV |
| Article Number (Market Facing Number) | 3RT2346-1AP00-4AA0 |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | AC |
| ● for auxiliary and control circuit | screw-type terminals |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG: 160 A (690 V, 100 kA), aM: 100 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA) |
| number of NO contacts for main contacts | 4 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| ● at contactor for auxiliary contacts | Screw-type terminals |
| number of poles for main current circuit | 4 |
| operational current at AC-6a up to 750 V | |
| — with type of coordination 1 required | gG: 250 A (690 V, 100 kA), aM: 160 A (690 V, 100 kA), BS88: 200 A (415 V, 80 kA) |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| product function short circuit protection | No |
| ● at AC in hot operating state per pole | 6.8 W |
| mechanical service life (switching cycles) | |
| apparent holding power of magnet coil at AC | |
| apparent pick-up power of magnet coil at AC | |
| ● for current peak value n=20 rated value | 58 A |
| ● for current peak value n=30 rated value | 56.3 A |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (2.5 ... 35 mm²), 1x (2.5 ... 50 mm²) |
| ● finely stranded with core end processing | 2.5 ... 50 mm² |
| power loss [W] for rated value of the current | |
| type of voltage of the control supply voltage | AC |
| ● mirror contact according to IEC 60947-4-1 | Yes |
| ● with low demand rate according to SN 31920 | 40 % |
| Rated operation power at AC-3, 400 V (EF001364) | 45.0 |
| Rated operation power at AC-4, 400 V (EF008496) | 45.0 |
| ● with high demand rate according to SN 31920 | 73 % |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| control version of the switch operating mechanism | Standard A1 - A2 |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 130 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 95 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 80 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / P600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● for short-circuit protection of the main circuit | |
| ● limited to 1 s switching at zero current maximum | 1 511 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 1 511 A; Use minimum cross-section acc. to AC-1 rated value |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| connectable conductor cross-section for main contacts | |
| inductive power factor with closing power of the coil | |
| ● limited to 10 s switching at zero current maximum | 1 511 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 610 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 486 A; Use minimum cross-section acc. to AC-1 rated value |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| inductive power factor with the holding power of the coil | |
| — up to 690 V at ambient temperature 40 °C rated value | 110 A |
| — up to 690 V at ambient temperature 60 °C rated value | 100 A |
| connectable conductor cross-section for auxiliary contacts | |
| ● of main circuit with degree of pollution 3 rated value | 690 V |
| ● positively driven operation according to IEC 60947-5-1 | No |
| Number of main contacts as normally open contact (EF001374) | 4 |
| Number of normally closed contacts as main contact (EF001375) | - |
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value | 110 A |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| minimum cross-section in main circuit at maximum AC-1 rated value | 35 mm² |
| short-time withstand current in cold operating state up to 40 °C | |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (690 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value of magnet coil at AC | |
| ● of the auxiliary and control circuit with degree of pollution 3 rated value | 690 V |
| operating apparent power at AC-6a up to 750 V for current peak value n=20 rated value | 75 kVA |
| operating apparent power at AC-6a up to 750 V for current peak value n=30 rated value | 73.1 kVA |
| design of the miniature circuit breaker for short-circuit protection of the auxiliary switch required | gG: 10 A (230 V, 400 A) |
| General Product ApprovalConfirmationKCEMCFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesMarine / ShippingType Examination CertificateUK Declaration of ConformityType Test Certificates/Test ReportMarine / ShippingotherRailwayConfirmationVibration and ShockDangerous GoodTransport Information | General Product Approval |
Product Description
contactor, 4S, AC-3, xx kW/400. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
