3RT2325-1AV00

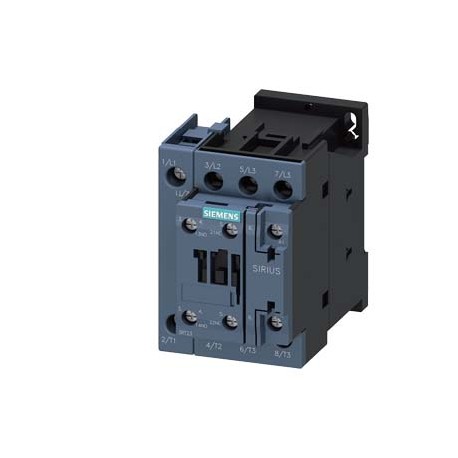

3RT2325-1AV00 SIEMENS Contactor, 4 NO, AC-1: 35 A 400 V AC, 50 Hz, 4-pole, 4 NO, Size S0, Screw terminal 1 N..
$0.00USD
3677 in stock
Key Specifications
:Value
Modular version (EF001126):true
Rated operation power NEMA (EF011960):-
Voltage type for actuating (EF008242):AC
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| Modular version (EF001126) | true |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | AC |
| Rated operation power at AC-3, 400 V (EF001364) | 7.5 |
| Rated operation power at AC-4, 400 V (EF008496) | 7.5 |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 35 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 15.5 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 15.5 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 4 |
| Number of normally closed contacts as main contact (EF001375) | - |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
