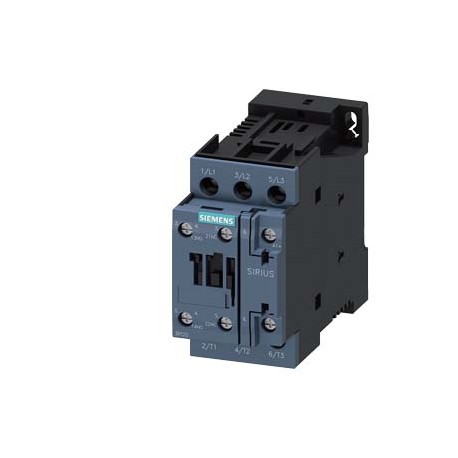

3RT2026-1BB40 SIEMENS power contactor, AC-3 25 A, 11 kW / 400 V 1 NO + 1 NC, 24 V DC 3-pole, Size S0 screw t..
$0.00USD
3610 in stock
Key Specifications
:Confirmation
EAN:4011209790131
EMC:Functional Safety/Safety of Machinery
UPC:662643913781
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209790131 |
| EMC | Functional Safety/Safety of Machinery |
| UPC | 662643913781 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 107 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 85 mm |
| — solid | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● at AC | 5 000 1/h |
| ● at DC | 10g / 5 ms, 7,5g / 10 ms |
| ● solid | 1 ... 10 mm² |
| Group Code | R711 |
| arcing time | 10 ... 10 ms |
| — upwards | 10 mm |
| ● at AC-1 | |
| ● at AC-3 | |
| Date5/2/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LDP----- |
| — forwards | 10 mm |
| ● at AC-3e | |
| ● at AC-6a | |
| ● stranded | 1 ... 10 mm² |
| Miscellaneous | |
| Product Group | 5336 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT contactors, 3-pole, up to 250 kW |
| last modified: | 2/15/2022 |
| Net Weight (kg) | 0,600 Kg |
| operating power | |
| — at the side | 0 mm |
| ● rated value | 24 V |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| product function | |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| Test Certificates | Marine / Shipping |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| operating voltage | |
| product extension | |
| size of contactor | S0 |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| ● of magnet coil | Screw-type terminals |
| Packaging Dimension | 54,00 x 92,00 x 115,50 |
| Product Description | power contactor, AC-3 25 A, 11 kW / 400 V 1 NO + 1 NC, 24 V DC 3-pole, Size S0 screw terminal |
| ambient temperature | |
| operating frequency | |
| operational current | |
| product designation | Power contactor |
| suitability for use | |
| ● at AC-1 maximum | 1 000 1/h |
| ● at AC-2 maximum | 750 1/h |
| ● at AC-3 maximum | 750 1/h |
| ● at AC-4 maximum | 250 1/h |
| ● at AC-3e maximum | 750 1/h |
| ● auxiliary switch | Yes |
| ● during operation | -25 ... +60 °C |
| ● full-scale value | 1.1 |
| — solid or stranded | 2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²) |
| ● for main contacts | |
| ● solid or stranded | 0.5 ... 2.5 mm² |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| — at 24 V rated value | 35 A |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 6 A |
| ● at 60 V rated value | 6 A |
| product type designation | 3RT2 |
| surge voltage resistance | |
| — at 110 V rated value | 4.5 A |
| — at 220 V rated value | 1 A |
| — at 230 V rated value | 5.5 kW |
| — at 400 V rated value | 25 A |
| — at 440 V rated value | 0.4 A |
| — at 500 V rated value | 18 A |
| — at 600 V rated value | 0.25 A |
| — at 690 V rated value | 13 A |
| ● at 110 V rated value | 3 A |
| ● at 125 V rated value | 2 A |
| ● at 220 V rated value | 1 A |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 9 A |
| ● at 480 V rated value | 21 A |
| ● at 500 V rated value | 2 A |
| ● at 600 V rated value | 0.15 A |
| ● at 690 V rated value | 9 A |
| ● for 3-phase AC motor | |
| ● of contactor typical | 10 000 000 |
| relative humidity minimum | 10 % |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| operational current at AC-15 | |
| operational current at DC-12 | |
| operational current at DC-13 | |
| — at 110/120 V rated value | 2 hp |
| — at 200/208 V rated value | 5 hp |
| — at 220/230 V rated value | 7.5 hp |
| — at 460/480 V rated value | 15 hp |
| — at 575/600 V rated value | 20 hp |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 10/01/2009 |
| type of electrical connection | |
| ● at 1 current path at DC-1 | |
| ● for single-phase AC motor | |
| ● with side-by-side mounting | |
| ● at AC-3 rated value maximum | 690 V |
| ● of main circuit rated value | 6 kV |
| proportion of dangerous failures | |
| shock resistance with sine pulse | |
| ● at AC in hot operating state | 4.8 W |
| ● at AC-3e rated value maximum | 690 V |
| ● at AC-4 at 400 V rated value | 15.5 A |
| ● safety-related switching OFF | Yes |
| operating apparent power at AC-6a | |
| closing power of magnet coil at DC | 5.9 W |
| holding power of magnet coil at DC | 5.9 W |
| yielded mechanical performance [hp] | |
| ● at AWG cables for main contacts | 2x (16 ... 12), 2x (14 ... 8) |
| operational current at AC-12 maximum | 10 A |
| ● at AC-5a up to 690 V rated value | 35.2 A |
| ● at AC-5b up to 400 V rated value | 20.7 A |
| ● of auxiliary circuit rated value | 6 kV |
| Article Number (Market Facing Number) | 3RT2026-1BB40 |
| Rated operation power NEMA (EF011960) | 11.03248125 |
| Voltage type for actuating (EF008242) | DC |
| ● at 1 current path at DC-3 at DC-5 | |
| ● for auxiliary and control circuit | screw-type terminals |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG: 35A (690V, 100kA), aM: 20A (690V, 100kA), BS88: 35A (415V, 80kA) |
| ● without load current share typical | 5.9 W |
| number of NO contacts for main contacts | 3 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| ● at contactor for auxiliary contacts | Screw-type terminals |
| number of poles for main current circuit | 3 |
| — with type of coordination 1 required | gG: 100 A (690 V, 100 kA), aM: 50 A (690 V, 100 kA), BS88: 100 A (415 V, 80 kA) |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| ● at AC in hot operating state per pole | 1.6 W |
| mechanical service life (switching cycles) | |
| ● with 2 current paths in series at DC-1 | |
| ● with 3 current paths in series at DC-1 | |
| full-load current (FLA) for 3-phase AC motor | |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| ● finely stranded with core end processing | 1 ... 10 mm² |
| power loss [W] for rated value of the current | |
| type of voltage of the control supply voltage | DC |
| ● mirror contact according to IEC 60947-4-1 | Yes |
| ● with low demand rate according to SN 31920 | 40 % |
| Rated operation power at AC-3, 400 V (EF001364) | 11.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| ● with high demand rate according to SN 31920 | 73 % |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| control version of the switch operating mechanism | Standard A1 - A2 |
| ● with 2 current paths in series at DC-3 at DC-5 | |
| ● with 3 current paths in series at DC-3 at DC-5 | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 40 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 25 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 15.5 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / P600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● for short-circuit protection of the main circuit | |
| ● limited to 1 s switching at zero current maximum | 375 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 299 A; Use minimum cross-section acc. to AC-1 rated value |
| B10 value with high demand rate according to SN 31920 | 450 000 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| connectable conductor cross-section for main contacts | |
| ● limited to 10 s switching at zero current maximum | 200 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 128 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 106 A; Use minimum cross-section acc. to AC-1 rated value |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| — up to 230 V for current peak value n=20 rated value | 20.2 A |
| — up to 230 V for current peak value n=30 rated value | 13.5 A |
| — up to 400 V for current peak value n=20 rated value | 20.2 A |
| — up to 400 V for current peak value n=30 rated value | 13.5 A |
| — up to 500 V for current peak value n=20 rated value | 20.2 A |
| — up to 500 V for current peak value n=30 rated value | 13.5 A |
| — up to 690 V for current peak value n=20 rated value | 12.9 A |
| — up to 690 V for current peak value n=30 rated value | 13 A |
| ● up to 230 V for current peak value n=20 rated value | 8 kVA |
| ● up to 230 V for current peak value n=30 rated value | 5.3 kVA |
| ● up to 400 V for current peak value n=20 rated value | 13.9 kVA |
| ● up to 400 V for current peak value n=30 rated value | 9.3 kVA |
| ● up to 500 V for current peak value n=20 rated value | 17.4 kVA |
| ● up to 500 V for current peak value n=30 rated value | 11.6 kVA |
| ● up to 690 V for current peak value n=20 rated value | 15.4 kVA |
| ● up to 690 V for current peak value n=30 rated value | 15.5 kVA |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| — up to 690 V at ambient temperature 40 °C rated value | 40 A |
| — up to 690 V at ambient temperature 60 °C rated value | 35 A |
| connectable conductor cross-section for auxiliary contacts | |
| ● of main circuit with degree of pollution 3 rated value | 690 V |
| Number of main contacts as normally open contact (EF001374) | 3 |
| operating power for approx. 200000 operating cycles at AC-4 | |
| Number of normally closed contacts as main contact (EF001375) | - |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value | 40 A |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| operational current for approx. 200000 operating cycles at AC-4 | |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| ● of auxiliary circuit with degree of pollution 3 rated value | 690 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| minimum cross-section in main circuit at maximum AC-1 rated value | 10 mm² |
| short-time withstand current in cold operating state up to 40 °C | |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| number of NC contacts for auxiliary contacts instantaneous contact | 1 |
| number of NO contacts for auxiliary contacts instantaneous contact | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value of magnet coil at DC | |
| ● of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1 | 400 V |
| General Product ApprovalConfirmationKCEMCFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesType Examination CertificateUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportTest CertificatesMarine / ShippingMiscellaneousMarine / ShippingotherDangerous GoodEnvironmental ConfirmationsConfirmationTransport Information | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
