3RT2016-2GG21

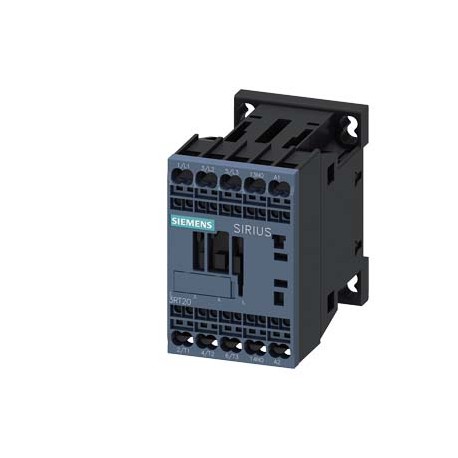

3RT2016-2GG21 SIEMENS Power contactor, AC-3 9 A, 4 kW / 400 V 1 NO, 110 V AC, 50 / 60 Hz 3-pole, Size S00 Sp..
$0.00USD
4699 in stock
Key Specifications
:Value
EAN:4011209828438
UPC:Not available
Depth:73 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209828438 |
| UPC | Not available |
| Depth | 73 mm |
| Width | 45 mm |
| Height | 70 mm |
| B10 value | |
| — solid | 2x (0.5 ... 4 mm²) |
| ● at AC | 6,7g / 5 ms, 4,2g / 10 ms |
| ● solid | 0.5 ... 4 mm² |
| Group Code | R711 |
| Arcing time | 10 ... 15 ms |
| Price Group | 41B |
| — upwards | 10 mm |
| ● at AC-1 | |
| ● at AC-3 | |
| ● maximum | 2 000 m |
| Confirmation | |
| Metal Factor | LDO----- |
| — forwards | 10 mm |
| ● at 50 Hz | 0.8 ... 1.1 |
| ● at 60 Hz | 0.85 ... 1.1 |
| ● at AC-6a | |
| ● stranded | 0.5 ... 4 mm² |
| Closing delay | |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715 |
| Opening delay | |
| Product Group | 5330 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/13/2020 |
| Net Weight (kg) | 0,310 Kg |
| Operating power | |
| — at the side | 0 mm |
| Product function | |
| Required spacing | |
| Country of origin | Germany |
| Operating current | |
| Operating voltage | |
| Product extension | |
| Size of contactor | S00 |
| Failure rate [FIT] | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| Ambient temperature | |
| Operating frequency | |
| Packaging Dimension | 50,00 x 73,50 x 77,50 |
| Product Description | Power contactor, AC-3 9 A, 4 kW / 400 V 1 NO, 110 V AC, 50 / 60 Hz 3-pole, Size S00 Spring-type terminal Full-wave rectifier integrated |
| Product designation | Power contactor |
| ● at AC-1 maximum | 1 000 1/h |
| ● at AC-2 maximum | 750 1/h |
| ● at AC-3 maximum | 750 1/h |
| ● at AC-4 maximum | 250 1/h |
| ● Auxiliary switch | Yes |
| ● at AC-1 at 400 V | |
| ● during operation | -25 ... +60 °C |
| ● for main contacts | |
| ● mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| ● for grounded parts | |
| Design of the fuse link | |
| Product Lifecycle (PLM) | PM300:Active Product |
| — at 24 V rated value | 20 A |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 6 A |
| ● at 60 V rated value | 6 A |
| General Product Approval | EMC |
| Product type designation | 3RT2 |
| Surge voltage resistance | |
| — at 110 V rated value | 2.1 A |
| — at 220 V rated value | 0.8 A |
| — at 230 V rated value | 2.2 kW |
| — at 400 V rated value | 9 A |
| — at 440 V rated value | 0.6 A |
| — at 500 V rated value | 7.7 A |
| — at 600 V rated value | 0.6 A |
| — at 690 V rated value | 6.7 A |
| ● at 110 V rated value | 3 A |
| ● at 125 V rated value | 2 A |
| ● at 220 V rated value | 1 A |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 4.1 A |
| ● at 480 V rated value | 7.6 A |
| ● at 50 Hz rated value | 110 V |
| ● at 500 V rated value | 2 A |
| ● at 60 Hz rated value | 110 V |
| ● at 600 V rated value | 0.15 A |
| ● at 690 V rated value | 3.3 A |
| ● of contactor typical | 30 000 000 |
| ● Side-by-side mounting | Yes |
| ● instantaneous contact | 1 |
| Export Control Regulations | ECCN : EAR99 / AL : N |
| Modular version (EF001126) | true |
| Operating current at AC-15 | |
| Operating current at DC-12 | |
| Operating current at DC-13 | |
| ● for auxiliary contacts | |
| No-load switching frequency | |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Control supply voltage at AC | |
| Package size unit of measure | MM |
| Type Examination Certificate | |
| — at 110/120 V rated value | 0.33 hp |
| — at 200/208 V rated value | 2 hp |
| — at 220/230 V rated value | 3 hp |
| — at 460/480 V rated value | 5 hp |
| — at 575/600 V rated value | 7.5 hp |
| — single or multi-stranded | 2x (0,5 ... 4 mm²) |
| ● for three-phase AC motor | |
| ● single or multi-stranded | 0.5 ... 4 mm² |
| ● at 1 current path at DC-1 | |
| ● for single-phase AC motor | |
| Design of the surge suppressor | with full-wave rectification |
| Product Dimensions (W x L x H) | Not available |
| ● with side-by-side mounting | |
| ● at AC-3 rated value maximum | 690 V |
| ● at maximum AC-1 rated value | 4 mm² |
| ● of main circuit rated value | 6 kV |
| Shock resistance with sine pulse | |
| ● at AC in hot operating state | 2.1 W |
| ● at AC-2 at 400 V rated value | 9 A |
| ● at AC-4 at 400 V rated value | 8.5 A |
| Operating apparent output at AC-6a | |
| Operating current at AC-12 maximum | 10 A |
| Protection against electrical shock | finger-safe |
| Yielded mechanical performance [hp] | |
| ● at AC-5a up to 690 V rated value | 19.4 A |
| ● at AC-5b up to 400 V rated value | 7.4 A |
| ● of auxiliary circuit rated value | 6 kV |
| ● protection class IP on the front | IP20 |
| Article Number (Market Facing Number) | 3RT2016-2GG21 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| Minimum cross-section in main circuit | |
| Rated operation power NEMA (EF011960) | 3.67749375 |
| Reference code acc. to DIN EN 81346-2 | Q |
| Voltage type for actuating (EF008242) | AC |
| ● at 1 current path at DC-3 at DC-5 | |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG: 20A (690V,100kA), aM: 16A (690V, 100kA), BS88: 20A (415V, 80kA) |
| Number of NO contacts for main contacts | 3 |
| Shock resistance at rectangular impulse | |
| ● Protection class IP of the terminal | IP20 |
| ● at AWG conductors for main contacts | 2x (20 ... 12) |
| Number of poles for main current circuit | 3 |
| — with type of coordination 1 required | gG: 35A (690V,100kA), aM: 20A (690V,100kA), BS88: 35A (415V,80kA) |
| ● Mirror contact acc. to IEC 60947-4-1 | Yes |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| ● at AC in hot operating state per pole | 0.7 W |
| ● with low demand rate acc. to SN 31920 | 100 FIT |
| Mechanical service life (switching cycles) | |
| ● with 2 current paths in series at DC-1 | |
| ● with 3 current paths in series at DC-1 | |
| ● with high demand rate acc. to SN 31920 | 1 000 000 |
| Apparent holding power of magnet coil at AC | |
| Apparent pick-up power of magnet coil at AC | |
| Number of NO contacts for auxiliary contacts | |
| Type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| ● at AWG conductors for auxiliary contacts | 2x (20 ... 12) |
| ● finely stranded with core end processing | 0.5 ... 2.5 mm² |
| Power loss [W] for rated value of the current | |
| Type of voltage of the control supply voltage | AC |
| — at ambient temperature 40 °C rated value | 22 A |
| maximum permissible voltage for safe isolation | |
| Installation altitude at height above sea level | |
| Rated operation power at AC-3, 400 V (EF001364) | 4.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| ● finely stranded without core end processing | 0.5 ... 2.5 mm² |
| Full-load current (FLA) for three-phase AC motor | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Suitability for use safety-related switching OFF | Yes |
| ● Type of electrical connection of magnet coil | Spring-type terminals |
| Control version of the switch operating mechanism | Standard A1 - A2 |
| ● with 2 current paths in series at DC-3 at DC-5 | |
| ● with 3 current paths in series at DC-3 at DC-5 | |
| Contact rating of auxiliary contacts according to UL | A600 / Q600 |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 22 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 8.5 |
| ● for short-circuit protection of the main circuit | |
| ● limited to 1 s switching at zero current maximum | 155 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 111 A; Use minimum cross-section acc. to AC-1 rated value |
| Connectable conductor cross-section for main contacts | |
| Inductive power factor with closing power of the coil | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| ● between coil and main contacts acc. to EN 60947-1 | 400 V |
| ● limited to 10 s switching at zero current maximum | 86 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 66 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 55 A; Use minimum cross-section acc. to AC-1 rated value |
| AWG number as coded connectable conductor cross section | |
| — up to 230 V for current peak value n=20 rated value | 5.3 A |
| — up to 230 V for current peak value n=30 rated value | 3.5 A |
| — up to 400 V for current peak value n=20 rated value | 5.3 A |
| — up to 400 V for current peak value n=30 rated value | 3.5 A |
| — up to 500 V for current peak value n=20 rated value | 5.3 A |
| — up to 500 V for current peak value n=30 rated value | 3.6 A |
| — up to 690 V for current peak value n=20 rated value | 5 A |
| — up to 690 V for current peak value n=30 rated value | 3.3 A |
| ● up to 230 V for current peak value n=20 rated value | 2 kV·A |
| ● up to 230 V for current peak value n=30 rated value | 1.3 kV·A |
| ● up to 400 V for current peak value n=20 rated value | 3.6 kV·A |
| ● up to 400 V for current peak value n=30 rated value | 2.4 kV·A |
| ● up to 500 V for current peak value n=20 rated value | 4.6 kV·A |
| ● up to 500 V for current peak value n=30 rated value | 3.1 kV·A |
| ● up to 690 V for current peak value n=20 rated value | 5.9 kV·A |
| ● up to 690 V for current peak value n=30 rated value | 4 kV·A |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| Inductive power factor with the holding power of the coil | |
| — up to 690 V at ambient temperature 40 °C rated value | 22 A |
| — up to 690 V at ambient temperature 60 °C rated value | 20 A |
| Connectable conductor cross-section for auxiliary contacts | |
| ● Type of electrical connection for main current circuit | spring-loaded terminals |
| Number of main contacts as normally open contact (EF001374) | 3 |
| Operating power for approx. 200000 operating cycles at AC-4 | |
| Number of normally closed contacts as main contact (EF001375) | - |
| Operating current for approx. 200000 operating cycles at AC-4 | |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Short-time withstand current in cold operating state up to 40 °C | |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | - |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ● Type of electrical connection at contactor for auxiliary contacts | Spring-type terminals |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● Type of electrical connection for auxiliary and control current circuit | spring-loaded terminals |
| Operating range factor control supply voltage rated value of magnet coil at AC | |
| Power loss [W] for rated value of the current without load current share typical | 4.2 W |
| ● of the contactor with added electronics-compatible auxiliary switch block typical | 5 000 000 |
| General Product ApprovalEMCKCFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesMarine / ShippingType Examination CertificateMiscellaneousType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
