3RT2015-2BE42

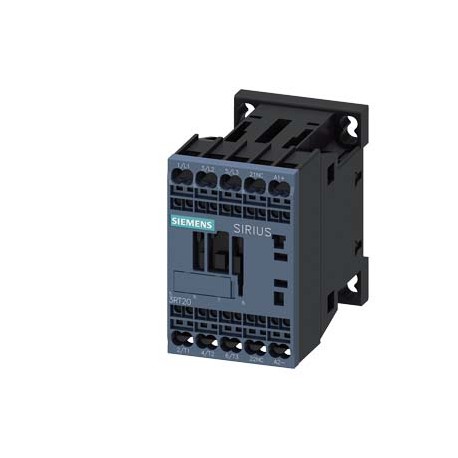

3RT2015-2BE42 SIEMENS Power contactor, AC-3 7 A, 3 kW / 400 V 1 NC, 60 V DC 3-pole, Size S00 Spring-type ter..
$0.00USD
4908 in stock
Key Specifications
:VersionClassificationeClass627-37-10-03eClass7.127-37-10-03eClass827-37-10-03eClass927-37-10-03eClass9.127-37-10-03ETIM5EC000066ETIM6EC000066ETIM7EC000066ETIM8EC000066IDEA44755UNSPSC1439-12-15-21UNSPSC1539-12-15-29
EAN:4011209846494
UPC:662643909425
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-10-03eClass7.127-37-10-03eClass827-37-10-03eClass927-37-10-03eClass9.127-37-10-03ETIM5EC000066ETIM6EC000066ETIM7EC000066ETIM8EC000066IDEA44755UNSPSC1439-12-15-21UNSPSC1539-12-15-29 | |
| EAN | 4011209846494 |
| UPC | 662643909425 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | LDP----- |
| Product Group | 5330 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT contactors, 3-pole, up to 250 kW |
| Net Weight (kg) | 0,313 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 50,00 x 73,50 x 77,50 |
| Product Description | Power contactor, AC-3 7 A, 3 kW / 400 V 1 NC, 60 V DC 3-pole, Size S00 Spring-type terminal |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 80 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3RT2015-2BE42 |
| Rated operation power NEMA (EF011960) | 2.20649625 |
| Voltage type for actuating (EF008242) | DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Rated operation power at AC-3, 400 V (EF001364) | 3.0 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '60'] |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 18 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 7 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 6.5 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| Number of main contacts as normally open contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | - |
| Number of auxiliary contacts as normally open contact (EF001376) | - |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
SIRIUS Innovations Contactor, AC-3, 3KW/400V, 1NC, DC 60V, S00 spring connection. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
