3RT1966-5AR31

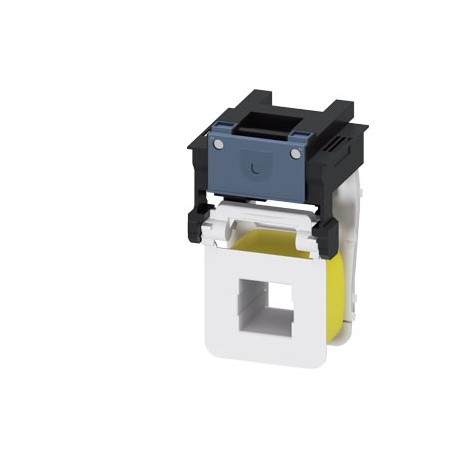

3RT1966-5AR31 SIEMENS Changeover operating mechanism for vacuum contactor 3RT126 AC (50...60 Hz) / DC operat..
$0.00USD
4647 in stock
Key Specifications
:VersionClassificationeClass627-37-10-12eClass7.127-37-10-12eClass827-37-10-12eClass927-37-10-12eClass9.127-37-10-12ETIM5EC001043ETIM6EC001043ETIM7EC001043ETIM8EC001043IDEA44145UNSPSC1439-12-15-21UNSPSC1539-12-10-10
EAN:4011209506169
UPC:754554774367
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-10-12eClass7.127-37-10-12eClass827-37-10-12eClass927-37-10-12eClass9.127-37-10-12ETIM5EC001043ETIM6EC001043ETIM7EC001043ETIM8EC001043IDEA44145UNSPSC1439-12-15-21UNSPSC1539-12-10-10 | |
| EAN | 4011209506169 |
| UPC | 754554774367 |
| ETIM | 5 |
| IDEA | 4 |
| other | Railway |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| ● 2 at AC | |
| Confirmation | |
| Date5/5/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | L-R----- |
| Miscellaneous | Special Test Certificate |
| Product Group | 3729 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85045000 |
| Product family | Solenoid coils |
| last modified: | 1/18/2021 |
| Net Weight (kg) | 0,990 Kg |
| Country of origin | Germany |
| Test Certificates | Marine / Shipping |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 110,00 x 125,00 x 172,00 |
| Product Description | Changeover operating mechanism for vacuum contactor 3RT126 AC (50...60 Hz) / DC operation, 440 ... 480 V Operating mechanism: Standard,economy circuit Screw terminal |
| product designation | Magnet coil |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 2 at DC rated value | 480 V |
| General Product Approval | EMC |
| Special Test Certificate | |
| — at 50 Hz rated value | 480 V |
| — at 60 Hz rated value | 480 V |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3RT1966-5AR31 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of voltage of the control supply voltage | AC/DC |
| Rated control supply voltage Us at DC (EF003980) | ['440', '480'] |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['440', '480'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['440', '480'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingotherSpecial Test CertificateConfirmationotherRailwayMiscellaneousSpecial Test Certificate | General Product Approval |
Product Description
PLUG-COIL size, size S10 PARASIRIUS Contactor IN EMPTY 3RT126 AC/DC drive UC440-480V, CONVENTIONAL. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
