3RT1955-5AR32

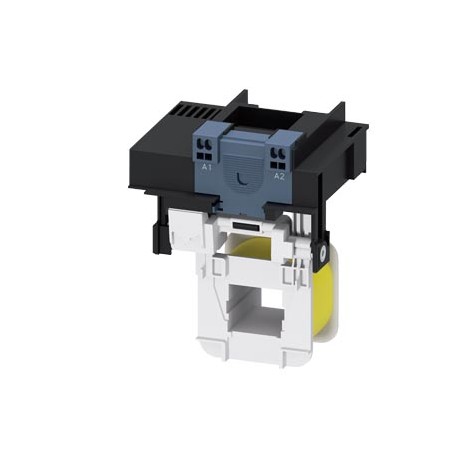

3RT1955-5AR32 SIEMENS Changeover operating mechanism for contactors 3RT105, 3RT145 AC (50...60 Hz) / DC oper..
$0.00USD
3120 in stock
Key Specifications
:Confirmation
EAN:4011209584082
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209584082 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| ● 2 at AC | |
| Metal Factor | L-R----- |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3729 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85045000 |
| Product family | Solenoid coils |
| last modified: | 2/11/2021 |
| Net Weight (kg) | 0,613 Kg |
| Country of origin | Germany |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 86,50 x 124,50 x 105,00 |
| Product Description | Changeover operating mechanism for contactors 3RT105, 3RT145 AC (50...60 Hz) / DC operation, 440 ... 480 V Operating mechanism: Standard,economy circuit Spring-type terminal |
| product designation | Magnet coil |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● 2 at DC rated value | 480 V |
| General Product Approval | EMC |
| — at 50 Hz rated value | 480 V |
| — at 60 Hz rated value | 480 V |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | On request |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3RT1955-5AR32 |
| Voltage type for actuating (EF008242) | AC/DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of voltage of the control supply voltage | AC/DC |
| Rated control supply voltage Us at DC (EF003980) | ['440', '480'] |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['440', '480'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['440', '480'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityTest CertificatesMarine / ShippingSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherRailwayConfirmationMiscellaneousSpecial Test Certificate | General Product Approval |
Product Description
REMOVABLE COIL FOR SIZE S6 P/SIRIUS ContactorES 3RT105/3RT145 ACCTO. AC/DC 440-480V UC DRIVE: CONVENTIONAL Spring connection. Manufactured to order. Non-Cancelable Non-Returnable.
