3RT1926-2ED31

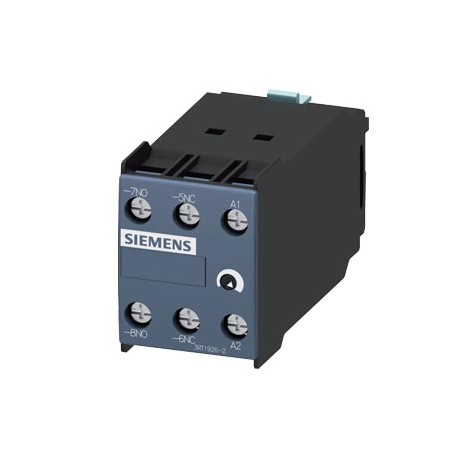

3RT1926-2ED31 SIEMENS solid-state time-delayed front-side auxiliary switch Time range 5...100 s, 200 ... 240..
$0.00USD
4520 in stock
Key Specifications
:
EAN:4011209308398
UPC:754554413600
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209308398 |
| UPC | 754554413600 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 73 mm |
| width | 33 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 46 mm |
| ● solid | 1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²) |
| Group Code | R711 |
| — upwards | 0 m |
| ● at 24 V | 3 A |
| ● maximum | 3 A |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LA------ |
| — forwards | 0 m |
| ● ON-delay | Yes |
| ● at 125 V | 0.2 A |
| ● at 250 V | 3 A |
| ● at 50 Hz | 200 ... 240 V |
| ● at 60 Hz | 200 ... 240 V |
| ● stranded | 18 ... 14 |
| Product Group | 4952 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| recovery time | 150 ms |
| — backwards | 0 m |
| — downwards | 0 m |
| ● OFF delay | No |
| Commodity Code | 85364900 |
| Product family | Delayed |
| last modified: | 12/19/2020 |
| Net Weight (kg) | 0,100 Kg |
| adjustable time | 5 ... 100 s |
| — at the side | 0 m |
| fastening method | clip-on |
| product function | |
| required spacing | |
| ● non-volatile | No |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| mounting position | any |
| ● initial value | 0.85 |
| ● pulse delayed | No |
| ● pulse-shaping | No |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| switching function | |
| type of insulation | Basic insulation |
| ● during storage | -40 ... +85 °C |
| ● for live parts | |
| Packaging Dimension | 50,00 x 105,00 x 45,00 |
| Product Description | solid-state time-delayed front-side auxiliary switch Time range 5...100 s, 200 ... 240 V AC, 1 NO contact, 1 NC contact ON delay, for 3RT1 |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | auxiliary switch |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +85 °C |
| ● full-scale value | 1.1 |
| design of the product | slow-operating |
| number of CO contacts | |
| number of NC contacts | |
| number of NO contacts | |
| ● additive ON-delay | No |
| ● delayed switching | 1 |
| conducted interference | |
| ● ON-delay/OFF-delay | No |
| ● for grounded parts | |
| ● star-delta circuit | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| Setting time (EF005922) | ['5.0', '100.0'] |
| ● at AWG cables solid | 2x (20 ... 14) |
| General Product Approval | EMC |
| product type designation | 3RT19 |
| relative repeat accuracy | 1 % |
| ● passing make contact | No |
| Declaration of Conformity | Test Certificates |
| ● instantaneous contact | 0 |
| ● passing break contact | No |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 2x (20 ... 14) |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| ● OFF delay/instantaneous | No |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 07/01/2006 |
| Switching function (EF000189) | Operating delayed |
| Operating principle (EF004139) | Electronic |
| category according to EN 954-1 | none |
| control supply voltage 1 at AC | |
| ● with side-by-side mounting | |
| ● pulse delayed/instantaneous | No |
| ● pulse-shaping/instantaneous | No |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| relative humidity during operation | 15 ... 95 % |
| ● ON-delay/instantaneous contact | No |
| connectable conductor cross-section | |
| product function star-delta circuit | No |
| ● additive ON-delay/instantaneous | No |
| surge voltage resistance rated value | 4 000 V |
| ● ON-delay/OFF-delay/instantaneous | No |
| Article Number (Market Facing Number) | 3RT1926-2ED31 |
| EMC immunity according to IEC 61812-1 | EN 61000-6-2 |
| ● variably clocked with pulse start | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| switching function with control signal | |
| ● star-delta circuit with delay time | No |
| product component semi-conductor output | No |
| reference code according to IEC 81346-2 | K |
| ● passing break contact/instantaneous | No |
| ● variably clocked with interval start | No |
| product extension optional remote control | No |
| product extension required remote control | No |
| ● constant clock cycle with pulse start | No |
| design of the control terminal non-floating | No |
| ● due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| ● flashing symmetrically with pulse start | No |
| shock resistance according to IEC 60068-2-27 | 11g / 15 ms |
| type of connectable conductor cross-sections | |
| ● constant clock cycle with interval start | No |
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| ● flashing asymmetrically with pulse start | No |
| type of voltage of the control supply voltage | AC |
| ● flashing symmetrically with interval start | No |
| ● passing make contact/instantaneous contact | No |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| ● flashing asymmetrically with interval start | No |
| ● retriggerable with deactivated control signal | No |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| size of contactor can be combined company-specific | S0 ... S12 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| ● retrotriggerable with switched-on control signal | No |
| Number of contacts as normally open contact (EF008256) | - |
| relative setting accuracy relating to full-scale value | 15 % |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Number of contacts as normally closed contact (EF008255) | - |
| switching function of interval relay with control signal | |
| ● at the relay outputs switchover delayed/without delay | No |
| ● flashing symmetrically with pulse start/instantaneous | No |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| ● flashing symmetrically with interval start/instantaneous | No |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| operational current of auxiliary contacts as NC contact at AC-15 | |
| operational current of auxiliary contacts as NO contact at AC-15 | |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| product component removable terminal for auxiliary and control circuit | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| ● retrotriggerable with deactivated control signal/instantaneous contact | No |
| ● retrotriggerable with switched-on control signal/instantaneous contact | No |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherRailwayConfirmationMiscellaneousSpecial Test Certificate | General Product Approval |
Product Description
SIRIUS Auxiliary contact with electronic delay of a range 5 s... 100 s, AC 200...240V, 1NA+1NC, excitation delay, for mounting on contactors size S0... S3. Manufactured to order. Non-Cancelable Non-Re
