3RT1363-6AR36

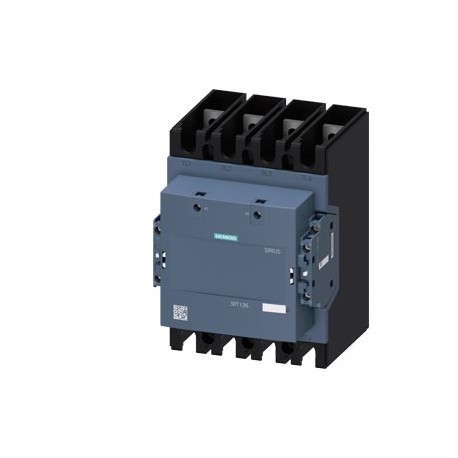

3RT1363-6AR36 SIEMENS Contactor, AC-1, 275 A/400 V/40 °C, S10, 4-pole, 250-500 V AC/DC, 2 NO+2 NC, Connectio..
$0.00USD
3434 in stock
Key Specifications
:Confirmation
EAN:4047621048772
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621048772 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 153 mm |
| width | 140 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 196 mm |
| — solid | 1x (1 ... 4mm²), 2x (1 ... 4mm²) |
| ● at AC | 300 1/h |
| ● at DC | 300 1/h |
| Group Code | R711 |
| net weight | 3.85 kg |
| — upwards | 10 mm |
| ● at AC-1 | |
| ● at AC-3 | |
| Metal Factor | LFO----- |
| — forwards | 20 mm |
| ● at 50 Hz | 0.85 ... 1.1 |
| ● at 60 Hz | 0.85 ... 1.1 |
| Date5/13/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5805 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT.3 contactors, 4-pole, up to 525 A |
| last modified: | 3/18/2022 |
| ● attachable | 2 |
| Net Weight (kg) | 3,965 Kg |
| operating power | |
| type of voltage | AC |
| — at the side | 0 mm |
| ● rated value | 250 ... 500 V |
| fastening method | screw fixing |
| product function | |
| required spacing | |
| Country of origin | Sweden |
| mounting position | For vertical mounting surface can be rotated +/-180°, and with 0° rotation can be tilted forward or backward +/- 30°, or standing |
| product extension | |
| size of contactor | S10 |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -40 ... +70 °C |
| ● for live parts | |
| ● of magnet coil | Screw-type terminals |
| Packaging Dimension | 174,00 x 247,00 x 198,00 |
| Product Description | Contactor, AC-1, 275 A/400 V/40 °C, S10, 4-pole, 250-500 V AC/DC, 2 NO+2 NC, Connection rail/ screw terminal |
| ambient temperature | |
| operational current | |
| product designation | Contactor |
| ● auxiliary switch | Yes |
| ● during operation | -40 ... +60 °C |
| ● full-scale value | 1.1 |
| — solid or stranded | 1x (1 ... 4mm²), 2x (1 ... 4mm²) |
| ● solid or stranded | 1 ... 4 mm² |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| ● at 24 V rated value | 3 A |
| ● at 48 V rated value | 1.5 A |
| General Product Approval | EMC |
| product type designation | 3RT13 |
| surge voltage resistance | |
| — at 400 V rated value | 190 A |
| ● at 110 V rated value | 0.55 A |
| ● at 125 V rated value | 0.55 A |
| ● at 220 V rated value | 0.3 A |
| ● at 230 V rated value | 4 A |
| ● at 400 V rated value | 3 A |
| ● at 50 Hz rated value | 250 ... 500 V |
| ● at 500 V rated value | 2 A |
| ● at 60 Hz rated value | 250 ... 500 V |
| ● at 690 V rated value | 2 A |
| Declaration of Conformity | Test Certificates |
| relative humidity minimum | 10 % |
| ● instantaneous contact | 2 |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| control supply voltage at DC | |
| operational current at AC-15 | |
| operational current at DC-13 | |
| ● for main current circuit | Connection bar |
| Substance Prohibitance (Date) | 03/27/2017 |
| type of electrical connection | |
| ● with side-by-side mounting | |
| ● of main circuit rated value | 8 kV |
| ● at AC in hot operating state | 60 W |
| ● at AC-3 at 400 V rated value | 90 kW |
| closing power of magnet coil at DC | 190 W |
| holding power of magnet coil at DC | 4 W |
| product function bus communication | No |
| ● of auxiliary circuit rated value | 6 kV |
| Article Number (Market Facing Number) | 3RT1363-6AR36 |
| ● for auxiliary and control circuit | screw-type terminals |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG: 355 A (500 V, 100 kA) |
| ● without load current share typical | 4 W |
| number of NO contacts for main contacts | 4 |
| reference code according to IEC 81346-2 | Q |
| ● at contactor for auxiliary contacts | Screw-type terminals |
| number of poles for main current circuit | 4 |
| ● at AWG cables for auxiliary contacts | 1x (AWG 18 ... 14), 2x (AWG 18 ... 14) |
| product function short circuit protection | No |
| ● at AC in hot operating state per pole | 15 W |
| apparent holding power of magnet coil at AC | |
| apparent pick-up power of magnet coil at AC | |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 1x (0.75 ... 2.5 mm²), 2x (0.75 ... 2.5 mm²) |
| ● finely stranded with core end processing | 0.75 ... 2.5 mm² |
| power loss [W] for rated value of the current | |
| type of voltage of the control supply voltage | AC/DC |
| ● mirror contact according to IEC 60947-4-1 | Yes |
| control version of the switch operating mechanism | Standard A1 - A2 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / Q300 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with box terminal/cover |
| ● for short-circuit protection of the main circuit | |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| — up to 690 V at ambient temperature 40 °C rated value | 275 A |
| — up to 690 V at ambient temperature 60 °C rated value | 250 A |
| connectable conductor cross-section for auxiliary contacts | |
| — up to 1000 V at ambient temperature 40 °C rated value | 250 A |
| — up to 1000 V at ambient temperature 60 °C rated value | 225 A |
| ● of main circuit with degree of pollution 3 rated value | 1 000 V |
| ● positively driven operation according to IEC 60947-5-1 | No |
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value | 275 A |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| minimum cross-section in main circuit at maximum AC-1 rated value | 150 mm² |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (690 V, 1 kA) |
| Compliance with the substance restrictions according to RoHS directive | Since: 27.03.2017 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value of magnet coil at AC | |
| operating range factor control supply voltage rated value of magnet coil at DC | |
| ● of the auxiliary and control circuit with degree of pollution 3 rated value | 690 V |
| General Product ApprovalEMCDeclaration of ConformityConfirmationUK Declaration of ConformityDeclaration of ConformityTest CertificatesotherRailwaySpecial Test CertificateConfirmationMiscellaneousSpecial Test Certificate | General Product Approval |
Product Description
Power contactor AC-1 275 A Tu=40 °C, 4 poles, Ue 1000 V 250 - 500 V DC, 0,8...1,1 Uc 250 - 500 V AC 50/60 Hz 0,85...1,1 Uc Main circuit connection: bar Auxiliary/control circuit: screw. Manufactured t
