3RT1265-6AR36

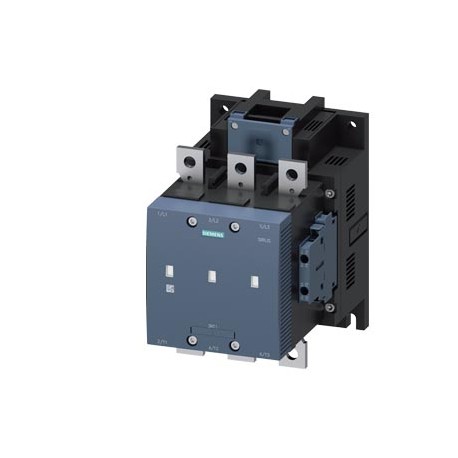

3RT1265-6AR36 SIEMENS Vacuum contactor, AC-3 265 A, 132 kW / 400 V AC (50-60 Hz) / DC operation 440-480 V UC..
$0.00USD
3446 in stock
Key Specifications
:Value
Modular version (EF001126):true
Rated operation power NEMA (EF011960):147.09975
Voltage type for actuating (EF008242):AC/DC
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| Modular version (EF001126) | true |
| Rated operation power NEMA (EF011960) | 147.09975 |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated operation power at AC-3, 400 V (EF001364) | 132.0 |
| Rated operation power at AC-4, 400 V (EF008496) | 132.0 |
| Rated control supply voltage Us at DC (EF003980) | ['440', '480'] |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 330 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 265 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 230 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['440.0', '480.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['440.0', '480.0'] |
| Type of electrical connection of main circuit (EF006819) | - |
| Number of main contacts as normally open contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | - |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
Product Description
SIRIUS Vacuum Contactor 132KW/400V/AC-3, AC/DC Drive, UC 440-480V, 2NA+2NC 3-Pole Auxiliary Contacts, Size S10, Conventional Drive Bar Connections. Manufactured to order. Non-Cancelable Non-Returnable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
