3RT1065-2AM36

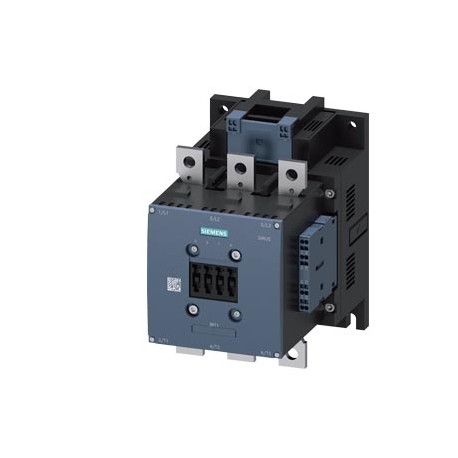

3RT1065-2AM36 SIEMENS power contactor, AC-3 265 A, 132 kW / 400 V AC (50-60 Hz) / DC operation 200-220 V AC/..
$0.00USD
3835 in stock
Key Specifications
:Confirmation
EAN:4011209582514
EMC:Functional Safety/Safety of Machinery
UPC:Not available
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209582514 |
| EMC | Functional Safety/Safety of Machinery |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 202 mm |
| other | Railway |
| width | 145 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 210 mm |
| — solid | 2x (0.25 ... 2.5 mm²) |
| ● at AC | 8,5g / 5 ms, 4,2g / 10 ms |
| ● at DC | 8,5g / 5 ms, 4,2g / 10 ms |
| Group Code | R711 |
| arcing time | 10 ... 15 ms |
| — upwards | 10 mm |
| ● at AC-1 | |
| ● at AC-3 | |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LFO----- |
| — forwards | 20 mm |
| ● at 50 Hz | 0.8 ... 1.1 |
| ● at 60 Hz | 0.8 ... 1.1 |
| ● at AC-3e | |
| ● at AC-6a | |
| ● stranded | 70 ... 240 mm² |
| Miscellaneous | Miscellaneous |
| Product Group | 3706 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RT contactors, 3-pole, up to 250 kW |
| last modified: | 3/24/2022 |
| Net Weight (kg) | 6,530 Kg |
| number of holes | 1 |
| operating power | |
| — at the side | 0 mm |
| ● rated value | 200 ... 220 V |
| fastening method | screw fixing |
| product function | |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| diameter of holes | 11 mm |
| mounting position | with vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back |
| operating voltage | |
| product extension | |
| size of contactor | S10 |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| ● of magnet coil | Spring-type terminals |
| Packaging Dimension | 265,00 x 196,00 x 234,00 |
| Product Description | power contactor, AC-3 265 A, 132 kW / 400 V AC (50-60 Hz) / DC operation 200-220 V AC/DC auxiliary contacts 2 NO + 2 NC 3-pole, frame size S10 busbar connections drive: conventional spring-loaded terminal |
| ambient temperature | |
| operating frequency | |
| operational current | |
| product designation | Power contactor |
| suitability for use | |
| ● at AC-1 maximum | 800 1/h |
| ● at AC-2 maximum | 300 1/h |
| ● at AC-3 maximum | 700 1/h |
| ● at AC-4 maximum | 130 1/h |
| ● at AC-3e maximum | 700 1/h |
| ● auxiliary switch | Yes |
| ● during operation | -25 ... +60 °C |
| ● full-scale value | 1.1 |
| — solid or stranded | 2x (0,25 ... 2,5 mm²) |
| ● solid or stranded | 0.25 ... 2.5 mm² |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| width of connection bar | 25 mm |
| — at 24 V rated value | 300 A |
| ● at 24 V rated value | 10 A |
| ● at 48 V rated value | 6 A |
| ● at 60 V rated value | 6 A |
| product type designation | 3RT1 |
| surge voltage resistance | |
| — at 110 V rated value | 33 A |
| — at 220 V rated value | 3.8 A |
| — at 230 V rated value | 75 kW |
| — at 400 V rated value | 265 A |
| — at 440 V rated value | 0.9 A |
| — at 500 V rated value | 265 A |
| — at 600 V rated value | 0.6 A |
| — at 690 V rated value | 265 A |
| ● at 110 V rated value | 3 A |
| ● at 125 V rated value | 2 A |
| ● at 220 V rated value | 1 A |
| ● at 230 V rated value | 6 A |
| ● at 400 V rated value | 117 A |
| ● at 480 V rated value | 240 A |
| ● at 50 Hz rated value | 200 ... 220 V |
| ● at 500 V rated value | 2 A |
| ● at 60 Hz rated value | 200 ... 220 V |
| ● at 600 V rated value | 0.15 A |
| ● at 690 V rated value | 105 A |
| ● for 3-phase AC motor | |
| ● of contactor typical | 10 000 000 |
| relative humidity minimum | 10 % |
| — at 1000 V rated value | 95 A |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 60 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| thickness of connection bar | 6 mm |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| control supply voltage at DC | |
| operational current at AC-15 | |
| operational current at DC-12 | |
| operational current at DC-13 | |
| — at 200/208 V rated value | 75 hp |
| — at 220/230 V rated value | 100 hp |
| — at 460/480 V rated value | 200 hp |
| — at 575/600 V rated value | 250 hp |
| ● for main current circuit | Connection bar |
| Substance Prohibitance (Date) | 05/01/2012 |
| type of electrical connection | |
| ● at 1 current path at DC-1 | |
| design of the surge suppressor | with varistor |
| ● with side-by-side mounting | |
| ● at AC-3 rated value maximum | 1 000 V |
| ● of main circuit rated value | 8 kV |
| shock resistance with sine pulse | |
| ● at AC in hot operating state | 54 W |
| ● at AC-3e rated value maximum | 1 000 V |
| ● at AC-4 at 400 V rated value | 230 A |
| ● safety-related switching OFF | Yes |
| operating apparent power at AC-6a | |
| closing power of magnet coil at DC | 650 W |
| holding power of magnet coil at DC | 7.4 W |
| yielded mechanical performance [hp] | |
| ● at AWG cables for main contacts | 2/0 ... 500 kcmil |
| operational current at AC-12 maximum | 10 A |
| ● at AC-5a up to 690 V rated value | 290 A |
| ● at AC-5b up to 400 V rated value | 219 A |
| ● of auxiliary circuit rated value | 6 kV |
| Article Number (Market Facing Number) | 3RT1065-2AM36 |
| Rated operation power NEMA (EF011960) | 147.09975 |
| Voltage type for actuating (EF008242) | AC/DC |
| ● at 1 current path at DC-3 at DC-5 | |
| ● for auxiliary and control circuit | spring-loaded terminals |
| ● function module for communication | No |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG: 400 A (690 V, 100 kA), aM: 315 A (690 V, 50 kA), BS88: 400 A (415 V, 50 kA) |
| ● without load current share typical | 7.4 W |
| number of NO contacts for main contacts | 3 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| ● at contactor for auxiliary contacts | Spring-type terminals |
| number of poles for main current circuit | 3 |
| — with type of coordination 1 required | gG: 500 A (690 V, 100 kA) |
| ● at AWG cables for auxiliary contacts | 2x (24 ... 14) |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| ● at AC in hot operating state per pole | 18 W |
| mechanical service life (switching cycles) | |
| ● with 2 current paths in series at DC-1 | |
| ● with 3 current paths in series at DC-1 | |
| apparent holding power of magnet coil at AC | |
| apparent pick-up power of magnet coil at AC | |
| full-load current (FLA) for 3-phase AC motor | |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.25 ... 1.5 mm²) |
| ● finely stranded with core end processing | 0.25 ... 1.5 mm² |
| power loss [W] for rated value of the current | |
| type of voltage of the control supply voltage | AC/DC |
| ● mirror contact according to IEC 60947-4-1 | Yes |
| Rated operation power at AC-3, 400 V (EF001364) | 132.0 |
| Rated operation power at AC-4, 400 V (EF008496) | 132.0 |
| — finely stranded without core end processing | 2x (0.25 ... 2.5 mm²) |
| ● finely stranded without core end processing | 0.25 ... 2.5 mm² |
| Rated control supply voltage Us at DC (EF003980) | ['200', '220'] |
| control version of the switch operating mechanism | Standard A1 - A2 |
| ● with 2 current paths in series at DC-3 at DC-5 | |
| ● with 3 current paths in series at DC-3 at DC-5 | |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 330 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 265 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 230 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with box terminal/cover |
| ● for short-circuit protection of the main circuit | |
| ● limited to 1 s switching at zero current maximum | 4 880 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 5 s switching at zero current maximum | 4 045 A; Use minimum cross-section acc. to AC-1 rated value |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['200.0', '220.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['200.0', '220.0'] |
| connectable conductor cross-section for main contacts | |
| inductive power factor with closing power of the coil | |
| ● limited to 10 s switching at zero current maximum | 2 785 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 30 s switching at zero current maximum | 1 664 A; Use minimum cross-section acc. to AC-1 rated value |
| ● limited to 60 s switching at zero current maximum | 1 276 A; Use minimum cross-section acc. to AC-1 rated value |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| — up to 230 V for current peak value n=20 rated value | 265 A |
| — up to 230 V for current peak value n=30 rated value | 184 A |
| — up to 400 V for current peak value n=20 rated value | 265 A |
| — up to 400 V for current peak value n=30 rated value | 184 A |
| — up to 500 V for current peak value n=20 rated value | 265 A |
| — up to 500 V for current peak value n=30 rated value | 184 A |
| — up to 690 V for current peak value n=20 rated value | 265 A |
| — up to 690 V for current peak value n=30 rated value | 184 A |
| ● up to 230 V for current peak value n=20 rated value | 100 000 kVA |
| ● up to 230 V for current peak value n=30 rated value | 70 000 VA |
| ● up to 400 V for current peak value n=20 rated value | 180 000 VA |
| ● up to 400 V for current peak value n=30 rated value | 120 000 VA |
| ● up to 500 V for current peak value n=20 rated value | 220 000 VA |
| ● up to 500 V for current peak value n=30 rated value | 150 000 VA |
| ● up to 690 V for current peak value n=20 rated value | 310 000 VA |
| ● up to 690 V for current peak value n=30 rated value | 220 000 VA |
| Type of electrical connection of main circuit (EF006819) | - |
| — up to 1000 V for current peak value n=20 rated value | 95 A |
| — up to 1000 V for current peak value n=30 rated value | 95 A |
| ● up to 1000 V for current peak value n=20 rated value | 160 000 VA |
| ● up to 1000 V for current peak value n=30 rated value | 160 000 VA |
| inductive power factor with the holding power of the coil | |
| — up to 690 V at ambient temperature 40 °C rated value | 330 A |
| — up to 690 V at ambient temperature 60 °C rated value | 300 A |
| connectable conductor cross-section for auxiliary contacts | |
| — up to 1000 V at ambient temperature 40 °C rated value | 150 A |
| — up to 1000 V at ambient temperature 60 °C rated value | 150 A |
| ● of main circuit with degree of pollution 3 rated value | 1 000 V |
| ● positively driven operation according to IEC 60947-5-1 | No |
| Number of main contacts as normally open contact (EF001374) | 3 |
| operating power for approx. 200000 operating cycles at AC-4 | |
| Number of normally closed contacts as main contact (EF001375) | - |
| ● at AC-1 at 400 V at ambient temperature 40 °C rated value | 330 A |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| operational current for approx. 200000 operating cycles at AC-4 | |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| ● of auxiliary circuit with degree of pollution 3 rated value | 500 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| minimum cross-section in main circuit at maximum AC-1 rated value | 185 mm² |
| short-time withstand current in cold operating state up to 40 °C | |
| ● for short-circuit protection of the auxiliary switch required | gG: 10 A (500 V, 1 kA) |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| number of NC contacts for auxiliary contacts instantaneous contact | 2 |
| number of NO contacts for auxiliary contacts instantaneous contact | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| operating range factor control supply voltage rated value of magnet coil at AC | |
| operating range factor control supply voltage rated value of magnet coil at DC | |
| ● of the contactor with added electronically optimized auxiliary switch block typical | 5 000 000 |
| maximum permissible voltage for safe isolation between coil and main contacts according to EN 60947-1 | 690 V |
| General Product ApprovalConfirmationKCEMCFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesType Examination CertificateUK Declaration of ConformityType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherConfirmationotherRailwayMiscellaneousMiscellaneousConfirmationSpecial Test Certificate | General Product Approval |
Product Description
SIRIUS Contactor, 132KW/400V/AC-3 AC/DC drive 200-220V UC Auxiliary contacts 2NA+2NC 3 poles, size S10 terminals for control bar connection: conventional Spring connection. Manufactured to order. Non-
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
