3RT1046-1AE04

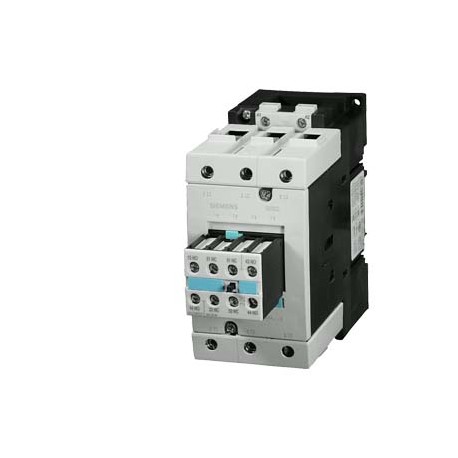

3RT1046-1AE04 SIEMENS Power contactor, AC-3 95 A, 45 kW / 400 V 60 V AC, 50 Hz, 2 NO + 2 NC 3-pole, Size S3 ..
$0.00USD
3635 in stock
Key Specifications
:Value
EAN:4011209373914
UPC:040892824179
Notes:Sucessor:Successor via https://support.industry.siemens.com/My/ww/en/requests
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209373914 |
| UPC | 040892824179 |
| Notes | Sucessor:Successor via https://support.industry.siemens.com/My/ww/en/requests |
| Group Code | R711 |
| Price Group | 41B |
| Metal Factor | LFO----- |
| Product Group | 3705 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Not available |
| Net Weight (kg) | 1,936 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 01.10.2019 |
| Packaging Quantity | 1 |
| Packaging Dimension | 77,50 x 153,00 x 210,00 |
| Product Description | Power contactor, AC-3 95 A, 45 kW / 400 V 60 V AC, 50 Hz, 2 NO + 2 NC 3-pole, Size S3 Screw terminal !!! Phased-out product !!! Successor is SIRIUS 3RT2 |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Export Control Regulations | ECCN : N / AL : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 30 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| Article Number (Market Facing Number) | 3RT1046-1AE04 |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | AC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Rated operation power at AC-3, 400 V (EF001364) | 45.0 |
| Rated operation power at AC-4, 400 V (EF008496) | 45.0 |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 120 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 95 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 80 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 3 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
