3RS7000-1AE00

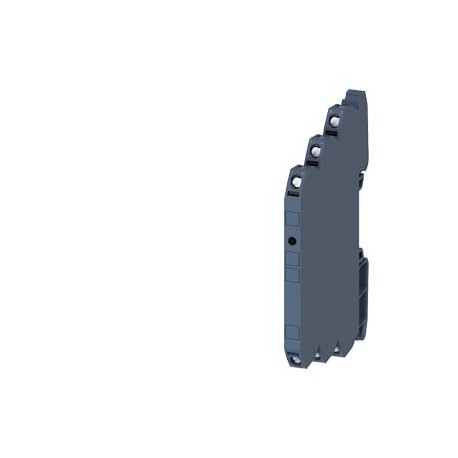

3RS7000-1AE00 SIEMENS Separation amplifier 24 V AC/DC, 3-way separation input: 0-10 V output: 0-10 V screw t..
$0.00USD
4328 in stock
Key Specifications
:Confirmation
EAN:4047621000367
UPC:804766215490
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621000367 |
| UPC | 804766215490 |
| ETIM | 5 |
| depth | 72.5 mm |
| width | 6.2 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 93 mm |
| rise time | 6 ms |
| ● at DC | 0.8 ... 1.1 |
| ● solid | 1x (0.25 ... 2.5 mm²) |
| Group Code | R711 |
| output load | |
| — upwards | 0 mm |
| Metal Factor | None |
| — forwards | 0 mm |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 4951 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| input voltage | 30 V |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85389091 |
| Product family | SIRIUS 3RS70 signal converters |
| last modified: | 12/23/2020 |
| Load (EF007096) | - |
| Net Weight (kg) | 0,048 Kg |
| limit frequency | 30 Hz |
| type of voltage | AC/DC |
| — at the side | 0 mm |
| Depth (EF000049) | 72.5 |
| Width (EF000008) | 6.2 |
| fastening method | snap-on mounting |
| product category | Signal converter |
| required spacing | |
| Country of origin | Germany |
| Height (EF000040) | 93.0 |
| Marine / Shipping | other |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| galvanic isolation | |
| number of channels | 1 |
| product brand name | SIRIUS |
| ● at AC at 50 Hz | 0.8 ... 1.1 |
| ● at AC at 60 Hz | 0.8 ... 1.1 |
| ● during storage | -40 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 80,00 x 95,00 x 12,00 |
| Product Description | Separation amplifier 24 V AC/DC, 3-way separation input: 0-10 V output: 0-10 V screw terminal |
| ambient temperature | |
| display version LED | Yes |
| product designation | Single-range converters |
| protection class IP | IP20 |
| supply voltage at AC | |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| consumed active power | 0.29 W |
| design of the product | active |
| conducted interference | |
| voltage ripple maximum | 20 mV |
| ● between the inputs | No |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| type of signal at input | 0 ... 10 V |
| ● at AWG cables solid | 1 x (20 ... 14) |
| ● between the outputs | No |
| General Product Approval | Declaration of Conformity |
| product type designation | 3RS70 |
| type of signal at output | 0 ... 10 V |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| Load influence (EF007097) | 0 |
| temperature drift per °C | 0.015 %/°C |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Snap mounting support rail |
| Switching power (EF001313) | - |
| Standard lead time ex-works | 50 Day/Days |
| Surcharge for Raw Materials | None |
| relative metering precision | 0.1 % |
| Package size unit of measure | MM |
| Power consumption (EF000346) | 0.29 |
| Switching current (EF000188) | - |
| Switching voltage (EF003586) | - |
| Temperature drift (EF007507) | - |
| relative linearity deviation | 0.05 % |
| ● between input and output | Yes |
| Number of channels (EF000259) | 1 |
| Substance Prohibitance (Date) | 03/25/2015 |
| type of electrical connection | screw-type terminals |
| ● at voltage output minimum | 2 kΩ |
| Switching frequency (EF003587) | - |
| ● with side-by-side mounting | |
| Type of power supply (EF001469) | - |
| settling time for 1 % deviation | 17 ms |
| Operating temperature (EF002393) | ['-25', '60'] |
| supply voltage at DC rated value | 24 V |
| design of the electrical isolation | 3 paths |
| relative humidity during operation | 10 ... 95 % |
| connectable conductor cross-section | |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated operation frequency (EF007024) | ['50', '60'] |
| supply voltage frequency rated value | 60 ... 50 Hz |
| surge voltage resistance rated value | 2 500 V |
| Article Number (Market Facing Number) | 3RS7000-1AE00 |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| Malfunction message output (EF007499) | false |
| Rated supply voltage at AC (EF007075) | - |
| Rated supply voltage at DC (EF007078) | - |
| SIL according to IEC 61508 (EF009889) | None |
| Construction type of device (EF007276) | Einbaugerät |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | T |
| input impedance of voltage input minimum | 330 kΩ |
| property of the output short-circuit proof | Yes |
| tightening torque with screw-type terminals | 0.5 ... 0.6 N·m |
| ● due to burst according to IEC 61000-4-4 | 1 kV 5/50 ns |
| shock resistance according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| Galvanic separation between inputs (EF007224) | false |
| Number of input ranges 0 V ... 1 V (EF006890) | 0 |
| Number of input ranges 0 V ... 2 V (EF006894) | 0 |
| Number of input ranges 0 V ... 5 V (EF006903) | 0 |
| Number of input ranges 1 V ... 5 V (EF006907) | 0 |
| Number of input ranges 5 V ... 0 V (EF006924) | 0 |
| Number of input ranges 5 V ... 1 V (EF006925) | 0 |
| Number of input ranges 0 V ... 10 V (EF006892) | 1 |
| Number of input ranges 0 V ... 20 V (EF006897) | 0 |
| Number of input ranges 0 V ... 24 V (EF006899) | 0 |
| Number of input ranges 0 V ... 30 V (EF006900) | 0 |
| Number of input ranges 10 V ... 0 V (EF006910) | 0 |
| Number of input ranges 10 V ... 2 V (EF006911) | 0 |
| Number of input ranges 2 V ... 10 V (EF006914) | 0 |
| Number of output ranges 0 V ... 1 V (EF006843) | 0 |
| Number of output ranges 0 V ... 2 V (EF006847) | 0 |
| Number of output ranges 0 V ... 5 V (EF006856) | 0 |
| Number of output ranges 1 V ... 5 V (EF006860) | 0 |
| Number of output ranges 5 V ... 0 V (EF006877) | 0 |
| Number of output ranges 5 V ... 1 V (EF006878) | 0 |
| Number of input ranges +5 V ... -5 V (EF006889) | 0 |
| Number of input ranges -1 V ... +1 V (EF006906) | 0 |
| Number of input ranges -2 V ... +2 V (EF006913) | 0 |
| Number of input ranges -5 V ... +5 V (EF006923) | 0 |
| Number of input ranges 0 V ... 2.5 V (EF006895) | 0 |
| Number of input ranges 0 mA ... 5 mA (EF006902) | 0 |
| Number of output ranges 0 V ... 10 V (EF006845) | 1 |
| Number of output ranges 0 V ... 20 V (EF006850) | 0 |
| Number of output ranges 0 V ... 24 V (EF006852) | 0 |
| Number of output ranges 0 V ... 30 V (EF006853) | 0 |
| Number of output ranges 10 V ... 0 V (EF006863) | 0 |
| Number of output ranges 10 V ... 2 V (EF006864) | 0 |
| Number of output ranges 2 V ... 10 V (EF006867) | 0 |
| vibration resistance according to IEC 60068-2-6 | 6 ... 150 Hz: 2 g |
| Number of input ranges 0 mA ... 10 mA (EF006891) | 0 |
| Number of input ranges 0 mA ... 20 mA (EF006896) | 0 |
| Number of input ranges 0 mV ... 60 mV (EF006905) | 0 |
| Number of input ranges 20 mA ... 0 mA (EF006918) | 0 |
| Number of input ranges 20 mA ... 4 mA (EF006919) | 0 |
| Number of input ranges 4 mA ... 20 mA (EF006921) | 0 |
| Number of output ranges +5 V ... -5 V (EF006842) | 0 |
| Number of output ranges -1 V ... +1 V (EF006859) | 0 |
| Number of output ranges -2 V ... +2 V (EF006866) | 0 |
| Number of output ranges -5 V ... +5 V (EF006876) | 0 |
| Number of output ranges 0 V ... 2.5 V (EF006848) | 0 |
| Number of output ranges 0 mA ... 5 mA (EF006855) | 0 |
| EMC emitted interference according to IEC 60947-1 | Environment B |
| Number of input ranges +10 V ... -10 V (EF006888) | 0 |
| Number of input ranges -10 V ... +10 V (EF006909) | 0 |
| Number of input ranges -20 V ... +20 V (EF006917) | 0 |
| Number of input ranges -5 mA ... +5 mA (EF006922) | 0 |
| Number of input ranges 0 mV ... 100 mV (EF006893) | 0 |
| Number of input ranges 0 mV ... 200 mV (EF006898) | 0 |
| Number of input ranges 0 mV ... 300 mV (EF006901) | 0 |
| Number of input ranges 0 mV ... 500 mV (EF006904) | 0 |
| Number of output ranges 0 mA ... 10 mA (EF006844) | 0 |
| Number of output ranges 0 mA ... 20 mA (EF006849) | 0 |
| Number of output ranges 0 mV ... 60 mV (EF006858) | 0 |
| Number of output ranges 20 mA ... 0 mA (EF006871) | 0 |
| Number of output ranges 20 mA ... 4 mA (EF006872) | 0 |
| Number of output ranges 4 mA ... 20 mA (EF006874) | 0 |
| operating range factor supply voltage rated value | |
| ● between the voltage supply and other circuits | Yes |
| Number of output ranges +10 V ... -10 V (EF006841) | 0 |
| Number of output ranges -10 V ... +10 V (EF006862) | 0 |
| Number of output ranges -20 V ... +20 V (EF006870) | 0 |
| Number of output ranges -5 mA ... +5 mA (EF006875) | 0 |
| Number of output ranges 0 mV ... 100 mV (EF006846) | 0 |
| Number of output ranges 0 mV ... 200 mV (EF006851) | 0 |
| Number of output ranges 0 mV ... 300 mV (EF006854) | 0 |
| Number of output ranges 0 mV ... 500 mV (EF006857) | 0 |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| Number of input ranges -10 mA ... +10 mA (EF006908) | 0 |
| Number of input ranges -2.5 V ... +2.5 V (EF006915) | 0 |
| Number of input ranges -20 mA ... +20 mA (EF006916) | 0 |
| Number of input ranges -60 mV ... +60 mV (EF006927) | 0 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Number of output ranges -10 mA ... +10 mA (EF006861) | 0 |
| Number of output ranges -2.5 V ... +2.5 V (EF006868) | 0 |
| Number of output ranges -20 mA ... +20 mA (EF006869) | 0 |
| Number of output ranges -60 mV ... +60 mV (EF006880) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Number of input ranges -100 mV ... +100 mV (EF006912) | 0 |
| Number of input ranges -300 mV ... +300 mV (EF006920) | 0 |
| Number of input ranges -500 mV ... +500 mV (EF006926) | 0 |
| Number of output ranges -100 mV ... +100 mV (EF006865) | 0 |
| Number of output ranges -300 mV ... +300 mV (EF006873) | 0 |
| Number of output ranges -500 mV ... +500 mV (EF006879) | 0 |
| AWG number as coded connectable conductor cross section | |
| Galvanic separation between input and output (EF007223) | true |
| Galvanic separation between output to output (EF007222) | false |
| installation altitude at height above sea level maximum | 2 000 m |
| Inherently safe according to EN 60947-5-6 NAMUR (EF007112) | - |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.03.2015 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| Galvanic separation between supply voltage and all other current circuits (EF007225) | true |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 50 V |
| General Product ApprovalDeclaration of ConformityTest CertificatesConfirmationType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
