3RS1440-2HB50

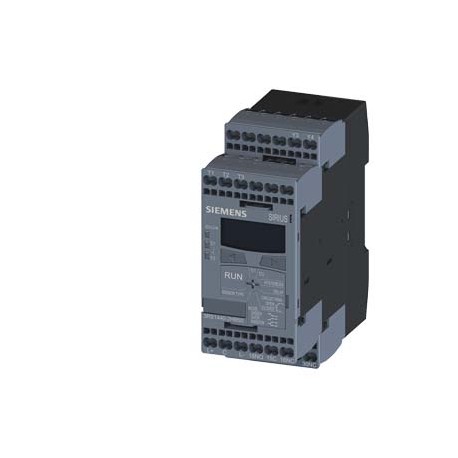

3RS1440-2HB50 SIEMENS Temperature monitoring relay for IO-Link PT100/1000, KTY83/84, NTC 2 limit values -50 ..
$0.00USD
4850 in stock
Key Specifications
:Confirmation
EAN:4011209895935
UPC:040892915587
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209895935 |
| UPC | 040892915587 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 91 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 108 mm |
| ● at DC | 18 ... 30 V |
| Group Code | R711 |
| data volume | |
| Confirmation | |
| Date5/6/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| Product Group | 5882 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Relays, digitally adjustable for 1 sensor |
| last modified: | 1/18/2021 |
| Net Weight (kg) | 0,267 Kg |
| type of voltage | DC |
| Depth (EF000049) | 91.0 |
| Width (EF000008) | 45.0 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| product function | |
| ● error memory | Yes |
| Country of origin | Czech Republic |
| Height (EF000040) | 108.0 |
| ● initial value | -50 °C |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product phase-out since: 22.02.2021 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● external reset | Yes |
| Packaging Dimension | 55,00 x 113,00 x 111,00 |
| Product Description | temperature monitoring relay for IO-Link Pt100/1000 KTY83/84, NTC 2 limit values -50 °C to 750 °C 3 x 1 CO, width 45 mm spring-loaded terminal !!!phased-out product!!! the preferred successor is 3RS2800-2BA40 |
| product designation | Temperature monitoring relay |
| ● full-scale value | 750 °C |
| IO-Link transfer rate | COM2 (38,4 kBaud) |
| design of the product | 2 threshold values, digitally adjustable |
| ● at DC rated value | 24 V |
| measurable temperature | |
| power loss [W] maximum | 4 W |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Test Certificates |
| control supply voltage 1 | |
| product type designation | 3RS14 |
| Export Control Regulations | AL : N / ECCN : N |
| power loss [V∙A] maximum | 7 VA |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of measuring circuits | 1 |
| Substance Prohibitance (Date) | 05/01/2012 |
| sensor current with KTY-sensor | 0.3 mA |
| design of the sensor connectable | PT100/1000, KTY83/84, NTC (resistance sensors) |
| With detachable clamps (EF003340) | - |
| External reset possible (EF003426) | true |
| ambient temperature during operation | -25 ... +60 °C |
| Article Number (Market Facing Number) | 3RS1440-2HB50 |
| Resistance measuring range (EF011955) | - |
| Voltage type for actuating (EF008242) | DC |
| Error registration possible (EF003423) | true |
| Temperature measuring range (EF009788) | - |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| protocol is supported IO-Link protocol | Yes |
| Number of measuring circuits (EF003425) | 1 |
| reference code according to IEC 81346-2 | K |
| number of CO contacts for auxiliary contacts | 3 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| measurable temperature with KTY-sensor maximum | 200 °C |
| Rated control supply voltage Us at DC (EF003980) | ['18', '30'] |
| type of voltage supply via input/output link master | Yes |
| Number of contacts as change-over contact (EF008257) | 3 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| point-to-point cycle time between master and IO-Link device minimum | 10 ms |
| ● of the address range of the inputs with cyclical transfer total | 4 byte |
| ● of the address range of the outputs with cyclical transfer total | 2 byte |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Tris(2-chloroethyl) ... CAS-No. 115-96-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(2-chloroethyl) phosphate (TCEP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalTest CertificatesConfirmationManufacturer DeclarationType Test Certificates/Test ReportotherConfirmation | General Product Approval |
