3RS1042-2GW70

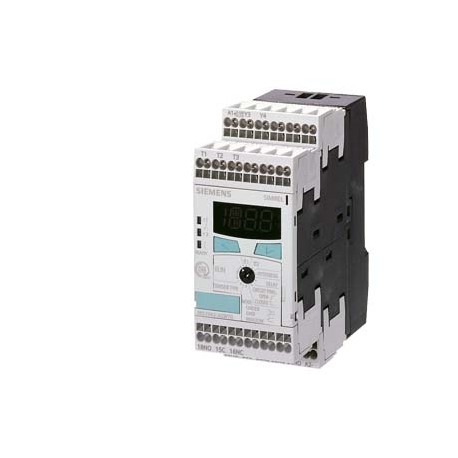

3RS1042-2GW70 SIEMENS temperature monitoring relay Pt100/1000 KTY83/84, NTC 2 threshold values digitally adj..
$0.00USD
4291 in stock
Key Specifications
:VersionClassificationeClass627-37-18-10eClass7.127-37-18-10eClass827-37-18-10eClass927-37-18-10eClass9.127-37-18-10ETIM5EC001446ETIM6EC001446ETIM7EC001446ETIM8EC001446IDEA45282UNSPSC1539-12-22-29
EAN:4011209589810
UPC:Not available
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-18-10eClass7.127-37-18-10eClass827-37-18-10eClass927-37-18-10eClass9.127-37-18-10ETIM5EC001446ETIM6EC001446ETIM7EC001446ETIM8EC001446IDEA45282UNSPSC1539-12-22-29 | |
| EAN | 4011209589810 |
| UPC | Not available |
| ETIM | 5 |
| IDEA | 4 |
| depth | 91 mm |
| width | 45 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 108 mm |
| ● at DC | 24 ... 240 V |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | LAO----- |
| ● at 50 Hz | 24 ... 240 V |
| ● at 60 Hz | 24 ... 240 V |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5882 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364190 |
| Product family | Relays, digitally adjustable for 1 sensor |
| last modified: | 2/1/2021 |
| Net Weight (kg) | 0,285 Kg |
| type of voltage | AC/DC |
| Depth (EF000049) | 91.0 |
| Width (EF000008) | 45.0 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| product function | |
| ● error memory | Yes |
| Country of origin | Germany |
| Height (EF000040) | 108.0 |
| ● initial value | -50 °C |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product phase-out since: 01.10.2020 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● external reset | Yes |
| Packaging Dimension | 53,00 x 111,50 x 105,00 |
| Product Description | temperature monitoring relay Pt100/1000 KTY83/84, NTC 2 threshold values digitally adjustable -50 °C to 750 °C (sensor-dependent) 24-240 V AC/DC 2 x 1 CO + 1 NO, width 45 mm spring-loaded connection system !!!phased-out product!!! the preferred successor is 3RS2600-2BW30 |
| product designation | Temperature monitoring relay |
| ● full-scale value | 750 °C |
| design of the product | 2 threshold values, digitally adjustable |
| measurable temperature | |
| power loss [W] maximum | 4 W |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| control supply voltage 1 | |
| product type designation | 3RS10 |
| Export Control Regulations | AL : N / ECCN : N |
| power loss [V∙A] maximum | 7 VA |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of measuring circuits | 1 |
| Substance Prohibitance (Date) | 05/01/2012 |
| control supply voltage 1 at AC | |
| sensor current with KTY-sensor | 0.3 mA |
| design of the sensor connectable | PT100/1000, KTY83/84, NTC (resistance sensors) |
| With detachable clamps (EF003340) | true |
| External reset possible (EF003426) | true |
| ambient temperature during operation | -25 ... +60 °C |
| Article Number (Market Facing Number) | 3RS1042-2GW70 |
| Resistance measuring range (EF011955) | - |
| Voltage type for actuating (EF008242) | AC/DC |
| Error registration possible (EF003423) | true |
| Temperature measuring range (EF009788) | - |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of measuring circuits (EF003425) | 1 |
| reference code according to IEC 81346-2 | K |
| number of CO contacts for auxiliary contacts | 2 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| type of electrical connection plug-in socket | Yes |
| measurable temperature with KTY-sensor maximum | 200 °C |
| Rated control supply voltage Us at DC (EF003980) | ['24', '240'] |
| Number of contacts as change-over contact (EF008257) | 2 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['24', '240'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['24', '240'] |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| supply voltage frequency for auxiliary and control circuit | 50 ... 60 Hz |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationConfirmation | General Product Approval |
Product Description
SIRIUS Temperature monitor/limiter according to DIN 3440, PT100/1000 KTY83/84, NTC, 2 thresholds, digital, -50ºC to 750ºC (sensor function), 24 TO 240V AC/DC, 2 X 1 CNM + 1 NA, width 45 mm, spring con
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Confirmation
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
