3RS1002-2CD20

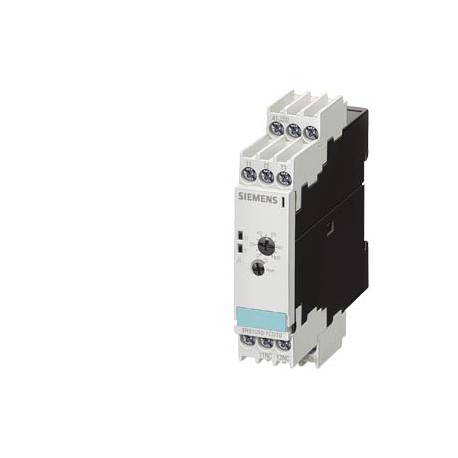

3RS1002-2CD20 SIEMENS temperature monitoring relay Pt1000, overshoot 1 threshold value, width 22.5 mm 0 °C t..
$0.00USD
3173 in stock
Key Specifications
:Confirmation
EAN:4011209606548
UPC:804766784255
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209606548 |
| UPC | 804766784255 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 91 mm |
| width | 22.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 84 mm |
| Group Code | R711 |
| Metal Factor | LAO----- |
| Date5/13/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5882 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364190 |
| Product family | Ordering Data Overview |
| last modified: | 2/1/2021 |
| Net Weight (kg) | 0,128 Kg |
| type of voltage | AC/DC |
| Depth (EF000049) | 91.0 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| product function | |
| ● error memory | No |
| Country of origin | Germany |
| Height (EF000040) | 84.0 |
| ● initial value | 0 °C |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product phase-out since: 01.10.2020 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● external reset | No |
| Packaging Dimension | 29,00 x 99,00 x 107,00 |
| Product Description | temperature monitoring relay Pt1000, overshoot 1 threshold value, width 22.5 mm 0 °C to 200 °C 24 V AC/DC 1 NO + 1 NC, quiescent current principle spring-loaded terminal 1 NO + 1 NC, quiescent current principle spring-loaded terminal !!!phased-out product!!! the preferred successor is 3RS2600-2BA30 |
| product designation | Temperature monitoring relay |
| ● full-scale value | 200 °C |
| design of the product | Overshoot, 1 threshold value |
| ● at DC rated value | 24 V |
| measurable temperature | |
| power loss [W] maximum | 2 W |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| General Product Approval | Declaration of Conformity |
| control supply voltage 1 | |
| product type designation | 3RS10 |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| Export Control Regulations | AL : N / ECCN : N |
| power loss [V∙A] maximum | 4 VA |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| number of measuring circuits | 1 |
| Substance Prohibitance (Date) | 05/01/2012 |
| control supply voltage 1 at AC | |
| design of the sensor connectable | PT1000 (resistance sensor) |
| With detachable clamps (EF003340) | true |
| External reset possible (EF003426) | false |
| ambient temperature during operation | -25 ... +60 °C |
| Article Number (Market Facing Number) | 3RS1002-2CD20 |
| Resistance measuring range (EF011955) | - |
| Voltage type for actuating (EF008242) | AC/DC |
| Error registration possible (EF003423) | false |
| Temperature measuring range (EF009788) | - |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Number of measuring circuits (EF003425) | 1 |
| reference code according to IEC 81346-2 | K |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| type of electrical connection plug-in socket | Yes |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| supply voltage frequency for auxiliary and control circuit | 50 ... 60 Hz |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationConfirmation | General Product Approval |
Product Description
SIRIUS Temperature monitoring relay for PT1000, exceeds 1 threshold value, width 22.5mm 0ºC to 200ºC aC/DC 24V, 1NA+1NC, normally closed spring connection. Manufactured to order. Non-Cancelable Non-Re
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
