3RR2243-3FA30

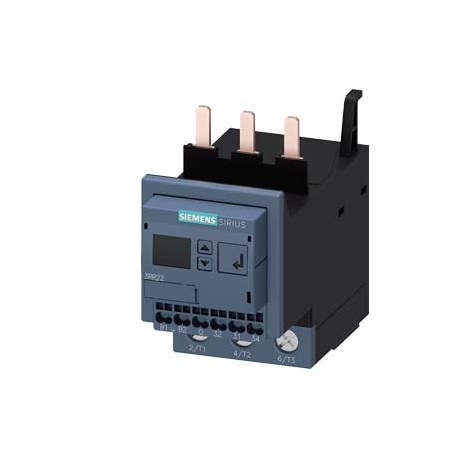

3RR2243-3FA30 SIEMENS Monitoring relay, can be mounted to Contactor 3RT2, Size S2 standard, digitally adjust..
$0.00USD
3783 in stock
Key Specifications
:Confirmation
EAN:4011209937789
UPC:887621915322
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209937789 |
| UPC | 887621915322 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 112 mm |
| width | 55 mm |
| ● 1 | 8 ... 80 A |
| ● 2 | 8 ... 80 A |
| UNSPSC | 15 |
| eClass | 6 |
| height | 99 mm |
| — solid | 2x (1 ... 35 mm²), 1x (1 ... 50 mm²) |
| Group Code | R711 |
| — upwards | 0 mm |
| ● at 24 V | 3 A |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| — stranded | 2x (1 ... 35 mm²), 1x (1 ... 50 mm²) |
| ● at 125 V | 0.2 A |
| ● at 230 V | 3 A |
| ● at 250 V | 0.1 A |
| ● at 400 V | 3 A |
| Product Group | 5343 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | Current and active current monitoring |
| last modified: | 1/18/2021 |
| Net Weight (kg) | 0,200 Kg |
| — at the side | 0 mm |
| Depth (EF000049) | 112.0 |
| Width (EF000008) | 55.0 |
| fastening method | direct mounting |
| required spacing | |
| shock resistance | 10g / 11 ms |
| ● on the front | IP20 |
| Country of origin | Czech Republic |
| Height (EF000040) | 99.0 |
| Marine / Shipping | other |
| mounting position | any |
| ● when starting | 0 ... 99 s |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 121,00 x 123,00 x 68,00 |
| Product Description | Monitoring relay, can be mounted to Contactor 3RT2, Size S2 standard, digitally adjustable Apparant/active current monitoring 8...80 A, 20...400 Hz, 3-phase Supply 24 V AC/DC 1 change-over contact, 1 semiconductor output for alarm and warning Monitoring for Current overshoot and undershoot Phase failure, Cable break Phase sequence Residual current Blocking current Warning and alarm thresholds with or without fault buffer ON delay 0-99 s Noise pulse suppression 0-30 s Pause after fault 0-300 min spring-type connection system |
| ambient temperature | |
| product designation | Monitoring relays |
| protection class IP | |
| ● of the terminal | IP00 |
| vibration resistance | 10 ... 55 Hz / 0.35 mm |
| ● during operation | -25 ... +60 °C |
| design of the product | digitally adjustable, 3-phase current monitoring |
| number of CO contacts | |
| ● for main contacts | |
| ● solid or stranded | 1 ... 50 mm² |
| supply voltage 1 at AC | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| product type designation | 3RR2 |
| relative repeat accuracy | 2 % |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| Declaration of Conformity | Test Certificates |
| temperature drift per °C | 0.1 %/°C |
| Export Control Regulations | AL : N / ECCN : N |
| supply voltage frequency 1 | 50 ... 60 Hz |
| ● for auxiliary contacts | 1 |
| Standard lead time ex-works | 60 Day/Days |
| Surcharge for Raw Materials | None |
| accuracy of digital display | +/-1 digit |
| operating power rated value | 2.5 W |
| Package size unit of measure | MM |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 10/01/2009 |
| type of electrical connection | |
| adjustable response delay time | |
| type of current for monitoring | AC |
| ● with side-by-side mounting | |
| With detachable clamps (EF003340) | true |
| supply voltage 1 at DC rated value | 24 V |
| operational current at 17 V minimum | 5 mA |
| ● at AWG cables for main contacts | 2x (18 ... 2), 1x (18 ... 1) |
| Current measurement range (EF000417) | ['8.0', '80.0'] |
| operating apparent power rated value | 4 VA |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RR2243-3FA30 |
| EMC immunity according to IEC 60947-1 | ambience A (industrial sector) |
| Voltage type for actuating (EF008242) | AC/DC |
| type of voltage of the supply voltage | AC/DC |
| ● for auxiliary and control circuit | spring-loaded terminals |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| protocol is supported IO-Link protocol | No |
| External current transformer (EF001923) | - |
| reference code according to IEC 81346-2 | K |
| ● with lower or upper limit violation | 0 ... 30 s |
| Max. permitted off-delay time (EF008191) | 30 |
| ● at AWG cables for auxiliary contacts | 2x (24 ... 16) |
| Function DC-current hysteresis (EF003411) | false |
| Min. adjustable off-delay time (EF008192) | 0 |
| adjustable current response value current | |
| Three-phase hysteresis possible (EF003395) | false |
| ● with degree of pollution 3 rated value | 690 V |
| Single-phase hysteresis possible (EF003394) | false |
| tightening torque with screw-type terminals | 0.8 ... 1.2 N·m |
| Three-phase over current possible (EF003408) | true |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1 ... 25 mm²), 1x (1 ... 35 mm²) |
| ● finely stranded with core end processing | 1 ... 35 mm² |
| Single-phase over current possible (EF003407) | false |
| Three-phase under current possible (EF003406) | true |
| Single-phase under current possible (EF003405) | false |
| — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| ampacity of the semiconductor output in SIO mode | 200 mA |
| EMC emitted interference according to IEC 60947-1 | ambience A (industrial sector) |
| mechanical service life (switching cycles) typical | 10 000 000 |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| size of contactor can be combined company-specific | S2 |
| type of voltage supply via input/output link master | No |
| Contains function DC-voltage over current (EF003410) | false |
| Max. permitted delay-on energization time (EF008189) | 99 |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
| Contains function DC-voltage under current (EF003409) | false |
| Min. adjustable delay-on energization time (EF008190) | 0 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] |
| connectable conductor cross-section for main contacts | |
| product component removable terminal for main circuit | No |
| Number of contacts as normally open contact (EF008256) | - |
| ampacity of the semiconductor output at DC-13 at 240 V | 20 mA |
| installation altitude at height above sea level maximum | 2 000 m |
| Number of contacts as normally closed contact (EF008255) | - |
| adjustable switching hysteresis for measured current value | 0.2 ... 16 A |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| ampacity of the semiconductor output at AC-14 at 240 V at 50/60 Hz | 20 mA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| insulation voltage for overvoltage category III according to IEC 60664 | |
| product component removable terminal for auxiliary and control circuit | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| AWG number as coded connectable conductor cross section for main contacts | 18 ... 1 |
| General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
Product Description
CURRENT SURVEILLANCE RELAY, S2 SIZE, 3 PHASES, DIGITAL ADJUSTMENT 8-80A, 3RT2 CONTACTOR MOUNTING, V POWER SUPPLY 24V AC/DC, 1 SWITCHED + 1 SOLID STATE OUTPUT FOR WARNING AND ALARM, SPRING TERMINALS
