3RQ3070-2SG30

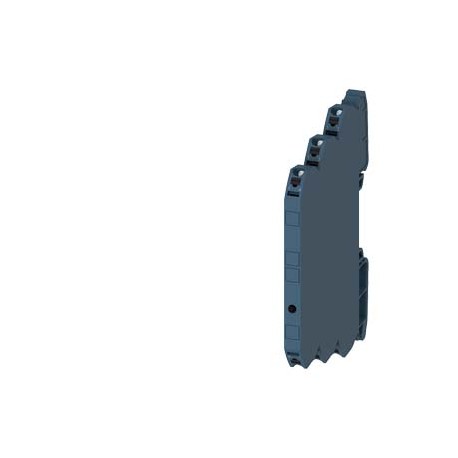

3RQ3070-2SG30 SIEMENS Input coupler Optocoupler 1 NO contact, Transistor Input 110-230 V AC/DC Output max. 3..
$0.00USD
4449 in stock
Key Specifications
:
EAN:4047621000695
UPC:804766216411
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4047621000695 |
| UPC | 804766216411 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 72.5 mm |
| width | 6.2 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 93 mm |
| ● solid | 1x (0.25 ... 2.5 mm²) |
| Group Code | R711 |
| wire length | |
| — upwards | 0 mm |
| Metal Factor | None |
| — forwards | 0 mm |
| ● stranded | 20 ... 14 |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| ON-delay time | |
| Product Group | 4950 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| OFF-delay time | 7 ms |
| Product family | SIRIUS 3RQ3 coupling relays, narrow design |
| last modified: | 5/6/2021 |
| Net Weight (kg) | 0,029 Kg |
| thermal current | 0.5 A |
| type of voltage | AC/DC |
| — at the side | 0 mm |
| ● rated value | 110 ... 230 V |
| Depth (EF000049) | 72.5 |
| Width (EF000008) | 6.2 |
| fastening method | snap-on mounting |
| product category | SIRIUS 3RQ3 coupling relays in slim design |
| required spacing | |
| shock resistance | |
| ● relay output | No |
| Country of origin | Tunisia |
| Height (EF000040) | 93.0 |
| mounting position | any |
| product component | |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| ● at AC maximum | 5 ms |
| ● at DC maximum | 3 ms |
| ● initial value | 0.7 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +85 °C |
| ● for live parts | |
| Packaging Dimension | 70,00 x 95,00 x 7,00 |
| Product Description | Input coupler Optocoupler 1 NO contact, Transistor Input 110-230 V AC/DC Output max. 30 V DC, 0.5 A short circuit-proof Overall width 6.2 mm Spring-type terminal (push-in) Thermal current 0.5 A |
| ambient temperature | |
| display version LED | Yes |
| product designation | Coupling relays with semiconductor output (not plug-in) |
| protection class IP | IP20 |
| switching frequency | 0.2 Hz |
| vibration resistance | |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +85 °C |
| ● full-scale value | 1.1 |
| consumed active power | 0.5 W |
| design of the product | Input coupling link |
| Minimum order quantity | 5 |
| conducted interference | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 1 x (20 ... 14) |
| General Product Approval | EMC |
| product type designation | 3RQ3 |
| ● at 50 Hz rated value | 110 ... 230 V |
| ● at 60 Hz rated value | 110 ... 230 V |
| Declaration of Conformity | Test Certificates |
| type of switching contact | NO contact |
| ● semi-conductor output | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| ● at AWG cables stranded | 1x (20 ... 14) |
| Standard lead time ex-works | 200 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| UK Declaration of Conformity | |
| control supply voltage at AC | |
| control supply voltage at DC | |
| Substance Prohibitance (Date) | 03/25/2015 |
| Drive, polarization (EF003355) | - |
| With LED indication (EF005950) | true |
| ● according to IEC 60068-2-6 | 6 ... 150 Hz: 2 g |
| ● with side-by-side mounting | |
| Complete with socket (EF003359) | false |
| ● according to IEC 60068-2-27 | sinusoidal half-wave 15g / 11 ms |
| control supply voltage frequency | |
| product component plug-in socket | No |
| Type of switch contact (EF003358) | Other |
| With detachable clamps (EF003340) | false |
| relative humidity during operation | 10 ... 95 % |
| connectable conductor cross-section | |
| product function removable terminal | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Drive, switching attitude (EF003356) | - |
| surge voltage resistance rated value | 4 kV |
| Article Number (Market Facing Number) | 3RQ3070-2SG30 |
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With forced-guided contacts (EF003357) | false |
| reference code according to IEC 81346-2 | K |
| display version as status display by LED | LED green |
| flammability class of enclosure material | UL94 V-0 |
| ampacity of the semiconductor output at DC | 10 mA ... 0.5 A |
| property of the output short-circuit proof | No |
| minimum switching voltage when switching on | 74 V |
| ● due to burst according to IEC 61000-4-4 | 2 kV |
| maximum switching voltage when switching off | 20 V |
| number of NO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.25 ... 1.5 mm²) |
| ● finely stranded without core end processing | 1x (0.25 ... 2.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['110', '230'] |
| EMC emitted interference according to IEC 60947-1 | ambience A (industrial sector) |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| switching voltage of the semiconductor output at DC | 10 ... 30 V |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['110.0', '230.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['110.0', '230.0'] |
| Number of contacts as normally open contact (EF008256) | 1 |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 2 000 m |
| Number of contacts as normally closed contact (EF008255) | - |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| operating range factor control supply voltage rated value at DC | |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals (push-in) |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.03.2015 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingotherUK Declaration of ConformityType Test Certificates/Test ReportConfirmation | General Product Approval |
