3RQ3053-2SG30

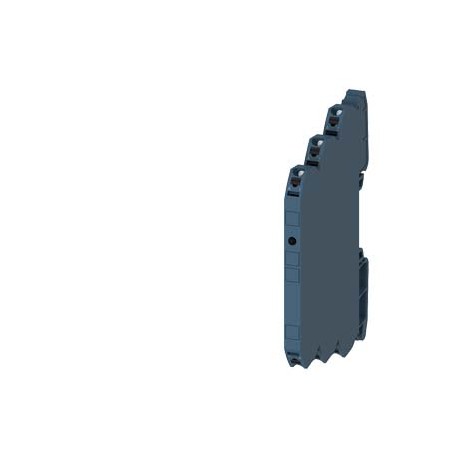

3RQ3053-2SG30 SIEMENS Output coupler Optocoupler 1 NO transistor, 110-230 V AC/DC Output max. 30 V DC, 3 A s..
$0.00USD
3659 in stock
Key Specifications
:VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437IDEA45367UNSPSC1539-12-23-31
EAN:4047621000657
UPC:804766216336
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437IDEA45367UNSPSC1539-12-23-31 | |
| EAN | 4047621000657 |
| UPC | 804766216336 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Product Group | 4950 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RQ3 coupling relays, narrow design |
| Net Weight (kg) | 0,031 Kg |
| Depth (EF000049) | 72.5 |
| Width (EF000008) | 6.2 |
| Country of origin | Tunisia |
| Height (EF000040) | 93.0 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 80,00 x 97,00 x 40,00 |
| Product Description | Output coupler Optocoupler 1 NO transistor, 110-230 V AC/DC Output max. 30 V DC, 3 A short circuit-proof Enclosure width 6.2 mm Spring-type terminal (push-in) Thermal current 3A |
| Minimum order quantity | 5 |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| Standard lead time ex-works | 50 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Drive, polarization (EF003355) | - |
| With LED indication (EF005950) | true |
| Complete with socket (EF003359) | false |
| Type of switch contact (EF003358) | Other |
| With detachable clamps (EF003340) | false |
| Degree of protection (IP) (EF005474) | IP20 |
| Drive, switching attitude (EF003356) | - |
| Article Number (Market Facing Number) | 3RQ3053-2SG30 |
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With forced-guided contacts (EF003357) | false |
| Rated control supply voltage Us at DC (EF003980) | ['110', '230'] |
| Number of contacts as change-over contact (EF008257) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['110.0', '230.0'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['110.0', '230.0'] |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.03.2015 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
