3RP2525-1BB30

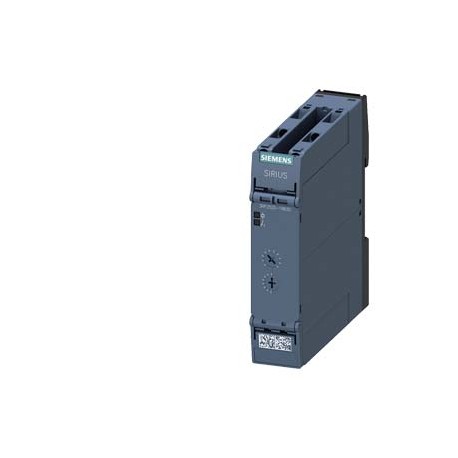

3RP2525-1BB30 SIEMENS Timing relay, electronic on-delay 2 change-over contacts, 7 time ranges 0.05 s...100 h..
$0.00USD
3347 in stock
Key Specifications
:
EAN:4011209943643
UPC:887621914974
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209943643 |
| UPC | 887621914974 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 90 mm |
| width | 22.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| ● solid | 1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²) |
| Group Code | R711 |
| — upwards | 0 mm |
| ● at 24 V | 2 A |
| Metal Factor | LAO----- |
| — forwards | 0 mm |
| ● ON-delay | Yes |
| ● at 125 V | 0.2 A |
| ● at 250 V | 3 A |
| ● stranded | 20 ... 14 |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 4952 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| recovery time | 150 ms |
| — backwards | 0 mm |
| — downwards | 0 mm |
| ● OFF delay | No |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RP25 timing relays 17.5 mm and 22.5 mm |
| last modified: | 12/9/2021 |
| Net Weight (kg) | 0,165 Kg |
| adjustable time | 0.05 s ... 100 h |
| thermal current | 5 A |
| — at the side | 0 mm |
| Depth (EF000049) | 90.0 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| product function | |
| required spacing | |
| ● non-volatile | No |
| ● relay output | Yes |
| Country of origin | Germany |
| Height (EF000040) | 100.0 |
| Marine / Shipping | other |
| mounting position | any |
| product component | |
| tightening torque | 0.6 ... 0.8 N·m |
| ● initial value | 0.85 |
| ● pulse delayed | No |
| ● pulse-shaping | No |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| switching function | |
| type of insulation | Basic insulation |
| ● during storage | -40 ... +85 °C |
| ● for live parts | |
| Packaging Dimension | 36,00 x 109,00 x 126,00 |
| Product Description | Timing relay, electronic on-delay 2 change-over contacts, 7 time ranges 0.05 s...100 h 24 V AC/DC at 50/60 Hz AC with LED, screw terminal |
| ambient temperature | |
| degree of pollution | 3 |
| inrush current peak | |
| product designation | timing relay |
| protection class IP | IP20 |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +85 °C |
| ● full-scale value | 1.1 |
| Time range (EF003384) | ['0.05', '360000.0'] |
| design of the product | slow-operating |
| number of CO contacts | |
| number of NC contacts | |
| number of NO contacts | |
| ● additive ON-delay | No |
| ● at DC rated value | 24 V |
| ● delayed switching | 0 |
| conducted interference | |
| power loss [W] maximum | 2 W |
| power supply influence | 1% in the whole voltage range to the set runtime |
| ● for grounded parts | |
| ● star-delta circuit | No |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| General Product Approval | EMC |
| control supply voltage 1 | |
| product type designation | 3RP25 |
| relative repeat accuracy | 1 %; +/- |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| ● passing make contact | No |
| Declaration of Conformity | Test Certificates |
| ● instantaneous contact | 0 |
| ● passing break contact | No |
| ● semi-conductor output | No |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| ● at AWG cables stranded | 1x (20 ... 12), 2x (20 ... 14) |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| ● OFF delay/instantaneous | No |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 09/12/2014 |
| Function star-delta (EF003380) | false |
| With plug-in socket (EF003360) | true |
| category according to EN 954-1 | none |
| control supply voltage 1 at AC | |
| material of switching contacts | AgSnO2 |
| ● with side-by-side mounting | |
| duration of inrush current peak | |
| test voltage for isolation test | 2.5 kV |
| ● pulse delayed/instantaneous | No |
| ● pulse-shaping/instantaneous | No |
| Function pulse shaping (EF003403) | false |
| control supply voltage frequency 1 | 50 ... 60 Hz |
| relative humidity during operation | 10 ... 95 % |
| ● ON-delay/instantaneous contact | No |
| connectable conductor cross-section | |
| ● additive ON-delay/instantaneous | No |
| Remote operation possible (EF003361) | false |
| With semiconductor output (EF003373) | false |
| surge voltage resistance rated value | 4 000 V |
| ● ON-delay/OFF-delay/instantaneous | No |
| Article Number (Market Facing Number) | 3RP2525-1BB30 |
| EMC immunity according to IEC 61812-1 | corresponds to degree of severity 3 |
| Suitable as remote control (EF003362) | false |
| Voltage type for actuating (EF008242) | AC/DC |
| Suitable for front mounting (EF001127) | screw and snap-on mounting onto 35 mm standard mounting rail |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| switching function with control signal | |
| ● star-delta circuit with delay time | No |
| reference code according to IEC 81346-2 | K |
| ● passing break contact/instantaneous | No |
| influence of the surrounding temperature | 1% in the whole temperature range to the set runtime |
| Function delay-on energization (EF003374) | true |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (17 V, 5 mA) |
| product extension optional remote control | No |
| product extension required remote control | No |
| ● due to burst according to IEC 61000-4-4 | 2 kV network connection / 1 kV control connection |
| ● flashing symmetrically with pulse start | No |
| Function delay on de-energization (EF003401) | false |
| design of the thread of the connection screw | M3 |
| shock resistance according to IEC 60068-2-27 | 11g / 15 ms |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²) |
| ● flashing asymmetrically with pulse start | No |
| type of voltage of the control supply voltage | AC/DC |
| switching capacity current with inductive load | 0.01 ... 3 A |
| ● flashing symmetrically with interval start | No |
| ● passing make contact/instantaneous contact | No |
| Pluggable on auxiliary contact block (EF006952) | false |
| operating frequency with 3RT2 contactor maximum | 5 000 1/h |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz / 0.35 mm |
| ● flashing asymmetrically with interval start | No |
| Outputs, reversible delayed/undelayed (EF006988) | false |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| EMC emitted interference according to IEC 61812-1 | ambience A (industrial sector) |
| ● retriggerable with deactivated control signal | No |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Function floating contact on energization (EF003378) | false |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| contact rating of auxiliary contacts according to UL | R300 / B300 |
| ● retrotriggerable with switched-on control signal | No |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] |
| relative setting accuracy relating to full-scale value | 5 %; +/- |
| AWG number as coded connectable conductor cross section | |
| Function floating contact on de-energization (EF003402) | false |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Clock function, starting with pause, variable (EF003365) | false |
| Clock function, starting with pulse, variable (EF003366) | false |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | screw and snap-on mounting onto 35 mm standard mounting rail |
| switching function of interval relay with control signal | |
| ● at the relay outputs switchover delayed/without delay | No |
| ● flashing symmetrically with pulse start/instantaneous | No |
| Number of outputs, delayed, change-over contact (EF006840) | 2 |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| Number of outputs, delayed, normally open contact (EF006839) | 0 |
| Number of outputs, undelayed, change-over contact (EF006837) | 0 |
| ● flashing symmetrically with interval start/instantaneous | No |
| Function flashing, starting with pause, fixed time (EF003363) | false |
| Function flashing, starting with pulse, fixed time (EF003364) | false |
| Number of outputs, delayed, normally closed contact (EF006838) | 0 |
| Number of outputs, undelayed, normally open contact (EF006836) | 0 |
| operating range factor control supply voltage rated value at DC | |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| Number of outputs, undelayed, normally closed contact (EF006835) | 0 |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 12.09.2014 |
| product component removable terminal for auxiliary and control circuit | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| operating range factor control supply voltage rated value at AC at 50 Hz | |
| operating range factor control supply voltage rated value at AC at 60 Hz | |
| ● retrotriggerable with deactivated control signal/instantaneous contact | No |
| ● retrotriggerable with switched-on control signal/instantaneous contact | No |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 4 A |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
