3RM1007-3AA04

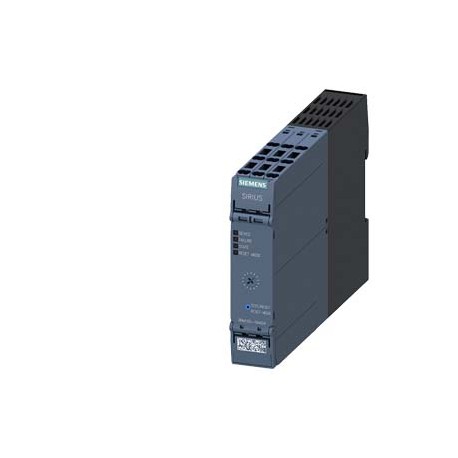

3RM1007-3AA04 SIEMENS Direct starter, 3RM1, 500 V, 0.55 3 kW, 1.6 7 A, 24 V DC, screw/spring-type terminals
$0.00USD
3318 in stock
Key Specifications
:
EAN:4011209935839
UPC:887621293819
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209935839 |
| UPC | 887621293819 |
| ETIM | 5 |
| depth | 141.6 mm |
| width | 22.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| — solid | 1x (0,5 ... 4 mm²), 2x (0,5 ... 2,5 mm²) |
| Group Code | R711 |
| trip class | CLASS 10A |
| — upwards | 50 mm |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| — forwards | 0 mm |
| ON-delay time | 60 ... 90 ms |
| Product Group | 3762 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 50 mm |
| Commodity Code | 85371098 |
| OFF-delay time | 60 ... 90 ms |
| Product family | SIRIUS 3RM1 motor starters |
| last modified: | 11/3/2021 |
| Net Weight (kg) | 0,311 Kg |
| — at the side | 0 mm |
| Depth (EF000049) | 141.6 |
| Width (EF000008) | 22.5 |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| minimum load [%] | 20 %; from set rated current |
| product category | Motor starter |
| product function | Direct-on-line starter |
| required spacing | |
| shock resistance | 6g / 11 ms |
| ● direct start | Yes |
| Country of origin | Germany |
| Height (EF000040) | 100.0 |
| mounting position | vertical, horizontal, standing (observe derating) |
| ● initial value | 0.8 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +70 °C |
| Packaging Dimension | 36,00 x 109,00 x 167,00 |
| Product Description | Direct starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, screw/spring-type terminals |
| ambient temperature | |
| operational current | |
| product designation | Direct-on-line starter |
| With fuse (EF006693) | false |
| derating temperature | 40 °C |
| overvoltage category | III |
| vibration resistance | 1 ... 6 Hz, 15 mm; 20 m/s², 500 Hz |
| ● during operation | 70 mA |
| ● during transport | -40 ... +70 °C |
| ● full-scale value | 1.25 |
| ● reverse starting | No |
| control current at DC | |
| design of the product | with electronic overload protection |
| protocol is supported | |
| ● at DC rated value | 24 V |
| ● for main contacts | |
| ● solid or stranded | 0.5 ... 4 mm² |
| ● when switching on | 150 mA |
| conducted interference | |
| ● PROFIsafe protocol | No |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| operating voltage at AC | |
| — with bypass circuit | 0.6 W |
| General Product Approval | EMC |
| Release class (EF006668) | CLASS 10 A |
| product type designation | 3RM1 |
| — at 230 V rated value | 0.5 hp |
| ● PROFINET IO protocol | No |
| ● for 3-phase AC motor | |
| ● for signal <1> at DC | 15 ... 30 |
| Declaration of Conformity | other |
| ● at 40 °C rated value | 7 A |
| ● at 50 °C rated value | 6.1 A |
| ● at 55 °C rated value | 5.2 A |
| ● at 60 °C rated value | 4.6 A |
| ● in switching state ON | |
| ● with signal <0> at DC | 0 ... 5 V |
| Export Control Regulations | AL : N / ECCN : N |
| ● for auxiliary contacts | |
| ● in switching state OFF | |
| Standard lead time ex-works | 120 Day/Days |
| Surcharge for Raw Materials | None |
| With transformer (EF000278) | false |
| operating frequency maximum | 1 1/s |
| Package size unit of measure | MM |
| type of the motor protection | solid-state |
| — at 110/120 V rated value | 0.25 hp |
| — at 200/208 V rated value | 1 hp |
| — at 220/230 V rated value | 1.5 hp |
| — at 460/480 V rated value | 3 hp |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 03/01/2017 |
| operating voltage rated value | 48 ... 500 V |
| type of electrical connection | screw-type terminals for main circuit, spring-loaded terminals (push-in) for control circuit |
| ● for single-phase AC motor | |
| ampacity when starting maximum | 56 A |
| input current at digital input | |
| input voltage at digital input | |
| insulation voltage rated value | 500 V |
| ● at AC at 400 V rated value | 7 A |
| ● with side-by-side mounting | |
| design of the switching contact | Hybrid |
| ● according to UL rated value | 480 V |
| ● intrinsic device protection | Yes |
| Type of motor starter (EF009598) | - |
| ● according to CSA rated value | 400 V |
| ● at AC-3 at 400 V rated value | 7 A |
| ● in standby mode of operation | 25 mA |
| Rail mounting possible (EF003972) | - |
| operating frequency 1 rated value | 50 Hz |
| operating frequency 2 rated value | 60 Hz |
| External reset possible (EF003426) | - |
| air pressure according to SN 31205 | 900 ... 1 060 hPa |
| product function bus communication | No |
| relative humidity during operation | 10 ... 95 % |
| yielded mechanical performance [hp] | |
| ● at AWG cables for main contacts | 1x (20 ... 12), 2x (20 ... 14) |
| Degree of protection (IP) (EF005474) | IP20 |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RM1007-3AA04 |
| EMC immunity according to IEC 60947-1 | Class A |
| Number of indicator lights (EF001965) | - |
| Rated operation current Ie (EF001443) | 7 |
| Voltage type for actuating (EF008242) | DC |
| With short-circuit release (EF006691) | false |
| ● for auxiliary and control circuit | spring-loaded terminals (push-in) |
| Degree of protection (NEMA) (EF011959) | - |
| Number of command positions (EF001372) | 0 |
| Suitable for emergency stop (EF001433) | - |
| Supporting protocol for ASI (EF003051) | - |
| Supporting protocol for CAN (EF003053) | - |
| Supporting protocol for LON (EF003017) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● between main and auxiliary circuit | 500 V |
| duration of inrush current peak at 24 V | 85 ms |
| reference code according to IEC 81346-2 | Q |
| control supply voltage at DC rated value | 19.2 ... 30 V |
| number of poles for main current circuit | 3 |
| wire length for motor unshielded maximum | 100 m |
| ● at AWG cables for auxiliary contacts | 1x (20 ... 16), 2x (20 ... 16) |
| Supporting protocol for Modbus (EF003057) | - |
| Supporting protocol for SERCOS (EF006657) | - |
| Supporting protocol for TCP/IP (EF003050) | - |
| product function short circuit protection | No |
| ● between control and auxiliary circuit | 250 V |
| Supporting protocol for SUCONET (EF003060) | - |
| control supply voltage 1 at DC rated value | 24 V |
| Overload release current setting (EF002336) | ['7', '7'] |
| Supporting protocol for INTERBUS (EF003054) | - |
| Supporting protocol for PROFIBUS (EF003052) | - |
| protocol is supported AS-Interface protocol | No |
| ● due to burst according to IEC 61000-4-4 | 3 kV / 5 kHz |
| Supporting protocol for DeviceNet (EF003059) | - |
| Supporting protocol for PROFIsafe (EF007526) | - |
| equipment variant according to IEC 60947-4-2 | 3 |
| number of CO contacts for auxiliary contacts | 1 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 1x (0,5 … 4 mm²), 2x (0,5 … 1,5 mm²) |
| ● finely stranded with core end processing | 0.5 ... 4 mm² |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 2.20649625 |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | - |
| type of voltage of the control supply voltage | DC |
| Supporting protocol for EtherNet/IP (EF007521) | - |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | - |
| maximum permissible voltage for safe isolation | |
| Rated operation power at AC-3, 400 V (EF001364) | 3.0 |
| Supporting protocol for Data-Highway (EF003058) | - |
| Supporting protocol for PROFINET CBA (EF007524) | - |
| power loss [W] in auxiliary and control circuit | |
| — finely stranded without core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²) |
| ● finely stranded without core end processing | 0.5 ... 1.5 mm² |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] |
| suitability for operation device connector 3ZY12 | Yes |
| ● for power supply reverse polarity protection | No |
| EMC emitted interference according to IEC 60947-1 | class A |
| Rated operation current at AC-3, 400 V (EF009602) | - |
| Supporting protocol for INTERBUS-Safety (EF006662) | - |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 30 000 000 |
| Supporting protocol for DeviceNet Safety (EF007520) | - |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Region Specific PriceGroup / Headquarter Price Group | 41D / 41D |
| Supporting protocol for other bus systems (EF003062) | - |
| operating power for 3-phase motors at 400 V at 50 Hz | 0.55 ... 3 kW |
| touch protection on the front according to IEC 60529 | finger-safe |
| Ambient temperature, upper operating limit (EF009603) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| connectable conductor cross-section for main contacts | |
| Supporting protocol for Foundation Fieldbus (EF007522) | - |
| Temperature compensated overload protection (EF009604) | - |
| AWG number as coded connectable conductor cross section | |
| installation altitude at height above sea level maximum | 4 000 m; For derating see manual |
| protection class IP on the front according to IEC 60529 | IP20 |
| relative symmetrical tolerance of the operating voltage | 10 % |
| Coordination class according to IEC 60947-4-3 (EF012390) | - |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| conducted HF interference emissions according to CISPR11 | Class B for the domestic, business and commercial environments |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
| relative symmetrical tolerance of the operating frequency | 10 % |
| connectable conductor cross-section for auxiliary contacts | |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - |
| environmental category during operation according to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● due to high-frequency radiation according to IEC 61000-4-6 | 10 V |
| operating range factor control supply voltage rated value at DC | |
| relative negative tolerance of the control supply voltage at DC | 20 % |
| relative positive tolerance of the control supply voltage at DC | 25 % |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| Number of auxiliary contacts as normally open contact (EF001376) | - |
| ● at AC-53a at 400 V at ambient temperature 40 °C rated value | 7 A |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | - |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | - |
| Number of auxiliary contacts as normally closed contact (EF001377) | - |
| operational current of auxiliary contacts at DC-13 at 24 V maximum | 1 A |
| operational current of auxiliary contacts at AC-15 at 230 V maximum | 3 A |
| design of the switching contact as NO contact for signaling function | OUT, electronic, 24 V DC, 15 mA |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.03.2017 |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Diboron trioxide CAS-No. 1303-86-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Diboron trioxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.2-methyl-1-(4-methyl... CAS-No. 71868-10-5 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-oneBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalEMCConfirmationDeclaration of ConformityotherConfirmation | General Product Approval |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Other |
| adjustable current response value current of the current-dependent overload release | 1.6 ... 7 A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
