3RK3111-1AA10

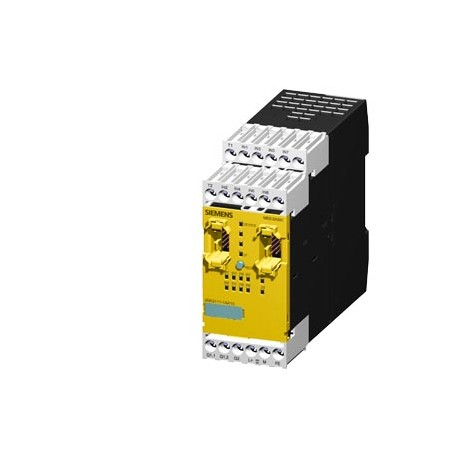

3RK3111-1AA10 SIEMENS SIRIUS, central unit 3RK3 Basic for modular Safety system 3RK3 4/8 F-DI,1F-RO,1 F-DO,2..
$0.00USD
3332 in stock
Key Specifications
:Confirmation
EAN:4011209684195
UPC:754554961927
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209684195 |
| UPC | 754554961927 |
| ETIM | 5 |
| IDEA | 4 |
| Notes | Sucessor:successor 3SK2, S7-1200F or ET200SP when AS-i is used |
| depth | 124 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 111 mm |
| ● solid | 1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²) |
| Group Code | R711 |
| ● at 24 V | 70 A |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| ● stranded | 20 ... 14 |
| Product Group | 5358 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● 2-channel | 1 |
| Commodity Code | 85371098 |
| Product family | 3RK31 central units |
| last modified: | 3/29/2022 |
| Net Weight (kg) | 0,359 Kg |
| type of voltage | DC |
| Depth (EF000049) | 124.0 |
| Model (EF000010) | - |
| Width (EF000008) | 45.0 |
| fastening method | Snap-mounted to DIN rail or screw-mounted with additional push-in lug |
| input delay time | 0 ... 150 ms |
| number of inputs | |
| product category | Modular Safety System |
| product function | |
| shock resistance | 15g / 11 ms |
| Country of origin | Germany |
| Height (EF000040) | 111.0 |
| mounting position | vertical |
| number of outputs | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product phase-out since: 01.10.2021 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +85 °C |
| ● safety-related | 8 |
| ● single channel | 0 |
| Packaging Dimension | 52,50 x 133,00 x 133,00 |
| Product Description | SIRIUS, central unit 3RK3 Basic for modular Safety system 3RK3 4/8 F-DI,1F-RO,1 F-DO,24 V DC parameterizable using software Safety ES 45 mm width screw terminal Up to SIL3 (IEC 61508) Up to Performance Level E (ISO 13849-1) |
| ambient temperature | |
| degree of pollution | 3 |
| inrush current peak | |
| product designation | Central unit |
| protection class IP | IP20 |
| suitability for use | |
| ● of the terminal | IP20 |
| ● during operation | -20 ... +60 °C |
| ● during transport | -40 ... +85 °C |
| ● of the enclosure | IP20 |
| ● valve monitoring | Yes |
| design of the product | 4/8 F-DI, 1 F-RO, 1 F-DO |
| conducted interference | |
| ● monitored start-up | Yes |
| ● non-safety-related | 0 |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| ● at AWG cables solid | 2x (20 ... 14) |
| General Product Approval | EMC |
| Release-delay (EF001129) | - |
| ● PROFIBUS DP protocol | Yes; when using the DP interface module; 32 bit cyclical data |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| ● according to IEC 61508 | SIL CL 3 |
| ● according to IEC 62061 | 3 |
| ● at AWG cables stranded | 2x (20 ... 14) |
| ● parameterizable inputs | Yes |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With start input (EF003342) | - |
| operating frequency maximum | 1 000 1/h |
| operating power rated value | 4.5 W |
| ● EMERGENCY STOP function | Yes |
| ● parameterizable outputs | Yes |
| ● safety-related circuits | Yes |
| Evaluation inputs (EF008245) | - |
| Package size unit of measure | MM |
| Safety Integrity Level (SIL) | |
| Type Examination Certificate | Miscellaneous |
| ● safety-related 2-channel | 2 |
| Substance Prohibitance (Date) | 05/28/2009 |
| type of electrical connection | screw-type terminals |
| ● muting, 2 sensor-parallel | No |
| ● muting, 4 sensor-parallel | No |
| category according to EN 954-1 | 4 |
| insulation voltage rated value | 300 V |
| protocol optional is supported | |
| ● monitoring parameterizable | No |
| ● position switch monitoring | Yes |
| ● protective door monitoring | Yes |
| With muting function (EF004057) | false |
| duration of inrush current peak | |
| ● evaluation: enabling switch | Yes |
| ● evaluation: selector switch | Yes |
| ● muting, 4 sensor-sequential | No |
| ● proximity switch monitoring | Yes |
| With feedback circuit (EF003343) | - |
| Rail mounting possible (EF003972) | FALSE |
| With approval for TÜV (EF004144) | true |
| With detachable clamps (EF003340) | true |
| dark period of the common drivers | 1 ms |
| number of function blocks typical | 300 |
| recovery time of the safe outputs | 420 ms |
| DC resistance of the cable maximum | 100 Ω |
| air pressure according to SN 31205 | 70 ... 106 kPa |
| control supply voltage rated value | 24 V |
| ● monitoring of floating sensors | Yes |
| With approval for BG BIA (EF004145) | - |
| product function removable terminal | Yes |
| category according to EN ISO 13849-1 | 4 |
| surge voltage resistance rated value | 2 500 V |
| ● EMERGENCY-OFF circuit monitoring | Yes |
| Article Number (Market Facing Number) | 3RK3111-1AA10 |
| Functional Safety/Safety of Machinery | Declaration of Conformity |
| SIL according to IEC 61508 (EF009889) | - |
| Voltage type for actuating (EF008242) | DC |
| stop category according to EN 60204-1 | 0 / 1 |
| ● for testing contact-based sensors | 2 |
| ● pressure-sensitive mat monitoring | Yes |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| installation environment regarding EMC | This product is suitable for Class A environments only. In household environments, this device can cause unwanted radio interference. The user is required to implement appropriate measures in this case. |
| ● monitoring of non-floating sensors | Yes |
| reference code according to IEC 81346-2 | K |
| ● evaluation: two-hand operator panel | Yes |
| With approval according to UL (EF001783) | true |
| ● two-hand control according to EN 574 | Yes |
| Category according to EN 954-1 (EF006782) | 4 |
| input delay time at digital input maximum | 150 ms |
| touch protection against electrical shock | finger-safe |
| product function suitable for AS-i Power24V | No |
| protocol is supported AS-Interface protocol | No |
| ● due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| ● protective door monitoring with tumbler | No |
| Suitable for monitoring of valves (EF007272) | true |
| product function diagnostics with CTT2 slave | No |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²) |
| Stop category according to IEC 60204 (EF007498) | 0 + 1 |
| hardware fault tolerance according to IEC 61508 | 1 |
| performance level (PL) according to ISO 13849-1 | e |
| vibration resistance according to IEC 60068-2-6 | 5 ... 500 Hz: 0.75 mm |
| PFHD with high demand rate according to EN 62061 | 0.000000007 1/h |
| Rated control supply voltage Us at DC (EF003980) | ['24', '24'] |
| ingress aquisition time at digital input maximum | 60 ms |
| ● opto-electronic protection device monitoring | Yes |
| SIL Claim Limit (subsystem) according to EN 62061 | Kat. 4 / SIL3 / Ple |
| Type of safety according to IEC 61496-1 (EF004105) | - |
| consumed current for rated value of supply voltage | 1.685 A |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharge / 8 kV air discharge |
| mechanical service life (switching cycles) typical | 10 000 000 |
| field-based interference according to IEC 61000-4-3 | 10 V/m |
| Region Specific PriceGroup / Headquarter Price Group | 42B / 42B |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Suitable for monitoring of tactile sensors (EF007271) | - |
| ● evaluation: electro-sensitive protective equipment | Yes |
| AWG number as coded connectable conductor cross section | |
| Suitable for monitoring of magnetic switches (EF007266) | - |
| Suitable for monitoring of position switches (EF007270) | true |
| installation altitude at height above sea level maximum | 2 000 m |
| protocol is supported ASIsafe (Safety at work) protocol | No |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| Suitable for monitoring of proximity switches (EF007267) | true |
| design of the contactless switching element safety-related | P potential |
| diagnostics test interval by internal test function maximum | 1 000 s |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV |
| Suitable for monitoring of emergency-stop circuits (EF007268) | true |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV |
| number of outputs as contact-less semiconductor switching element | |
| Number of outputs, safety related, delayed, with contact (EF003345) | - |
| switching capacity current of semiconductor outputs at DC-13 at 24 V | 1.5 A |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | - |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| number of outputs as contact-affected switching element safety-related | |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 1 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | true |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | - |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | - |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | - |
| connectable conductor cross-section finely stranded with core end processing | 0.5 ... 2.5 mm² |
| suitability for use for monitoring of optoelectronic protective devices according to IEC 61496-1 | Yes |
| pulse duration of the contactless semiconductor contact block for switching off safety-related maximum | 1 ms |
| General Product ApprovalEMCConfirmationFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesotherType Examination CertificateMiscellaneousType Test Certificates/Test ReportConfirmation | General Product Approval |
