3RK1405-2BE00-2AA2

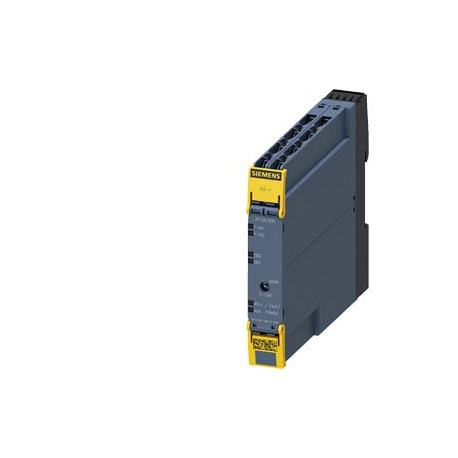

3RK1405-2BE00-2AA2 SIEMENS ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x inpu..
$0.00USD
4213 in stock
Key Specifications
:Confirmation
EAN:4011209974562
UPC:804766359699
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209974562 |
| UPC | 804766359699 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 120 mm |
| width | 17.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| ID1 code | F; Factory setting, changeable |
| ● note | 0.2 A with supply via AS interface / 0.5 A with supply via Uaux |
| ● solid | 1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²) |
| Group Code | R711 |
| Metal Factor | None |
| Date5/10/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3720 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85371098 |
| Product family | SlimLine Compact |
| last modified: | 1/18/2021 |
| reference code | |
| Net Weight (kg) | 0,192 Kg |
| display version | |
| Depth (EF000049) | - |
| Width (EF000008) | - |
| fastening method | screw and snap-on mounting |
| product function | Built-in induction protection |
| shock resistance | 15g / 11 ms (modules) or 10g / 11 ms (modules with device connector) |
| Country of origin | Germany |
| Height (EF000040) | - |
| Marine / Shipping | other |
| other information | An auxiliary external feed (AUX POWER) of between 20 and 30 V DC is necessary for supplying the output circuits. The auxiliary feed must comply with IEC 60990 (PELV), protection class III. |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +85 °C |
| Packaging Dimension | 111,00 x 158,00 x 38,00 |
| Product Description | ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI/2 DQ, IP20 2 x input for mechanical sensors 2 x standard output 24 V DC Output supply can be switched Screw terminals Overall width 17.5 mm |
| ambient temperature | |
| product designation | Slimline Compact I/O module for use in the control cabinet |
| protection class IP | IP20 |
| ● at 30 V maximum | 270 mA |
| ● during operation | -25 ... +70 °C |
| ● for AS-Interface | LED green/red |
| design of the product | AS-i SC17.5F, 2F-DI/2DQ |
| Product Lifecycle (PLM) | PM300:Active Product |
| number of analog inputs | 0 |
| ● at AWG cables solid | 1x (20 ... 14), 2x (18 ... 16) |
| General Product Approval | EMC |
| design of the slave type | standard slave |
| number of analog outputs | 0 |
| number of digital inputs | 0 |
| type of switching output | PNP transistor |
| Declaration of Conformity | Test Certificates |
| IO link master (EF007298) | - |
| Output current (EF003202) | - |
| number of digital outputs | 2 |
| AS-Interface slave profile | S-7.B.F |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | Not permitted |
| Safe failure fraction (SFF) | 99 % |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| System accessory (EF004118) | - |
| ● according to EN 61346-2 | K |
| Package size unit of measure | MM |
| Supply voltage DC (EF007534) | - |
| type of input characteristic | mechanical contacts |
| Radio standard GSM (EF008524) | - |
| Radio standard GPRS (EF008523) | - |
| Radio standard UMTS (EF008525) | - |
| Rack-assembly possible (EF007018) | - |
| Rail mounting possible (EF003972) | - |
| Type of digital output (EF003601) | - |
| Type of output voltage (EF008222) | - |
| With optical interface (EF003028) | - |
| Front build in possible (EF007016) | - |
| Supply voltage AC 50 Hz (EF007532) | - |
| Supply voltage AC 60 Hz (EF007533) | - |
| ● for external auxiliary voltage | 4 A |
| Number of digital inputs (EF001992) | - |
| Radio standard Bluetooth (EF007178) | - |
| Degree of protection (IP) (EF005474) | - |
| Input current at signal 1 (EF001428) | - |
| Number of digital outputs (EF001993) | - |
| category according to EN ISO 13849-1 | up to Category 4 |
| Article Number (Market Facing Number) | 3RK1405-2BE00-2AA2 |
| Permitted voltage at input (EF007554) | - |
| Radio standard WLAN 802.11 (EF007179) | - |
| SIL according to IEC 61508 (EF009889) | - |
| type of voltage supply at the outputs | AS interface / U_AUX switchable |
| Digital inputs configurable (EF008516) | - |
| Number of HW-interfaces USB (EF003025) | - |
| Permitted voltage at output (EF007553) | - |
| Supporting protocol for ASI (EF003051) | - |
| Supporting protocol for CAN (EF003053) | - |
| Supporting protocol for KNX (EF003055) | - |
| Supporting protocol for LON (EF003017) | - |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of address setting of AS-i slaves | via front addressing socket |
| ● at 24 V with AS-i Power24V maximum | 270 mA |
| Digital outputs configurable (EF008520) | - |
| number of digital inputs safety-related | 2 |
| Number of HW-interfaces other (EF003027) | - |
| Number of interfaces PROFINET (EF006932) | - |
| Suitable for safety functions (EF001597) | - |
| Time delay at signal exchange (EF002382) | - |
| Wall mounting/direct mounting (EF007020) | - |
| Category according to EN 954-1 (EF006782) | - |
| Number of HW-interfaces RS-232 (EF003021) | - |
| Number of HW-interfaces RS-422 (EF003022) | - |
| Number of HW-interfaces RS-485 (EF003023) | - |
| Supporting protocol for Modbus (EF003057) | - |
| Supporting protocol for SERCOS (EF006657) | - |
| Supporting protocol for TCP/IP (EF003050) | - |
| Voltage type of supply voltage (EF002991) | - |
| Supporting protocol for SUCONET (EF003060) | - |
| Type of voltage (input voltage) (EF003033) | - |
| property of the output short-circuit proof | Yes |
| Number of HW-interfaces Wireless (EF006933) | - |
| Number of HW-interfaces parallel (EF003026) | - |
| Supporting protocol for INTERBUS (EF003054) | - |
| Supporting protocol for PROFIBUS (EF003052) | - |
| product function suitable for AS-i Power24V | Yes |
| protocol is supported AS-Interface protocol | Yes |
| ● as status display of the inputs/outputs | LED yellow/red |
| Appendant operation agent (Ex ia) (EF004141) | - |
| Appendant operation agent (Ex ib) (EF004142) | - |
| Explosion safety category for gas (EF003997) | - |
| Supporting protocol for DeviceNet (EF003059) | - |
| Supporting protocol for PROFIsafe (EF007526) | - |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0.25 ... 2.5 mm²), 2x (0.25 ... 1.0 mm²) |
| Explosion safety category for dust (EF003998) | - |
| Number of HW-interfaces serial TTY (EF003024) | - |
| Supporting protocol for EtherNet/IP (EF007521) | - |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | - |
| Supporting protocol for Data-Highway (EF003058) | - |
| Supporting protocol for PROFINET CBA (EF007524) | - |
| ● finely stranded without core end processing | Not permitted |
| PFHD with high demand rate according to EN 62061 | 0.0000000045 1/h |
| ampacity of the interface to the device connector | |
| PFDavg with low demand rate according to IEC 61508 | 0.000005 |
| Supporting protocol for INTERBUS-Safety (EF006662) | - |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| Supporting protocol for DeviceNet Safety (EF007520) | - |
| total current of digital outputs per module maximum | 0.5 A |
| Region Specific PriceGroup / Headquarter Price Group | 42C / 42C |
| Supporting protocol for other bus systems (EF003062) | - |
| ampacity of the semiconductor output at DC-13 at 24 V | 0.5 A; 0.15 A with supply via AS interface / 0.5 A with supply via Uaux |
| Number of HW-interfaces industrial Ethernet (EF003020) | - |
| Short-circuit protection, outputs available (EF003203) | - |
| Supporting protocol for Foundation Fieldbus (EF007522) | - |
| type of electrical connection of the inputs and outputs | Screw terminals |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| operating voltage according to AS-Interface specification | 18 ... 31.6 V |
| consumed current from profile conductors of the AS-Interface | |
| product function for power supply reverse polarity protection | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - |
| Fieldbus connection over separate bus coupler possible (EF004002) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 y |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● according to DIN 40719 extended according to IEC 204-2 according to IEC 750 | A |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryConfirmationMiscellaneousDeclaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
