3RK1205-0BG00-2AA2

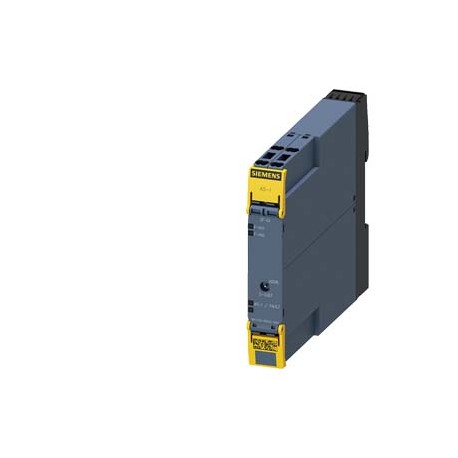

3RK1205-0BG00-2AA2 SIEMENS ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI, IP20 2 x input for..
$0.00USD
3740 in stock
Key Specifications
:Confirmation
EAN:4011209974555
UPC:804766359668
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209974555 |
| UPC | 804766359668 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 120 mm |
| width | 17.5 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 100 mm |
| ID1 code | F; Factory setting, changeable |
| ● solid | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²) |
| Group Code | R711 |
| Metal Factor | None |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3720 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85371098 |
| Product family | SlimLine Compact |
| last modified: | 1/18/2021 |
| reference code | |
| Net Weight (kg) | 0,152 Kg |
| display version | |
| Depth (EF000049) | - |
| Width (EF000008) | - |
| fastening method | screw and snap-on mounting |
| shock resistance | 15g / 11 ms (modules) or 10g / 11 ms (modules with device connector) |
| Country of origin | Germany |
| Height (EF000040) | - |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +85 °C |
| Packaging Dimension | 111,00 x 159,00 x 38,00 |
| Product Description | ASIsafe SlimLine Compact module SC17.5F digital safety 2 F-DI, IP20 2 x input for mechanical sensors spring-type terminals Overall width 17.5 mm |
| ambient temperature | |
| product designation | Slimline Compact I/O module for use in the control cabinet |
| protection class IP | IP20 |
| ● at 30 V maximum | 50 mA |
| ● during operation | -25 ... +70 °C |
| ● for AS-Interface | LED green/red |
| design of the product | AS-i SC17.5F, 2F-DI |
| Product Lifecycle (PLM) | PM300:Active Product |
| number of analog inputs | 0 |
| ● at AWG cables solid | 1x (20 ... 16), 2x (20 ... 16) |
| General Product Approval | EMC |
| design of the slave type | standard slave |
| number of analog outputs | 0 |
| number of digital inputs | 0 |
| Declaration of Conformity | Test Certificates |
| IO link master (EF007298) | - |
| Output current (EF003202) | - |
| number of digital outputs | 0 |
| AS-Interface slave profile | S-0.B.F |
| Export Control Regulations | AL : N / ECCN : N |
| ● at AWG cables stranded | 1x (20 ... 16), 2x (20 ... 16) |
| Safe failure fraction (SFF) | 99 % |
| Standard lead time ex-works | 10 Day/Days |
| Surcharge for Raw Materials | None |
| System accessory (EF004118) | - |
| ● according to EN 61346-2 | K |
| Package size unit of measure | MM |
| Supply voltage DC (EF007534) | - |
| type of input characteristic | mechanical contacts |
| Radio standard GSM (EF008524) | - |
| Radio standard GPRS (EF008523) | - |
| Radio standard UMTS (EF008525) | - |
| Rack-assembly possible (EF007018) | - |
| Rail mounting possible (EF003972) | - |
| Type of digital output (EF003601) | - |
| Type of output voltage (EF008222) | - |
| With optical interface (EF003028) | - |
| Front build in possible (EF007016) | - |
| Supply voltage AC 50 Hz (EF007532) | - |
| Supply voltage AC 60 Hz (EF007533) | - |
| Number of digital inputs (EF001992) | - |
| Radio standard Bluetooth (EF007178) | - |
| Degree of protection (IP) (EF005474) | - |
| Input current at signal 1 (EF001428) | - |
| Number of digital outputs (EF001993) | - |
| category according to EN ISO 13849-1 | up to Category 4 |
| Article Number (Market Facing Number) | 3RK1205-0BG00-2AA2 |
| Permitted voltage at input (EF007554) | - |
| Radio standard WLAN 802.11 (EF007179) | - |
| SIL according to IEC 61508 (EF009889) | - |
| Digital inputs configurable (EF008516) | - |
| Number of HW-interfaces USB (EF003025) | - |
| Permitted voltage at output (EF007553) | - |
| Supporting protocol for ASI (EF003051) | - |
| Supporting protocol for CAN (EF003053) | - |
| Supporting protocol for KNX (EF003055) | - |
| Supporting protocol for LON (EF003017) | - |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| type of address setting of AS-i slaves | via front addressing socket |
| ● at 24 V with AS-i Power24V maximum | 50 mA |
| Digital outputs configurable (EF008520) | - |
| number of digital inputs safety-related | 2 |
| Number of HW-interfaces other (EF003027) | - |
| Number of interfaces PROFINET (EF006932) | - |
| Suitable for safety functions (EF001597) | - |
| Time delay at signal exchange (EF002382) | - |
| Wall mounting/direct mounting (EF007020) | - |
| Category according to EN 954-1 (EF006782) | - |
| Number of HW-interfaces RS-232 (EF003021) | - |
| Number of HW-interfaces RS-422 (EF003022) | - |
| Number of HW-interfaces RS-485 (EF003023) | - |
| Supporting protocol for Modbus (EF003057) | - |
| Supporting protocol for SERCOS (EF006657) | - |
| Supporting protocol for TCP/IP (EF003050) | - |
| Voltage type of supply voltage (EF002991) | - |
| Supporting protocol for SUCONET (EF003060) | - |
| Type of voltage (input voltage) (EF003033) | - |
| Number of HW-interfaces Wireless (EF006933) | - |
| Number of HW-interfaces parallel (EF003026) | - |
| Supporting protocol for INTERBUS (EF003054) | - |
| Supporting protocol for PROFIBUS (EF003052) | - |
| product function suitable for AS-i Power24V | Yes |
| protocol is supported AS-Interface protocol | Yes |
| ● as status display of the inputs/outputs | Yellow LED |
| Appendant operation agent (Ex ia) (EF004141) | - |
| Appendant operation agent (Ex ib) (EF004142) | - |
| Explosion safety category for gas (EF003997) | - |
| Supporting protocol for DeviceNet (EF003059) | - |
| Supporting protocol for PROFIsafe (EF007526) | - |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (0,25 ... 1,0 mm²), 2x (0,25 ... 1,0 mm²) |
| Explosion safety category for dust (EF003998) | - |
| Number of HW-interfaces serial TTY (EF003024) | - |
| Supporting protocol for EtherNet/IP (EF007521) | - |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | - |
| Supporting protocol for Data-Highway (EF003058) | - |
| Supporting protocol for PROFINET CBA (EF007524) | - |
| ● finely stranded without core end processing | 1x (0.5 ... 1.5 mm²), 2x (0.5 ... 1.5 mm²) |
| PFHD with high demand rate according to EN 62061 | 0.0000000045 1/h |
| ampacity of the interface to the device connector | |
| PFDavg with low demand rate according to IEC 61508 | 0.000005 |
| Supporting protocol for INTERBUS-Safety (EF006662) | - |
| performance level (PL) according to EN ISO 13849-1 | e |
| Safety Integrity Level (SIL) according to IEC 61508 | 3 |
| Supporting protocol for DeviceNet Safety (EF007520) | - |
| Region Specific PriceGroup / Headquarter Price Group | 42C / 42C |
| Supporting protocol for other bus systems (EF003062) | - |
| Number of HW-interfaces industrial Ethernet (EF003020) | - |
| Short-circuit protection, outputs available (EF003203) | - |
| Supporting protocol for Foundation Fieldbus (EF007522) | - |
| type of electrical connection of the inputs and outputs | Spring-loaded terminals |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| operating voltage according to AS-Interface specification | 18 ... 31.6 V |
| consumed current from profile conductors of the AS-Interface | |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - |
| Fieldbus connection over separate bus coupler possible (EF004002) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| T1 value for proof test interval or service life according to IEC 61508 | 20 y |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● according to DIN 40719 extended according to IEC 204-2 according to IEC 750 | A |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryConfirmationMiscellaneousDeclaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
