3RH2911-4NF11

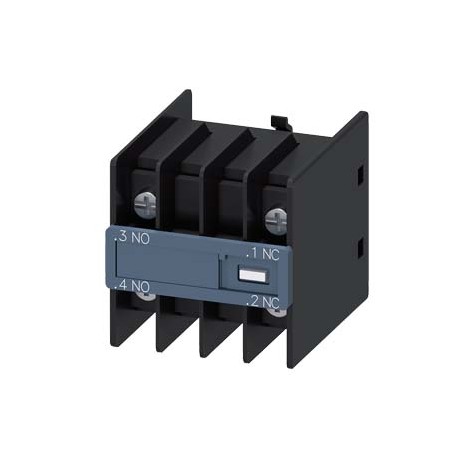

3RH2911-4NF11 SIEMENS Electron. contr. auxiliary switch on the front, 1 NO + 1 NC Current path 1 NO, 1 NC, f..
$0.00USD
3096 in stock
Key Specifications
:
EAN:4011209829954
UPC:662643908466
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209829954 |
| UPC | 662643908466 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 43.7 mm |
| other | Railway |
| width | 36 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 37.5 mm |
| ● note | with 3RT2.2/3/4 |
| Group Code | R711 |
| — at 24 V | 0.3 A |
| — at 60 V | 0.3 A |
| Metal Factor | LAO----- |
| Date5/13/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5344 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Instantaneous |
| last modified: | 1/27/2022 |
| Net Weight (kg) | 0,042 Kg |
| Model (EF000010) | Top mounting |
| fastening method | snap-on mounting |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Packaging Dimension | 55,00 x 65,00 x 45,00 |
| Product Description | Electron. contr. auxiliary switch on the front, 1 NO + 1 NC Current path 1 NO, 1 NC, for 3RH and 3RT Ring cable lug connection .3/.4, --/--, --/--, .1/.2 |
| ambient temperature | |
| operational current | |
| suitability for use | Contactor relay and power contactor |
| ● leading contact | 0 |
| ● during operation | -25 ... +60 °C |
| ● lagging switching | 0 |
| Lamp holder (EF000048) | None |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| ● instantaneous contact | 1 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Other |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type Examination Certificate | Special Test Certificate |
| protection class IP on the front | IP00 |
| ● of auxiliary contacts at DC-13 | |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RH2911-4NF11 |
| Functional Safety/Safety of Machinery | Test Certificates |
| Type of electric connection (EF003961) | Other |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (5 V, 1 mA) |
| Number of fault-signal switches (EF007613) | 0 |
| number of NC contacts for auxiliary contacts | |
| number of NO contacts for auxiliary contacts | |
| mechanical service life (switching cycles) typical | 5 000 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| product function mirror contact according to IEC 60947-4-1 | Yes |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| type of electrical connection for auxiliary and control circuit | ring terminal lug connection |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| product function positively driven operation according to IEC 60947-5-1 | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCConfirmationFunctional Safety/Safety of MachineryTest CertificatesMarine / ShippingType Examination CertificateSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherConfirmationEnvironmental ConfirmationsotherRailwayType Test Certificates/Test ReportVibration and Shock | General Product Approval |
