3RH2911-1NE22

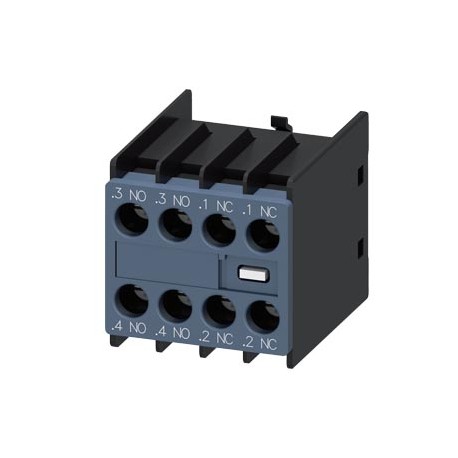

3RH2911-1NE22 SIEMENS Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NO, 1 NC, 1 NC for 3RH..
$0.00USD
3778 in stock
Key Specifications
:Confirmation
EAN:4047621030753
UPC:804766371714
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4047621030753 |
| UPC | 804766371714 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 43.7 mm |
| width | 36 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 37.5 mm |
| ● note | with 3RT2.2/3/4 |
| Group Code | R711 |
| — at 24 V | 0.3 A |
| — at 60 V | 0.3 A |
| Metal Factor | LAO----- |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5344 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Ordering Data Overview |
| last modified: | 1/8/2021 |
| Net Weight (kg) | 0,042 Kg |
| Model (EF000010) | Top mounting |
| fastening method | snap-on mounting |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| Test Certificates | Marine / Shipping |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Packaging Dimension | 52,00 x 59,00 x 43,00 |
| Product Description | auxiliary switch front-side, 2 NO + 2 NC for 3RH2 and 3RT2 screw terminal .3/.4, .3/.4, .1/.2, .1/.2 1 NO + 1 NC, solid-state compatible 1 NO + 1 NC conventional |
| ambient temperature | |
| operational current | |
| suitability for use | Contactor relay and power contactor |
| — finely stranded | |
| ● leading contact | 0 |
| ● during operation | -25 ... +60 °C |
| ● lagging switching | 0 |
| Lamp holder (EF000048) | None |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | EMC |
| Special Test Certificate | Vibration and Shock |
| ● instantaneous contact | 2 |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | Other |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| — with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| protection class IP on the front | IP20 |
| Type Test Certificates/Test Report | Special Test Certificate |
| ● of auxiliary contacts at DC-13 | |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RH2911-1NE22 |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14) |
| contact reliability of auxiliary contacts | one incorrect switching operation of 100 million switching operations (5 V, 1 mA) |
| Number of fault-signal switches (EF007613) | 0 |
| number of NC contacts for auxiliary contacts | |
| number of NO contacts for auxiliary contacts | |
| type of connectable conductor cross-sections | |
| mechanical service life (switching cycles) typical | 5 000 000 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated operation current Ie at AC-15, 230 V (EF001385) | - |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| product function mirror contact according to IEC 60947-4-1 | Yes |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| product function positively driven operation according to IEC 60947-5-1 | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryConfirmationType Examination CertificateTest CertificatesMarine / ShippingType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherEnvironmental ConfirmationsConfirmationRailwaySpecial Test CertificateVibration and ShockType Test Certificates/Test Report | General Product Approval |
