3RH2140-1VB40

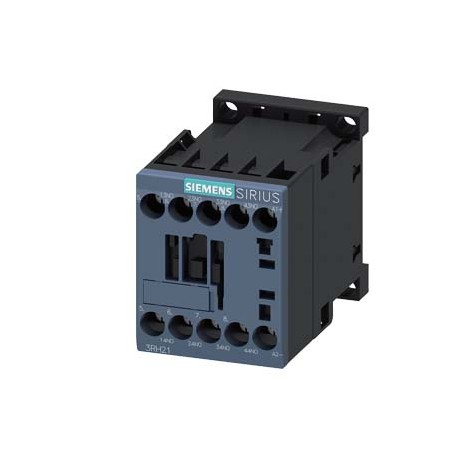

3RH2140-1VB40 SIEMENS Coupling contactor relay, 4 NO, 24 V DC, 0.85 ... 1.85* US, with integrated diode, Siz..
$0.00USD
4086 in stock
Key Specifications
:Confirmation
EAN:4011209848962
EMC:Functional Safety/Safety of Machinery
UPC:662643906943
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209848962 |
| EMC | Functional Safety/Safety of Machinery |
| UPC | 662643906943 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 73 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 57.5 mm |
| ● at AC | 10 000 1/h |
| ● at DC | 10g / 5 ms, 5g / 10 ms |
| Group Code | R711 |
| arcing time | 10 ... 15 ms |
| — upwards | 10 mm |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LBP----- |
| — forwards | 10 mm |
| Product Group | 5331 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| closing delay | |
| opening delay | |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RH2 contactor relays, 4- and 8-pole |
| last modified: | 1/26/2022 |
| Net Weight (kg) | 0,298 Kg |
| — at the side | 0 mm |
| ● rated value | 24 V |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| size of contactor | S00 |
| ● initial value | 0.85 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 50,00 x 61,50 x 77,50 |
| Product Description | Coupling contactor relay, 4 NO, 24 V DC, 0.85 ... 1.85* US, with integrated diode, Size S00, screw terminal |
| ambient temperature | |
| degree of pollution | 3 |
| product designation | Coupling relay for switching auxiliary circuits |
| Interface (EF000594) | - |
| ● during operation | -25 ... +50 °C |
| ● full-scale value | 1.85 |
| — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at 24 V rated value | 10 A |
| ● at 60 V rated value | 10 A |
| product type designation | 3RH2 |
| ● at 110 V rated value | 3 A |
| ● at 220 V rated value | 1 A |
| ● at 230 V rated value | 10 A |
| ● at 400 V rated value | 3 A |
| ● at 440 V rated value | 0.3 A |
| ● at 500 V rated value | 2 A |
| ● at 600 V rated value | 0.15 A |
| ● at 690 V rated value | 1 A |
| ● of contactor typical | 30 000 000 |
| relative humidity minimum | 10 % |
| ● instantaneous contact | 4 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | - |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 200 Day/Days |
| Surcharge for Raw Materials | None |
| no-load switching frequency | |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| operational current at AC-15 | |
| Substance Prohibitance (Date) | 10/01/2009 |
| With LED indication (EF005950) | - |
| design of the surge suppressor | diode |
| ● with side-by-side mounting | |
| proportion of dangerous failures | |
| shock resistance with sine pulse | |
| closing power of magnet coil at DC | 1.6 W |
| holding power of magnet coil at DC | 1.6 W |
| product extension auxiliary switch | No |
| Manual operation possible (EF005881) | - |
| operating frequency at DC-12 maximum | 1 000 1/h |
| operating frequency at DC-13 maximum | 1 000 1/h |
| operational current at AC-12 maximum | 10 A |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RH2140-1VB40 |
| Voltage type for actuating (EF008242) | DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | K |
| shock resistance at rectangular impulse | |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| mechanical service life (switching cycles) | |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Rated operation current Ie, 400 V (EF001378) | 3 |
| number of NO contacts for auxiliary contacts | 4 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| type of voltage of the control supply voltage | DC |
| operational current at 1 current path at DC-12 | |
| operational current at 1 current path at DC-13 | |
| ● with low demand rate according to SN 31920 | 40 % |
| ● with high demand rate according to SN 31920 | 73 % |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Region Specific PriceGroup / Headquarter Price Group | 41A / 41A |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| B10 value with high demand rate according to SN 31920 | 1 000 000; With 0.3 x Ie |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| identification number and letter for switching elements | 40 E |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| operational current with 2 current paths in series at DC-12 | |
| operational current with 2 current paths in series at DC-13 | |
| operational current with 3 current paths in series at DC-12 | |
| operational current with 3 current paths in series at DC-13 | |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| Number of auxiliary contacts as change-over contact (EF003531) | - |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| type of electrical connection for auxiliary and control circuit | screw-type terminals |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | - |
| operating range factor control supply voltage rated value of magnet coil at DC | |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | - |
| design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 10 A |
| design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 V | C characteristic: 6 A; 0.4 kA |
| General Product ApprovalConfirmationKCEMCFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesType Examination CertificateUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingMarine / ShippingotherConfirmation | General Product Approval |
