3RH1921-2DA11

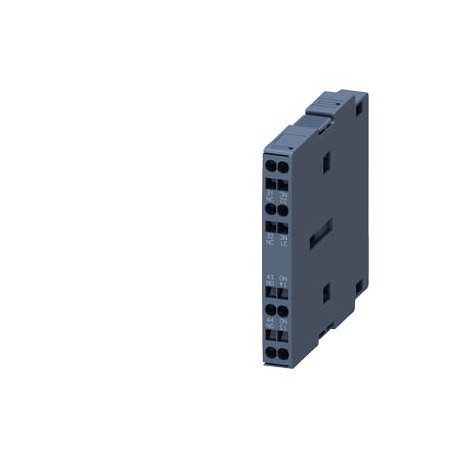

3RH1921-2DA11 SIEMENS first lateral auxiliary switch 1 NO, 1 NC, spring-type terminal, for contactors 3RT1
$0.00USD
3251 in stock
Key Specifications
:Confirmation
EAN:4011209407107
UPC:754554735801
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209407107 |
| UPC | 754554735801 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 71 mm |
| other | Railway |
| width | 10 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 72.5 mm |
| ● note | with 3RT1 |
| Group Code | R711 |
| — at 24 V | 6 A |
| — at 60 V | 2 A |
| ● at 24 V | 10 A |
| ● maximum | 10 A |
| Confirmation | Special Test Certificate |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LBO----- |
| — at 110 V | 3 A |
| — at 125 V | 6 A |
| — at 220 V | 1 A |
| — at 230 V | 6 A |
| — at 250 V | 6 A |
| — at 400 V | 3 A |
| — at AC-14 | |
| — at AC-15 | |
| ● at 230 V | 10 A |
| Product Group | 3729 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85365080 |
| Product family | Instantaneous |
| last modified: | 1/7/2021 |
| Net Weight (kg) | 0,051 Kg |
| Model (EF000010) | Top mounting |
| fastening method | snap-on mounting |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Packaging Dimension | 75,00 x 86,00 x 27,00 |
| Product Description | first lateral auxiliary switch 1 NO, 1 NC, spring-type terminal, for contactors 3RT1 |
| ambient temperature | |
| operational current | |
| suitability for use | Contactor relay and power contactor |
| — finely stranded | |
| ● during operation | -25 ... +60 °C |
| Lamp holder (EF000048) | None |
| Product Lifecycle (PLM) | PM300:Active Product |
| — at 24 V rated value | 10 A |
| — at 60 V rated value | 10 A |
| General Product Approval | Functional Safety/Safety of Machinery |
| — at 110 V rated value | 4 A |
| — at 220 V rated value | 2 A |
| — at 440 V rated value | 1.3 A |
| Declaration of Conformity | Test Certificates |
| ● instantaneous contact | 1 |
| ● of auxiliary contacts | |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Other |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| — with core end processing | 2x (0.5 ... 1.5 mm²) |
| — without core end processing | 2x (0.5 ... 2.5 mm²) |
| protection class IP on the front | IP20 |
| ● of auxiliary contacts at DC-12 | |
| ● of auxiliary contacts at DC-13 | |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RH1921-2DA11 |
| Type of electric connection (EF003961) | Spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 14) |
| contact reliability of auxiliary contacts | 1 faulty switching per 100 million (17 V, 1 mA) |
| Number of fault-signal switches (EF007613) | 0 |
| ● with 2 current paths in series at DC-12 | |
| ● with 2 current paths in series at DC-13 | |
| ● with 3 current paths in series at DC-12 | |
| ● with 3 current paths in series at DC-13 | |
| number of NC contacts for auxiliary contacts | |
| number of NO contacts for auxiliary contacts | |
| type of connectable conductor cross-sections | |
| mechanical service life (switching cycles) typical | 10 000 000 |
| operational current of auxiliary contacts at AC-12 | |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
| product function mirror contact according to IEC 60947-4-1 | Yes |
| insulation voltage with degree of pollution 3 at AC rated value | 500 V |
| type of electrical connection for auxiliary and control circuit | spring-loaded terminals |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 200 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| product function positively driven operation according to IEC 60947-5-1 | No |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalFunctional Safety/Safety of MachineryConfirmationKCType Examination CertificateDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateotherRailwayConfirmationSpecial Test Certificate | General Product Approval |
