3RF3405-1BB06

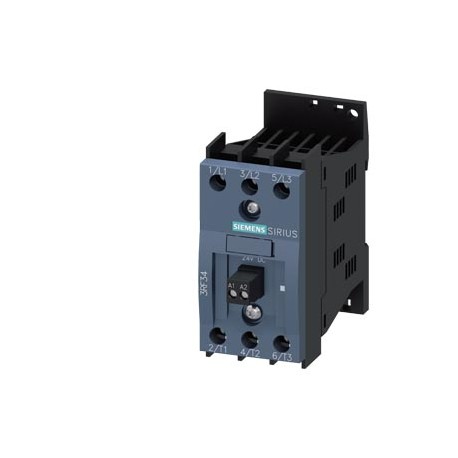

3RF3405-1BB06 SIEMENS Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-600 V / 24 V DC 2-phase co..
$0.00USD
3220 in stock
Key Specifications
:VersionClassificationeClass627-37-10-14eClass7.127-37-10-14eClass827-37-10-14eClass927-37-10-14eClass9.127-37-10-14ETIM6EC002055ETIM7EC002055ETIM8EC002055IDEA45365UNSPSC1439-12-15-21UNSPSC1539-12-23-30
EAN:4011209863293
UPC:040892594683
ETIM:6
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-10-14eClass7.127-37-10-14eClass827-37-10-14eClass927-37-10-14eClass9.127-37-10-14ETIM6EC002055ETIM7EC002055ETIM8EC002055IDEA45365UNSPSC1439-12-15-21UNSPSC1539-12-23-30 | |
| EAN | 4011209863293 |
| UPC | 040892594683 |
| ETIM | 6 |
| IDEA | 4 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | None |
| Product Group | 3725 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RF34 solid-state switching devices for switching motors |
| Net Weight (kg) | 0,280 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 53,00 x 111,50 x 125,00 |
| Product Description | Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-600 V / 24 V DC 2-phase controlled Instantaneous switching screw terminal |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Article Number (Market Facing Number) | 3RF3405-1BB06 |
| Rated operation power NEMA (EF011960) | 1.4709975 |
| Voltage type for actuating (EF008242) | DC |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Rated operation power at AC-3, 400 V (EF001364) | 2.2 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 5.2 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41C / 41C |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of main contacts as normally open contact (EF001374) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
SIRIUS Innovations Three-phase Static Contactor AC53 5,2A 40 DEGREES C 48-600V / 24V DC screw connection. Manufactured to order. Non-Cancelable Non-Returnable.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
