3RF3405-1BB04

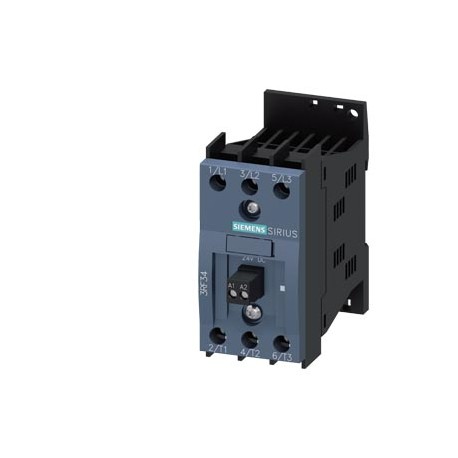

3RF3405-1BB04 SIEMENS Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase co..
$0.00USD
4966 in stock
Key Specifications
:
EAN:4011209863286
UPC:662643164428
ETIM:6
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209863286 |
| UPC | 662643164428 |
| ETIM | 6 |
| IDEA | 4 |
| depth | 100.8 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 95 mm |
| — solid | 2x (1.5 ... 2.5 mm²), 2x (2.5 ... 6 mm²) |
| ● at DC | 2 mA |
| Group Code | R711 |
| ● upwards | 70 mm |
| Date5/4/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| ● at 50 Hz | 40 ... 506 V |
| ● at 60 Hz | 40 ... 506 V |
| ON-delay time | 1 ms |
| Product Group | 3725 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● downwards | 50 mm |
| Commodity Code | 85364900 |
| OFF-delay time | 1 ms; additionally max. one half-wave |
| Product family | SIRIUS 3RF34 solid-state switching devices for switching motors |
| last modified: | 1/11/2022 |
| Net Weight (kg) | 0,285 Kg |
| operating power | |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| product function | instantaneous switching |
| Country of origin | Germany |
| I2t value maximum | 200 A²·s |
| mounting position | vertical |
| tightening torque | |
| ● initial value | 0.63 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Packaging Dimension | 53,00 x 111,50 x 125,00 |
| Product Description | Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Instantaneous switching screw terminal |
| ambient temperature | |
| operational current | |
| product designation | solid-state contactor |
| derating temperature | 40 °C |
| ● during operation | -25 ... +60 °C |
| ● full-scale value | 1.25 |
| design of the product | two-phase controlled |
| ● at DC rated value | 24 V |
| ● for main contacts | |
| ● solid or stranded | 1.5 ... 6 mm² |
| conducted interference | |
| control supply voltage | |
| Product Lifecycle (PLM) | PM300:Active Product |
| operating voltage at AC | |
| ● at NH design usable | 3NA3801-6 |
| General Product Approval | EMC |
| control supply voltage 1 | |
| product type designation | 3RF34 |
| ● at 480 V rated value | 3.4 A |
| ● at 50 Hz rated value | 48 ... 480 V |
| ● at 60 Hz rated value | 48 ... 480 V |
| Declaration of Conformity | Test Certificates |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| MTTF with high demand rate | 76 y |
| Modular version (EF001126) | true |
| certificate of suitability | CE / UL / CSA / CCC / C-Tick (RCM) |
| Standard lead time ex-works | 40 Day/Days |
| Surcharge for Raw Materials | None |
| operational current minimum | 100 mA |
| tightening torque [lbf·in] | |
| Package size unit of measure | MM |
| stripped length of the cable | |
| ● at 200/208 V rated value | 0.5 hp |
| ● at 220/230 V rated value | 0.75 hp |
| ● at 460/480 V rated value | 2 hp |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 05/28/2009 |
| manufacturer's article number | |
| type of electrical connection | |
| insulation voltage rated value | 600 V |
| operating frequency rated value | 50 ... 60 Hz |
| reverse current of the thyristor | 10 mA |
| ● at AC-3 at 400 V rated value | 5.2 A |
| control current at DC rated value | 15 mA |
| ● at AWG cables for main contacts | 2x (14 ... 10) |
| surge current resistance rated value | 200 A |
| symmetrical line frequency tolerance | 5 Hz |
| Article Number (Market Facing Number) | 3RF3405-1BB04 |
| Rated operation power NEMA (EF011960) | 1.4709975 |
| Voltage type for actuating (EF008242) | DC |
| ● for auxiliary and control circuit | screw-type terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● for auxiliary and control contacts | |
| number of NC contacts for main contacts | 0 |
| number of NO contacts for main contacts | 2 |
| reference code according to IEC 81346-2 | Q |
| number of poles for main current circuit | 3 |
| ● of the auxiliary and control contacts | M3 |
| required spacing with side-by-side mounting | |
| ● at cylindrical design 10 x 38 mm usable | 3NW6001-1 |
| ● at cylindrical design 14 x 51 mm usable | 3NW6101-1 |
| ● due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz behavior criterion 2 |
| design of the thread of the connection screw | |
| full-load current (FLA) for 3-phase AC motor | |
| manufacturer's article number of the gG fuse | |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm² |
| ● finely stranded with core end processing | 1 ... 10 mm² |
| type of voltage of the control supply voltage | DC |
| ● _1 of the accessories that can be ordered | 3RA2921-1BA00 |
| ● _2 of the accessories that can be ordered | 3RF3900-0QA88 |
| Rated operation power at AC-3, 400 V (EF001364) | 2.2 |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| vibration resistance according to IEC 60068-2-6 | 2g |
| — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| ● for main contacts with screw-type terminals | 2 ... 2.5 N·m |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| ● at DC initial value for signal <1> detection | 15 V |
| control current at minimum control supply voltage | |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| Rated operation current Ie at AC-1, 400 V (EF001393) | - |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 5.2 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41C / 41C |
| surge voltage resistance of main circuit rated value | 6 kV |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● at AWG cables for auxiliary and control contacts | 1x (AWG 20 ... 12) |
| ● at DC full-scale value for signal<0> recognition | 5 V |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| connectable conductor cross-section for main contacts | |
| installation altitude at height above sea level maximum | 1 000 m |
| operating range relative to the operating voltage at AC | |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| yielded mechanical performance [hp] for 3-phase AC motor | |
| field-bound HF interference emission according to CISPR11 | Class A for industrial environment |
| relative symmetrical tolerance of the operating frequency | 10 % |
| Number of main contacts as normally open contact (EF001374) | 2 |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV behavior criterion 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| ● due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| operating range factor control supply voltage rated value at DC | |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV behavior criterion 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| ● at AC-53a at 400 V at ambient temperature 40 °C rated value | 5.2 A |
| ● for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| product component removable terminal for auxiliary and control circuit | Yes |
| T1 value for proof test interval or service life according to IEC 61508 | 20 y |
| blocking voltage at the thyristor for main contacts maximum permissible | 1 200 V |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| AWG number as coded connectable conductor cross section for main contacts | 14 ... 10 |
| rate of voltage rise at the thyristor for main contacts maximum permissible | 1 000 V/µs |
| ● of back-up R fuse link for semiconductor protection at NH design usable | 3NE8015-1 |
| proportion of dangerous failures with high demand rate according to SN 31920 | 50 % |
| ● of full range R fuse link for semiconductor protection at NH design usable | 3NE1813-0 |
| power loss [W] for rated value of the current without load current share typical | 0.4 W |
| ● of full range R fuse link for semiconductor protection at cylindrical design usable | 5SE1320 |
| ● of back-up R fuse link for semiconductor protection at cylindrical design 10 x 38 mm usable | 3NC1020 |
| ● of back-up R fuse link for semiconductor protection at cylindrical design 14 x 51 mm usable | 3NC1415 |
| ● of back-up R fuse link for semiconductor protection at cylindrical design 22 x 58 mm usable | 3NC2220 |
| General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesotherType Test Certificates/Test ReportConfirmation | General Product Approval |
