3RF2950-0KA16

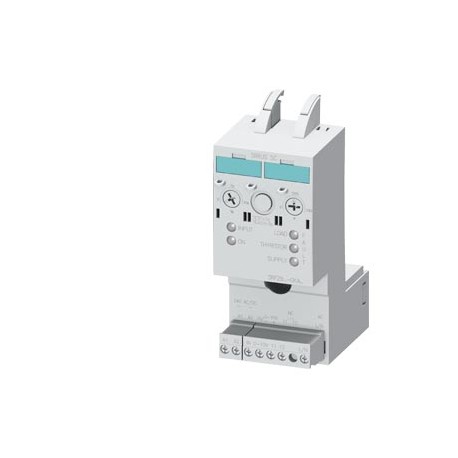

3RF2950-0KA16 SIEMENS Power controller Current range 50 A / 40 °C 400-600 V / 24 V AC/DC for semiconductor r..
$0.00USD
4274 in stock
Key Specifications
:
EAN:4011209679375
UPC:754554956879
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209679375 |
| UPC | 754554956879 |
| ETIM | 5 |
| depth | 69.5 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 111.5 mm |
| — solid | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| ● at AC | 2 mA |
| ● at DC | 24 V |
| Group Code | R711 |
| Metal Factor | None |
| ● at 50 Hz | 340 ... 660 V |
| ● at 60 Hz | 340 ... 660 V |
| Date5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 3726 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RF29 function modules |
| last modified: | 3/11/2021 |
| Net Weight (kg) | 0,179 Kg |
| type of voltage | AC/DC |
| fastening method | clip-on |
| product function | solid-state relay / solid-state contactor 3RF2 |
| Country of origin | Czech Republic |
| Test Certificates | other |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Packaging Dimension | 90,00 x 115,00 x 48,00 |
| Product Description | power controller current range 50 A / 40 °C 400 … 600 V 24 V AC/DC with partial load monitoring for semiconductor relay / contactor |
| ambient temperature | |
| degree of pollution | 3 |
| operational current | |
| product designation | power controller |
| derating temperature | 40 °C |
| ● during operation | -25 ... +60 °C |
| ● at DC rated value | 24 V |
| conducted interference | |
| Product Lifecycle (PLM) | PM300:Active Product |
| operating voltage at AC | |
| General Product Approval | EMC |
| control supply voltage 1 | |
| ● at 50 Hz rated value | 400 ... 600 V |
| ● at 60 Hz rated value | 400 ... 600 V |
| ● at AC-51 rated value | 50 A |
| ● side-by-side mounting | Yes |
| Export Control Regulations | AL : N / ECCN : N |
| Modular version (EF001126) | true |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| Substance Prohibitance (Date) | 05/01/2012 |
| manufacturer's article number | |
| type of electrical connection | |
| control supply voltage 1 at AC | |
| insulation voltage rated value | 600 V |
| operating frequency rated value | 50 ... 60 Hz |
| design of the switching function | NC contact |
| control current at AC rated value | 40 mA |
| control current at DC rated value | 40 mA |
| Type Test Certificates/Test Report | Confirmation |
| symmetrical line frequency tolerance | 5 Hz |
| Article Number (Market Facing Number) | 3RF2950-0KA16 |
| Rated operation power NEMA (EF011960) | - |
| Voltage type for actuating (EF008242) | AC/DC |
| ● for auxiliary and control circuit | screw-type terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● for auxiliary and control contacts | |
| number of NC contacts for main contacts | 0 |
| number of NO contacts for main contacts | 0 |
| reference code according to IEC 81346-2 | K |
| control supply voltage at DC rated value | 18 ... 30 V |
| number of poles for main current circuit | 0 |
| ● due to burst according to IEC 61000-4-4 | 2 kV / 5 kHz behavior criterion 2 |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| ● _1 of the accessories that can be ordered | 3RF2900-0RA88 |
| ● _2 of the accessories that can be ordered | 4EU2452-3UA00-0AA0 |
| Rated operation power at AC-3, 400 V (EF001364) | - |
| Rated operation power at AC-4, 400 V (EF008496) | - |
| vibration resistance according to IEC 60068-2-6 | 2g |
| — finely stranded without core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) |
| Rated control supply voltage Us at DC (EF003980) | ['18', '30'] |
| control current at minimum control supply voltage | |
| electrostatic discharge according to IEC 61000-4-2 | 4 kV contact discharging / 8 kV air discharging, behavior criterion 2 |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 50 |
| Rated operation current Ie at AC-3, 400 V (EF001392) | - |
| Rated operation current Ie at AC-4, 400 V (EF008495) | - |
| Region Specific PriceGroup / Headquarter Price Group | 41C / 41C |
| surge voltage resistance of main circuit rated value | 2.5 kV |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● at AWG cables for auxiliary and control contacts | 1x (AWG 20 ... 12) |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['20.5', '26.5'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['20.5', '26.5'] |
| installation altitude at height above sea level maximum | 1 000 m |
| operating range relative to the operating voltage at AC | |
| protection class IP on the front according to IEC 60529 | IP20 |
| ● at 50 Hz full-scale value for signal<0> recognition | 5 V |
| ● at 60 Hz full-scale value for signal<0> recognition | 5 V |
| Type of electrical connection of main circuit (EF006819) | - |
| conducted HF interference emissions according to CISPR11 | Class A for industrial environment |
| field-bound HF interference emission according to CISPR11 | Class B for the domestic, business and commercial environments |
| relative symmetrical tolerance of the operating frequency | 10 % |
| Number of main contacts as normally open contact (EF001374) | 0 |
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV behavior criterion 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| ● due to high-frequency radiation according to IEC 61000-4-6 | 140 dBuV in the frequency range 0.15 ... 80 MHz, behavior criterion 1 |
| stripped length of the cable for auxiliary and control contacts | 7 mm |
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV behavior criterion 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| supply voltage frequency for auxiliary and control circuit rated value | 50 ... 60 Hz |
| control supply voltage at DC full-scale value for signal<0> recognition | 5 V |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead titanium zircon... CAS-No. 12626-81-2 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead titanium zirconium oxideBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| tightening torque for auxiliary and control contacts with screw-type terminals | 0.5 ... 0.6 N·m |
| power loss [W] for rated value of the current without load current share typical | 1 W |
| design of the thread of the connection screw of the auxiliary and control contacts | M3 |
| tightening torque [lbf·in] for auxiliary and control contacts with screw-type terminals | 4.5 ... 5.3 lbf·in |
| General Product ApprovalEMCDeclaration of ConformityConfirmationTest CertificatesotherType Test Certificates/Test ReportConfirmation | General Product Approval |
