3RB3133-4WW1

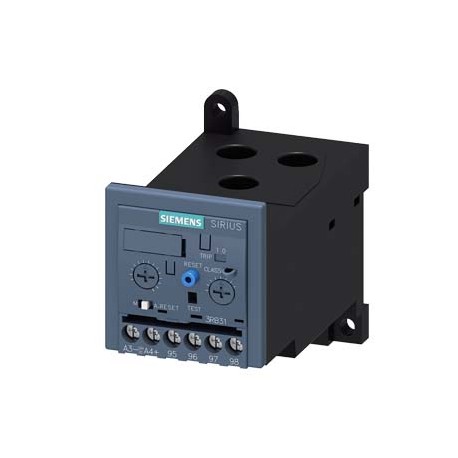

3RB3133-4WW1 SIEMENS Overload relay 20...80 A Electronic For motor protection Size S2, Class 5E...30E Stand-..
$0.00USD
4710 in stock
Key Specifications
:VersionClassificationeClass627-37-15-02eClass7.127-37-15-02eClass827-37-15-02eClass927-37-15-02eClass9.127-37-15-02ETIM5EC001080ETIM6EC001080ETIM7EC001080ETIM8EC001080IDEA45365UNSPSC1539-12-23-30
EAN:4011209936591
UPC:887621914769
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-15-02eClass7.127-37-15-02eClass827-37-15-02eClass927-37-15-02eClass9.127-37-15-02ETIM5EC001080ETIM6EC001080ETIM7EC001080ETIM8EC001080IDEA45365UNSPSC1539-12-23-30 | |
| EAN | 4011209936591 |
| UPC | 887621914769 |
| ETIM | 5 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | R711 |
| Metal Factor | L-O----- |
| Product Group | 5350 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3RB30, 3RB31 for standard applications |
| Net Weight (kg) | 0,185 Kg |
| Country of origin | Czech Republic |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Packaging Dimension | 123,00 x 127,00 x 68,00 |
| Product Description | Overload relay 20...80 A Electronic For motor protection Size S2, Class 5E...30E Stand-alone installation Main circuit: Straight-through transformer Auxiliary circuit: Screw Manual-Automatic-Reset Internal ground fault detection |
| Product Lifecycle (PLM) | PM300:Active Product |
| Release class (EF006668) | Adjustable |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | Separate positioning |
| Standard lead time ex-works | 60 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Reset function input (EF011940) | - |
| Adjustable current range (EF008211) | ['20', '80'] |
| Reset function automatic (EF011941) | - |
| Article Number (Market Facing Number) | 3RB3133-4WW1 |
| Reset function push-button (EF011942) | - |
| Voltage type for actuating (EF008242) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Type of electrical connection of main circuit (EF006819) | Through-feed current converter |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 15.10.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
