3RB2906-2BG1

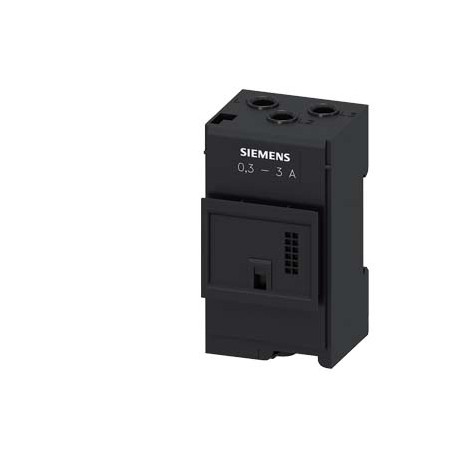

3RB2906-2BG1 SIEMENS Current transformer 0.3...3 A for 3RB22/23/24 Size S00/S0 Stand-alone installation Main..
$0.00USD
4562 in stock
Key Specifications
:
EAN:4011209632677
UPC:040892553727
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209632677 |
| UPC | 040892553727 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R711 |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | L-O----- |
| Product Group | 5812 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85043180 |
| Product family | Current measuring modules for 3RB22, 3RB23, 3RB24 |
| last modified: | 2/9/2022 |
| Net Weight (kg) | 0,174 Kg |
| fastening method | stand-alone installation |
| Country of origin | Germany |
| Marine / Shipping | other |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| Packaging Dimension | 47,00 x 114,00 x 55,00 |
| Product Description | Current transformer 0.3...3 A for 3RB22/23/24 Size S00/S0 Stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: -- |
| product designation | Current measuring module |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | For use in hazardous locations |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| ● for main current circuit | straight-through transformers |
| Substance Prohibitance (Date) | 05/28/2009 |
| type of electrical connection | |
| operational current rated value | 3 A |
| ● at AC-3e rated value maximum | 690 V |
| Article Number (Market Facing Number) | 3RB2906-2BG1 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Type of accessory/spare part (EF000215) | - |
| operational current at AC-3e at 400 V rated value | 3 A |
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| protection class IP on the front according to IEC 60529 | IP20 |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| certificate of suitability according to ATEX directive 2014/34/EU | PTB 05 ATEX 3022 |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| adjustable current response value current of the current-dependent overload release | 0.3 ... 3 A |
| General Product ApprovalFor use in hazardous locationsConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
