3RB2483-4AC1

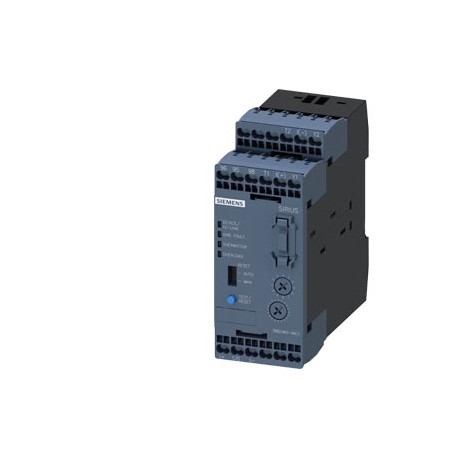

3RB2483-4AC1 SIEMENS Evaluation unit for full motor protection (monostable) for IO-Link Size S00...S12, clas..
$0.00USD
4748 in stock
Key Specifications
:
EAN:4011209863057
UPC:040892790726
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4011209863057 |
| UPC | 040892790726 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 95 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 113 mm |
| Group Code | R711 |
| trip class | CLASS 5, 10, 20 and 30 adjustable |
| — upwards | 0 mm |
| ● at 24 V | 6 A |
| ● at 60 V | 0.55 A |
| Date5/3/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | None |
| — forwards | 0 mm |
| ● at 125 V | 6 A |
| ● at 220 V | 0.2 A |
| ● at 230 V | 3 A |
| ● per pole | 0.17 W |
| Product Group | 5812 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | 3RB24 for IO-Link, for high-feature applications |
| last modified: | 5/2/2022 |
| Net Weight (kg) | 0,261 Kg |
| — at the side | 0 mm |
| fastening method | stand-alone installation |
| required spacing | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 53,00 x 115,50 x 125,00 |
| Product Description | Evaluation unit for full motor protection (monostable) for IO-Link Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset |
| ambient temperature | |
| product designation | Electronic overload relay for IO-Link |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| — solid or stranded | 1x (0,25 ... 1,5 mm²), 2x (0,25 ... 1,5 mm²) |
| size of overload relay | S00 ... S12 |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| General Product Approval | EMC |
| Release class (EF006668) | Other |
| product type designation | 3RB24 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Separate positioning |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 05/28/2009 |
| type of electrical connection | |
| For use in hazardous locations | Declaration of Conformity |
| ● with side-by-side mounting | |
| Reset function input (EF011940) | - |
| operating frequency rated value | 50 ... 60 Hz |
| operational current rated value | 630 A |
| relative humidity during operation | 100 % |
| Adjustable current range (EF008211) | ['0.3', '630'] |
| Reset function automatic (EF011941) | - |
| surge voltage resistance rated value | 4 kV |
| Article Number (Market Facing Number) | 3RB2483-4AC1 |
| Reset function push-button (EF011942) | - |
| Voltage type for actuating (EF008242) | AC |
| ● for auxiliary and control circuit | spring-loaded terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | F |
| number of poles for main current circuit | 3 |
| ● at AWG cables for auxiliary contacts | 1x (24 ... 16), 2x (24 ... 16) |
| number of CO contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| shock resistance according to IEC 60068-2-27 | 15g / 11 ms |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²) |
| — finely stranded without core end processing | 1x (0.25 ... 1.5 mm²), 2x (0.25 ... 1.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | - |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| size of contactor can be combined company-specific | S00 ... S12 |
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G |
| contact rating of auxiliary contacts according to UL | B300 / R300 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | - |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) G [Ex e] [Ex d] [Ex px] ; Ex II (2) D [Ex t] [Ex p] |
| failure rate [FIT] with low demand rate according to SN 31920 | 2 310 FIT |
| Number of auxiliary contacts as change-over contact (EF003531) | 1 |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| certificate of suitability according to ATEX directive 2014/34/EU | PTB 11 ATEX 3014 |
| ● for short-circuit protection of the auxiliary switch required | fuse gG: 6 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 28.05.2009 |
| product component removable terminal for auxiliary and control circuit | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| power loss [W] for rated value of the current at AC in hot operating state | 0.5 W |
| adjustable current response value current of the current-dependent overload release | 0.3 ... 630 A |
