3RB2383-4AC1

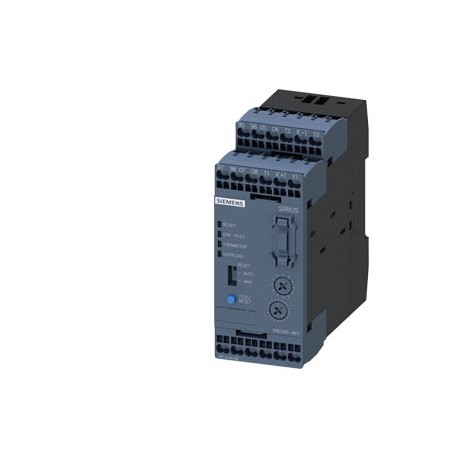

3RB2383-4AC1 SIEMENS Evaluation unit for full motor protection (bistable) Size S00...S12, class 5...30 Stand..
$0.00USD
4057 in stock
Key Specifications
:Confirmation
EAN:4011209642010
UPC:040892553710
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209642010 |
| UPC | 040892553710 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 95 mm |
| width | 45 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 111 mm |
| Group Code | R711 |
| trip class | CLASS 5, 10, 20 and 30 adjustable |
| — upwards | 0 mm |
| ● at 24 V | 6 A |
| ● at 60 V | 0.55 A |
| Confirmation | |
| Metal Factor | None |
| — forwards | 0 mm |
| ● at 110 V | 6 A |
| ● at 120 V | 6 A |
| ● at 125 V | 6 A |
| ● at 220 V | 0.2 A |
| ● at 230 V | 3 A |
| ● per pole | 0.17 W |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5812 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | 3RB22, 3RB23 for high-feature applications |
| last modified: | 2/9/2022 |
| Net Weight (kg) | 0,293 Kg |
| — at the side | 0 mm |
| fastening method | stand-alone installation |
| required spacing | |
| Country of origin | Germany |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 111,00 x 129,00 x 55,00 |
| Product Description | Evaluation unit for full motor protection (bistable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Spring-type terminal Manual-Automatic-Reset |
| ambient temperature | |
| product designation | solid-state overload relay |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| size of overload relay | S00 ... S12 |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| General Product Approval | EMC |
| Release class (EF006668) | Other |
| product type designation | 3RB23 |
| ● at 50 Hz rated value | 24 ... 240 V |
| ● at 60 Hz rated value | 24 ... 240 V |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Separate positioning |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at AC | |
| Substance Prohibitance (Date) | 07/01/2006 |
| type of electrical connection | |
| ● with side-by-side mounting | |
| Reset function input (EF011940) | - |
| operational current rated value | 630 A |
| relative humidity during operation | 100 % |
| Adjustable current range (EF008211) | ['0.3', '630'] |
| Reset function automatic (EF011941) | - |
| surge voltage resistance rated value | 4 kV |
| Article Number (Market Facing Number) | 3RB2383-4AC1 |
| Reset function push-button (EF011942) | - |
| Voltage type for actuating (EF008242) | - |
| ● for auxiliary and control circuit | spring-loaded terminals |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| reference code according to IEC 81346-2 | F |
| number of poles for main current circuit | 3 |
| ● at AWG cables for auxiliary contacts | 2x (24 ... 16) |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.25 ... 1.5 mm²) |
| Rated control supply voltage Us at DC (EF003980) | - |
| operational current of auxiliary contacts at AC-15 | |
| operational current of auxiliary contacts at DC-13 | |
| size of contactor can be combined company-specific | S00 ... S12 |
| Region Specific PriceGroup / Headquarter Price Group | 41G / 41G |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| installation altitude at height above sea level maximum | 2 000 m |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | - |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| ● for short-circuit protection of the auxiliary switch required | fuse gL/gG: 6 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| product component removable terminal for auxiliary and control circuit | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Lead monoxide (lead oxide)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Dicyclohexyl phthala... CAS-No. 84-61-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Dicyclohexyl phthalate (DCHP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.Tris(2-chloroethyl) ... CAS-No. 115-96-8 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):Tris(2-chloroethyl) phosphate (TCEP)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| power loss [W] for rated value of the current at AC in hot operating state | 0.5 W |
| adjustable current response value current of the current-dependent overload release | 0.3 ... 630 A |
| General Product ApprovalEMCConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingType Test Certificates/Test ReportSpecial Test CertificateotherConfirmation | General Product Approval |
Product Description
SIRIUS Overload Relay, Protection Relay (unit) for comprehensive motor protection size S00... S12, Class 5...30 independent mounting Main connections: -- Auxiliary connections: terminals Spring connec
