3RB2133-4UB0

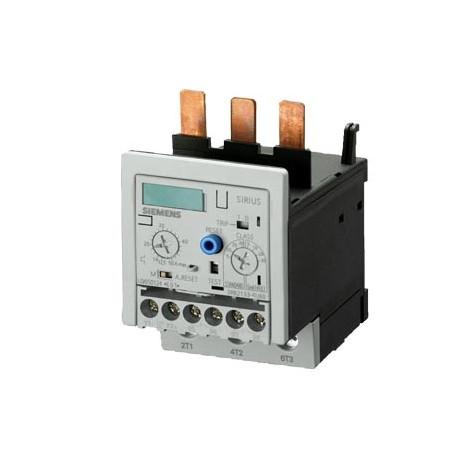

3RB2133-4UB0 SIEMENS Overload relay 12.5...50 A For motor protection Size S2, Class 5...30 Contactor mountin..
$0.00USD
4323 in stock
Key Specifications
:Value
EAN:4011209639294
UPC:040892553567
Notes:Sucessor:Successor SIRIUS Innovation 3RB3
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209639294 |
| UPC | 040892553567 |
| Notes | Sucessor:Successor SIRIUS Innovation 3RB3 |
| depth | 109 mm |
| width | 55 mm |
| height | 92 mm |
| Group Code | R711 |
| trip class | CLASS 5E, 10E, 20E and 30E adjustable |
| Price Group | 41G |
| — upwards | 0 mm |
| ● at 24 V | 4 A |
| ● at 60 V | 0.55 A |
| Metal Factor | L-O----- |
| — forwards | 0 mm |
| ● at 110 V | 4 A |
| ● at 120 V | 4 A |
| ● at 125 V | 4 A |
| ● at 220 V | 0.11 A |
| ● at 230 V | 3 A |
| Product Group | 5808 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 0 mm |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/28/2020 |
| Net Weight (kg) | 0,310 Kg |
| — at the side | 0 mm |
| required spacing | |
| ● on the front | IP00 |
| Country of origin | Czech Republic |
| Marine / Shipping | other |
| ● mounting type | Contactor mounting |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product is cancelled since: 01.10.2019 |
| Packaging Quantity | 1 |
| Type of protection | PTB 06 ATEX 3001 Ex II (2) GD |
| insulation voltage | |
| product brand name | SIRIUS |
| ● during storage | -40 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 99,00 x 117,00 x 60,00 |
| Product Description | Overload relay 12.5...50 A For motor protection Size S2, Class 5...30 Contactor mounting Main circuit: Screw terminal Auxiliary circuit: Screw terminal Manual-Automatic-Reset Internal ground fault detection !!! Phased-out product !!! Successor is SIRIUS 3RB3 Preferred successor type is >>3RB3133-4UB0<< |
| ambient temperature | |
| product designation | solid-state overload relay |
| protection class IP | |
| ● during operation | -25 ... +60 °C |
| ● during transport | -40 ... +80 °C |
| ● shock resistance | 15g / 11 ms |
| ● mounting position | any |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| General Product Approval | EMC |
| Release class (EF006668) | Other |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | ECCN : N / AL : N |
| Mounting method (EF000003) | - |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| ● for main current circuit | screw-type terminals |
| type of electrical connection | |
| Product Dimensions (W x L x H) | Not available |
| ● with side-by-side mounting | |
| Reset function input (EF011940) | - |
| relative humidity during operation | 100 % |
| Adjustable current range (EF008211) | ['12.5', '50'] |
| Reset function automatic (EF011941) | - |
| surge voltage resistance rated value | 6 kV |
| Article Number (Market Facing Number) | 3RB2133-4UB0 |
| Reset function push-button (EF011942) | - |
| Voltage type for actuating (EF008242) | - |
| reference code acc. to DIN EN 81346-2 | F |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| number of poles for main current circuit | 3 |
| electrostatic discharge acc. to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
| ● for auxiliary and control current circuit | screw-type terminals |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| operating current of auxiliary contacts at AC-15 | |
| operating current of auxiliary contacts at DC-13 | |
| ● number of CO contacts for auxiliary contacts | 0 |
| ● number of NC contacts for auxiliary contacts | 1 |
| ● number of NO contacts for auxiliary contacts | 1 |
| ● with degree of pollution 3 at AC rated value | 690 V |
| ● operating voltage at AC-3 rated value maximum | 690 V |
| size of contactor can be combined company-specific | S2 |
| field-bound parasitic coupling acc. to IEC 61000-4-3 | 10 V/m |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| ● installation altitude at height above sea level maximum | 2 000 m |
| ● conducted interference due to burst acc. to IEC 61000-4-4 | 2 kV (power ports), 1 kV (signal ports) corresponds to degree of severity 3 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● type of connectable conductor cross-sections for main contacts solid | 2x (1 ... 16 mm²) |
| ● product function removable terminal for auxiliary and control circuit | Yes |
| adjustable pick-up value current of the current-dependent overload release | 12.5 ... 50 A |
| ● Type of connectable conductor cross-sections for main contacts stranded | 2x (max. 25 mm²), 1 ... 35 mm² |
| ● Conducted interference due to conductor-earth surge acc. to IEC 61000-4-5 | 2 kV (line to earth) corresponds to degree of severity 3 |
| ● type of connectable conductor cross-sections for auxiliary contacts solid | 0.5 ... 4 mm², 2x (0.5 ... 2.5 mm²) |
| ● power loss [W] for rated value of the current at AC in hot operating state | 0.05 W |
| ● Conducted interference due to conductor-conductor surge acc. to IEC 61000-4-5 | 1 kV (line to line) corresponds to degree of severity 3 |
| ● type of connectable conductor cross-sections at AWG conductors for main contacts | 2 x (max. 4), 1 x (18 ... 2) |
| ● power loss [W] for rated value of the current at AC in hot operating state per pole | 0.02 W |
| ● design of the fuse link for short-circuit protection of the auxiliary switch required | fuse gL/gG: 6 A |
| ● type of connectable conductor cross-sections at AWG conductors for auxiliary contacts | 2x (20 ... 14) |
| ● type of connectable conductor cross-sections for main contacts finely stranded with core end processing | 2x (1 ... 16 mm²), 1 ... 25 mm² |
| ● type of connectable conductor cross-sections for auxiliary contacts finely stranded with core end processing | 0.5 ... 2.5 mm², 2x (0.5 ... 1.5 mm²) |
| General Product ApprovalEMCFor use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / ShippingMiscellaneousType Test Certificates/Test ReportSpecial Test CertificateMarine / ShippingotherMiscellaneousConfirmation | General Product Approval |
