3RA6120-1DB34

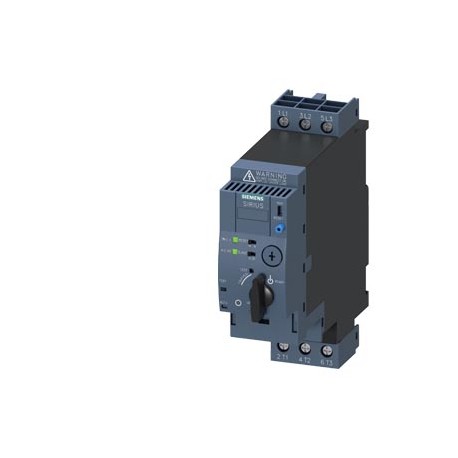

3RA6120-1DB34 SIEMENS SIRIUS Compact load feeder DOL starter 690 V 24 V AC/DC 50...60 Hz 3...12 A IP20 Conne..
$0.00USD
3530 in stock
Key Specifications
:Value
EAN:4011209714250
UPC:662643358964
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209714250 |
| UPC | 662643358964 |
| ETIM | 4 |
| IDEA | 4 |
| Depth | 165 mm |
| Width | 45 mm |
| Height | 170 mm |
| UNSPSC | 14 |
| eClass | 6 |
| B10 value | |
| — solid | 2x (1.5 ... 6 mm²), 1x 10 mm² |
| Group Code | R711 |
| Trip class | CLASS 10 and 20 adjustable |
| Price Group | 42F |
| ● at AC-3 | |
| ● maximum | 2 000 m |
| Metal Factor | LCO----- |
| ● at 400 V | 53 kA |
| ● at AC-43 | |
| Holding power | |
| Mounting type | screw and snap-on mounting |
| Product Group | 5341 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | 3RA61 direct-on-line starters |
| last modified: | 08/13/2020 |
| number of LEDs | 2 |
| Net Weight (kg) | 1,448 Kg |
| Operating power | |
| type of voltage | AC/DC |
| Depth (EF000049) | 165.0 |
| Product function | |
| Shock resistance | a=60 m/s2 (6g) with 10 ms per 3 shocks in all axes |
| Width (EF000008) | 45.0 |
| Country of origin | Germany |
| Height (EF000040) | 170.0 |
| Marine / Shipping | other |
| Operating current | |
| Operating voltage | |
| Product extension | |
| ● 1 rated value | 50 Hz |
| ● 2 rated value | 60 Hz |
| ● at AC maximum | 2.8 W |
| ● at DC maximum | 2.9 W |
| Failure rate [FIT] | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| Type of assignment | continous operation according to IEC 60947-6-2 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| Ambient temperature | |
| Degree of pollution | 3 |
| Operating frequency | |
| Packaging Dimension | 181,50 x 228,50 x 59,50 |
| Product Description | SIRIUS Compact load feeder DOL starter 690 V 24 V AC/DC 50...60 Hz 3...12 A IP20 Connection main circuit: screw terminal Connection auxiliary circuit: plug-in, without terminals |
| Product designation | compact starter |
| Vibration resistance | f= 4 ... 5.8 Hz, d= 15 mm; f= 5.8 ... 500 Hz, a= 20 m/s²; 10 cycles |
| With fuse (EF006693) | false |
| ● Auxiliary switch | Yes |
| ● IO-Link protocol | No |
| ● during operation | -20 ... +60 °C |
| ● during transport | -55 ... +80 °C |
| Design of the product | direct starter |
| Number of CO contacts | |
| Number of NO contacts | |
| Protocol is supported | |
| ● at DC rated value | 24 V |
| ● for main contacts | |
| ● mounting position | any |
| Conducted interference | |
| Design of the fuse link | |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● Protection class IP | IP20 |
| Control supply voltage 1 | |
| General Product Approval | EMC |
| Product type designation | 3RA61 |
| Release class (EF006668) | Adjustable |
| — at 400 V rated value | 11.5 A |
| — at 500 V rated value | 12.4 A |
| — at 690 V rated value | 8.9 A |
| ● at 400 V rated value | 5.5 kW |
| ● at 480 V rated value | 12 A |
| ● at 50 Hz rated value | 24 V |
| ● at 500 V rated value | 5.5 kW |
| ● at 60 Hz rated value | 24 V |
| ● at 600 V rated value | 12 A |
| ● at 690 V rated value | 7.5 kW |
| Declaration of Conformity | Test Certificates |
| ● AS-Interface protocol | No |
| Export Control Regulations | AL : N / ECCN : N |
| ● for auxiliary contacts | |
| No-load switching frequency | 3 600 1/h |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| With transformer (EF000278) | false |
| Package size unit of measure | MM |
| — at 200/208 V rated value | 3 hp |
| — at 220/230 V rated value | 3 hp |
| — at 460/480 V rated value | 7.5 hp |
| — at 575/600 V rated value | 10 hp |
| ● for three-phase AC motor | |
| Control supply voltage 1 at AC | |
| Product Dimensions (W x L x H) | Not available |
| ● at AC at 400 V rated value | 12 A |
| ● at AC-3 rated value maximum | 690 V |
| Degree of protection NEMA rating | other |
| Proportion of dangerous failures | |
| Type of motor starter (EF009598) | Direct online starter (DOL) |
| control supply voltage frequency | |
| ● at AC in hot operating state | 1.8 W |
| ● of the main contacts typical | 10 000 000 |
| Rail mounting possible (EF003972) | - |
| ● Mounting position recommended | vertical, on horizontal standard mounting rail |
| ● of auxiliary contacts typical | 10 000 000 |
| Design of short-circuit protection | electromagnetic |
| External reset possible (EF003426) | - |
| Relative humidity during operation | 10 ... 90 % |
| product function bus communication | No |
| ● Insulation voltage rated value | 690 V |
| Yielded mechanical performance [hp] | |
| ● at DC-13 at 6 A at 24 V typical | 30 000 |
| Degree of protection (IP) (EF005474) | IP20 |
| Surge voltage resistance rated value | 6 000 V |
| ● at AC-15 at 6 A at 230 V typical | 200 000 |
| Article Number (Market Facing Number) | 3RA6120-1DB34 |
| Number of indicator lights (EF001965) | - |
| Rated operation current Ie (EF001443) | 12 |
| Reference code acc. to DIN EN 81346-2 | Q |
| Voltage type for actuating (EF008242) | AC/DC |
| With short-circuit release (EF006691) | true |
| ● of the signaling contacts typical | 10 000 000 |
| Degree of protection (NEMA) (EF011959) | - |
| Number of command positions (EF001372) | - |
| Suitable for emergency stop (EF001433) | - |
| Supporting protocol for ASI (EF003051) | - |
| Supporting protocol for CAN (EF003053) | - |
| Supporting protocol for LON (EF003017) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| ● between main and auxiliary circuit | 400 V |
| ● due to burst acc. to IEC 61000-4-4 | 4 kV main contacts, 2 kV auxiliary contacts |
| ● at AWG conductors for main contacts | 2x (16 ... 10), 1x 8 |
| ● removable terminal for main circuit | Yes |
| Number of poles for main current circuit | 3 |
| Formula for making capacity limit current | 12 x Ie |
| Product function Short circuit protection | Yes |
| Supply voltage required Auxiliary voltage | No |
| Supporting protocol for Modbus (EF003057) | - |
| Supporting protocol for SERCOS (EF006657) | - |
| Supporting protocol for TCP/IP (EF003050) | - |
| ● at AC in hot operating state per pole | 0.6 W |
| ● between control and auxiliary circuit | 300 V |
| ● with low demand rate acc. to SN 31920 | 40 % |
| Mechanical service life (switching cycles) | |
| Supporting protocol for SUCONET (EF003060) | - |
| ● at AC-41 acc. to IEC 60947-6-2 maximum | 750 1/h |
| ● at AC-43 acc. to IEC 60947-6-2 maximum | 250 1/h |
| ● with high demand rate acc. to SN 31920 | 3 000 000 |
| Mechanical power output for 4-pole AC motor | |
| Overload release current setting (EF002336) | ['3', '12'] |
| Supporting protocol for INTERBUS (EF003054) | - |
| Supporting protocol for PROFIBUS (EF003052) | - |
| ● between auxiliary and auxiliary circuit | 250 V |
| Number of NC contacts for auxiliary contacts | 1 |
| Number of NO contacts for auxiliary contacts | 1 |
| Supporting protocol for DeviceNet (EF003059) | - |
| Supporting protocol for PROFIsafe (EF007526) | - |
| Type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (1.5 ... 6 mm²) |
| ● at AWG conductors for auxiliary contacts | 2x (20 ... 14) |
| Electrostatic discharge acc. to IEC 61000-4-2 | 8 kV |
| Power loss [W] for rated value of the current | |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | - |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | - |
| Supporting protocol for EtherNet/IP (EF007521) | - |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | - |
| maximum permissible voltage for safe isolation | |
| Formula for interruption capacity limit current | 10 x Ie |
| Installation altitude at height above sea level | |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 |
| Supporting protocol for Data-Highway (EF003058) | - |
| Supporting protocol for PROFINET CBA (EF007524) | - |
| Full-load current (FLA) for three-phase AC motor | |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| ● Control circuit interface to parallel wiring | Yes |
| Rated operation current at AC-3, 400 V (EF009602) | - |
| Supporting protocol for INTERBUS-Safety (EF006662) | - |
| Conducted HF-interference emissions acc. to CISPR11 | 150 kHz ... 30 MHz Class A |
| Supporting protocol for DeviceNet Safety (EF007520) | - |
| Contact rating of auxiliary contacts according to UL | contacts 21-22, 13-14, 43-44 Q600 / A600, contacts 77-78 R300 / B300, contacts 95-96-98 R300 / D300 |
| Field-bound HF-interference emission acc. to CISPR11 | 30 ... 1000 MHz Class A |
| Field-bound parasitic coupling acc. to IEC 61000-4-3 | 10 V/m |
| Supporting protocol for other bus systems (EF003062) | - |
| Ambient temperature, upper operating limit (EF009603) | - |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '24'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '24'] |
| Supporting protocol for Foundation Fieldbus (EF007522) | - |
| Temperature compensated overload protection (EF009604) | - |
| ● due to conductor-earth surge acc. to IEC 61000-4-5 | 4 kV main contacts, 2 kV auxiliary contacts |
| Product function Control circuit interface with IO link | No |
| Coordination class according to IEC 60947-4-3 (EF012390) | continous operation according to IEC 60947-6-2 |
| Operating current of auxiliary contacts at AC-12 maximum | 10 A |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| ● removable terminal for auxiliary and control circuit | Yes |
| Operational short-circuit current breaking capacity (Ics) | |
| ● due to high-frequency radiation acc. to IEC 61000-4-6 | 0.15-80Mhz at 10V |
| ● Type of electrical connection for main current circuit | screw-type terminals |
| ● due to conductor-conductor surge acc. to IEC 61000-4-5 | 2 kV main contacts, 1 kV auxiliary contacts |
| Electrical endurance (switching cycles) of auxiliary contacts | |
| ● operating current of auxiliary contacts at DC-13 at 250 V | 0.27 A |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | - |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | - |
| ● for short-circuit protection of the auxiliary switch required | fuse gL/gG: 10 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| T1 value for proof test interval or service life acc. to IEC 61508 | 20 y |
| ● of instantaneous short-circuit trip unit for signaling contact | 1 |
| ● of the current-dependent overload release for signaling contact | 1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| adjustable pick-up value current of the current-dependent overload release | 3 ... 12 A |
| ● Type of electrical connection for auxiliary and control current circuit | plug-in without terminals |
| Power loss [W] for rated value of the current without load current share typical | 2.9 W |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Other |
| ● for short-circuit protection of the signaling switch of the overload release required | 4A gL/gG/400V |
| ● for short-circuit protection of the signaling switch of the short-circuit release required | 6A gL/gG/400V |
| General Product ApprovalEMCFunctional Safety/Safety of MachineryDeclaration of ConformityTest CertificatesMarine / ShippingMiscellaneousType Test Certificates/Test ReportMarine / ShippingotherConfirmation | General Product Approval |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
