3RA2315-8XE30-2BB4

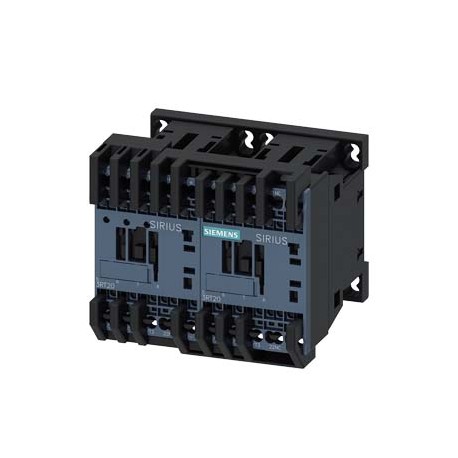

3RA2315-8XE30-2BB4 SIEMENS Reversing contactor assembly for 3RA27 AC-3, 3 kW/400 V, 24 V DC 3-pole, Size S00..
$0.00USD
4834 in stock
Key Specifications
:Confirmation
EAN:4011209836570
UPC:662643897906
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209836570 |
| UPC | 662643897906 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 83 mm |
| width | 90 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 84 mm |
| — solid | 2x (0.5 ... 4 mm²) |
| ● at AC | 6,7g / 5 ms, 4,2g / 10 ms |
| ● at DC | 6,7g / 5 ms, 4,2g / 10 ms |
| Group Code | R711 |
| — upwards | 6 mm |
| ● at AC-3 | |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LCO----- |
| — forwards | 6 mm |
| Product Group | 5337 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 6 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RA23 reversing contactor assemblies, up to 55 kW |
| last modified: | 2/8/2022 |
| Net Weight (kg) | 0,703 Kg |
| operating power | |
| — at the side | 6 mm |
| fastening method | screw and snap-on mounting onto 35 mm standard mounting rail |
| required spacing | |
| Country of origin | Germany |
| Marine / Shipping | other |
| Test Certificates | Marine / Shipping |
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| size of contactor | S00 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| ● during storage | -55 ... +80 °C |
| ● for live parts | |
| ● of magnet coil | Spring-type terminals |
| Function (EF000030) | Reversing contactor |
| Packaging Dimension | 97,00 x 109,00 x 112,00 |
| Product Description | Reversing contactor assembly for 3RA27 AC-3, 3 kW/400 V, 24 V DC 3-pole, Size S00 Spring-type terminal electrical and mechanical interlock with voltage tap |
| ambient temperature | |
| product designation | Reversing contactor assembly |
| ● during operation | -25 ... +60 °C |
| — solid or stranded | 2x (0,5 ... 4 mm²) |
| ● at DC rated value | 24 V |
| ● for main contacts | |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| design of the fuse link | |
| General Product Approval | Declaration of Conformity |
| Special Test Certificate | Type Test Certificates/Test Report |
| control supply voltage 1 | |
| product type designation | 3RA23 |
| — at 400 V rated value | 3 kW |
| — at 500 V rated value | 3 kW |
| — at 690 V rated value | 4 kW |
| ● at 400 V rated value | 7 A |
| ● at 480 V rated value | 4.8 A |
| ● at 500 V rated value | 6 A |
| ● at 600 V rated value | 6.1 A |
| ● at 690 V rated value | 4.9 A |
| ● of contactor typical | 10 000 000 |
| Export Control Regulations | AL : N / ECCN : N |
| ● for auxiliary contacts | |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| operational current at AC-3 | |
| Package size unit of measure | MM |
| ● at 200/208 V rated value | 1.5 hp |
| ● at 220/230 V rated value | 2 hp |
| ● at 460/480 V rated value | 3 hp |
| ● at 575/600 V rated value | 5 hp |
| ● for main current circuit | spring-loaded terminals |
| Substance Prohibitance (Date) | 10/01/2009 |
| manufacturer's article number | |
| type of electrical connection | |
| ● with side-by-side mounting | |
| ● 1 of the supplied contactor | 3RT2015-2BB42-0CC0 |
| ● 2 of the supplied contactor | 3RT2015-2BB42 |
| proportion of dangerous failures | |
| shock resistance with sine pulse | |
| ● at AC-4 at 400 V rated value | 3 kW |
| closing power of magnet coil at DC | 4 W |
| holding power of magnet coil at DC | 4 W |
| product extension auxiliary switch | Yes |
| product function bus communication | Yes |
| operating frequency at AC-3 maximum | 750 1/h |
| ● at AWG cables for main contacts | 1x (20 ... 12) |
| ● of the supplied RH assembly kit | 3RA2913-2AA2 |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3RA2315-8XE30-2BB4 |
| Rated operation power NEMA (EF011960) | 2.20649625 |
| Voltage type for actuating (EF008242) | DC |
| ● for auxiliary and control circuit | spring-loaded terminals |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| — with type of assignment 2 required | gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 20 A |
| number of NC contacts for main contacts | 0 |
| number of NO contacts for main contacts | 3 |
| reference code according to IEC 81346-2 | Q |
| shock resistance at rectangular impulse | |
| ● at contactor for auxiliary contacts | Spring-type terminals |
| number of poles for main current circuit | 3 |
| — with type of coordination 1 required | gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 35 A |
| ● at AWG cables for auxiliary contacts | 2x (20 ... 14) |
| contact reliability of auxiliary contacts | < 1 error per 100 million operating cycles |
| mechanical service life (switching cycles) | |
| protocol is supported AS-Interface protocol | No |
| full-load current (FLA) for 3-phase AC motor | |
| type of connectable conductor cross-sections | |
| — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| operating voltage at AC-3 rated value maximum | 690 V |
| type of voltage of the control supply voltage | DC |
| ● with low demand rate according to SN 31920 | 40 % |
| Rated operation power at AC-3, 400 V (EF001364) | 3.0 |
| — finely stranded without core end processing | 2x (0.5 ... 2.5 mm²) |
| ● with high demand rate according to SN 31920 | 75 % |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 7 |
| Region Specific PriceGroup / Headquarter Price Group | 41B / 41B |
| contact rating of auxiliary contacts according to UL | A600 / Q600 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| ● for short-circuit protection of the main circuit | |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| installation altitude at height above sea level maximum | 2 000 m |
| product function control circuit interface with IO link | No |
| protection class IP on the front according to IEC 60529 | IP20 |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| yielded mechanical performance [hp] for 3-phase AC motor | |
| failure rate [FIT] with low demand rate according to SN 31920 | 100 FIT |
| ● of the contactor with added auxiliary switch block typical | 10 000 000 |
| ● for short-circuit protection of the auxiliary switch required | fuse gG: 10 A |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityTest CertificatesMarine / ShippingSpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherRailwayDangerous GoodConfirmationVibration and ShockTransport Information | General Product Approval |
