3RA2220-1FD24-0AP0

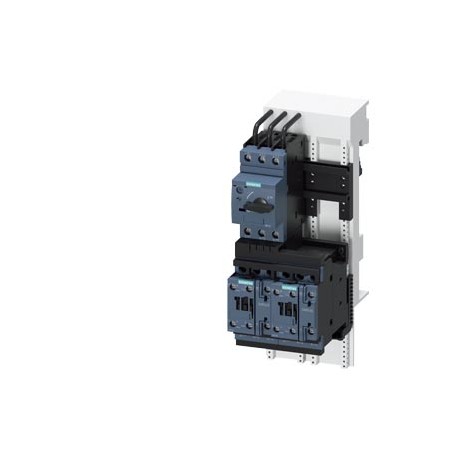

3RA2220-1FD24-0AP0 SIEMENS Load feeder fuseless, Reversing duty 400 V AC, Size S0 3.50...5.00 A 230 V AC scr..
$0.00USD
4761 in stock
Key Specifications
:Confirmation
EAN:4011209798403
UPC:662643902198
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Confirmation | |
| EAN | 4011209798403 |
| UPC | 662643902198 |
| ETIM | 5 |
| IDEA | 4 |
| depth | 155 mm |
| width | 90 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 260 mm |
| Group Code | R711 |
| trip class | CLASS 10 |
| — upwards | 50 mm |
| Date5/8/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LCO----- |
| — forwards | 32 mm |
| Product Group | 5348 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| — backwards | 0 mm |
| — downwards | 10 mm |
| Commodity Code | 85364900 |
| Product family | SIRIUS 3RA2 load feeders |
| last modified: | 2/16/2022 |
| Net Weight (kg) | 2,123 Kg |
| — at the side | 10 mm |
| ● rated value | 690 V |
| Depth (EF000049) | 155.0 |
| Width (EF000008) | 90.0 |
| fastening method | for snapping onto 60 mm busbar systems |
| required spacing | |
| Country of origin | Germany |
| Height (EF000040) | 260.0 |
| Marine / Shipping | other |
| mounting position | vertical |
| operating voltage | |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| type of assignment | 2 |
| ● during storage | -50 ... +80 °C |
| ● for live parts | |
| Packaging Dimension | 246,00 x 326,00 x 222,00 |
| Product Description | Load feeder fuseless, Reversing duty 400 V AC, Size S0 3.50...5.00 A 230 V AC screw terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO+1 NC (contactor) |
| ambient temperature | |
| product designation | Reversing starter |
| size of load feeder | S0 |
| With fuse (EF006693) | false |
| ● during operation | -20 ... +60 °C |
| ● during transport | -50 ... +80 °C |
| design of the product | for 60 mm busbars |
| protocol is supported | |
| ● PROFIsafe protocol | No |
| ● for grounded parts | |
| Product Lifecycle (PLM) | PM300:Active Product |
| operating power at AC-3 | |
| General Product Approval | For use in hazardous locations |
| Release class (EF006668) | CLASS 10 |
| product type designation | 3RA22 |
| temperature compensation | -20 ... +60 °C |
| ● PROFINET IO protocol | No |
| ● at 400 V rated value | 1 500 W |
| ● at 480 V rated value | 4.8 A |
| ● at 50 Hz rated value | 230 V |
| ● for 3-phase AC motor | |
| Declaration of Conformity | Test Certificates |
| Export Control Regulations | AL : N / ECCN : N |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| With transformer (EF000278) | false |
| size of the circuit-breaker | S00 |
| Package size unit of measure | MM |
| UK Declaration of Conformity | Special Test Certificate |
| control supply voltage at AC | |
| — at 200/208 V rated value | 1 hp |
| — at 220/230 V rated value | 1 hp |
| — at 460/480 V rated value | 3 hp |
| — at 575/600 V rated value | 3 hp |
| ● for main current circuit | screw-type terminals |
| Substance Prohibitance (Date) | 10/01/2009 |
| manufacturer's article number | |
| type of electrical connection | |
| ● of the supplied contactor | 3RT2024-1AP00 |
| design of the overload release | thermal (bimetallic) |
| design of the switching contact | electromechanical |
| operating frequency rated value | 50 ... 60 Hz |
| ● at AC-3 rated value maximum | 690 V |
| ● of the supplied link module | 3RA2921-1AA00 |
| Type of motor starter (EF009598) | Other |
| degree of protection NEMA rating | other |
| design of the short-circuit trip | magnetic |
| proportion of dangerous failures | |
| Rail mounting possible (EF003972) | - |
| External reset possible (EF003426) | - |
| product extension auxiliary switch | Yes |
| relative humidity during operation | 10 ... 95 % |
| ● of the supplied busbar adapter | 8US1251-5NT10 |
| yielded mechanical performance [hp] | |
| ● of the supplied RS assembly kit | 8US1250-5AT10 |
| Degree of protection (IP) (EF005474) | IP20 |
| surge voltage resistance rated value | 6 kV |
| ● of the supplied circuit-breakers | 3RV2011-1FA10 |
| Article Number (Market Facing Number) | 3RA2220-1FD24-0AP0 |
| Number of indicator lights (EF001965) | 0 |
| Rated operation current Ie (EF001443) | 3.6 |
| Voltage type for actuating (EF008242) | AC / AC |
| With short-circuit release (EF006691) | true |
| ● for auxiliary and control circuit | screw-type terminals |
| Degree of protection (NEMA) (EF011959) | - |
| Number of command positions (EF001372) | - |
| Suitable for emergency stop (EF001433) | - |
| Supporting protocol for ASI (EF003051) | - |
| Supporting protocol for CAN (EF003053) | - |
| Supporting protocol for LON (EF003017) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| conditional short-circuit current (Iq) | |
| number of poles for main current circuit | 3 |
| Supporting protocol for Modbus (EF003057) | - |
| Supporting protocol for SERCOS (EF006657) | - |
| Supporting protocol for TCP/IP (EF003050) | - |
| product function short circuit protection | Yes |
| Supporting protocol for SUCONET (EF003060) | - |
| Overload release current setting (EF002336) | ['3.5', '5'] |
| Supporting protocol for INTERBUS (EF003054) | - |
| Supporting protocol for PROFIBUS (EF003052) | - |
| apparent holding power of magnet coil at AC | 8.5 VA |
| protocol is supported AS-Interface protocol | No |
| Supporting protocol for DeviceNet (EF003059) | - |
| Supporting protocol for PROFIsafe (EF007526) | - |
| full-load current (FLA) for 3-phase AC motor | |
| shock resistance according to IEC 60068-2-27 | 6g / 11 ms |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | - |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | - |
| type of voltage of the control supply voltage | AC |
| Supporting protocol for EtherNet/IP (EF007521) | - |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | - |
| Rated operation power at AC-3, 400 V (EF001364) | 1.5 |
| Supporting protocol for Data-Highway (EF003058) | - |
| Supporting protocol for PROFINET CBA (EF007524) | - |
| ● with high demand rate according to SN 31920 | 73 % |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| operational current at AC-3 at 400 V rated value | 3.6 A |
| Rated operation current at AC-3, 400 V (EF009602) | 3.6 |
| Supporting protocol for INTERBUS-Safety (EF006662) | - |
| Supporting protocol for DeviceNet Safety (EF007520) | - |
| ● at 400 V according to IEC 60947-4-1 rated value | 150 000 A |
| Region Specific PriceGroup / Headquarter Price Group | 41D / 41D |
| Supporting protocol for other bus systems (EF003062) | - |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
| Ambient temperature, upper operating limit (EF009603) | - |
| B10 value with high demand rate according to SN 31920 | 1 000 000 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Supporting protocol for Foundation Fieldbus (EF007522) | - |
| Temperature compensated overload protection (EF009604) | - |
| Coordination class according to IEC 60947-4-3 (EF012390) | Class 2 |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | - |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| type of protection according to ATEX directive 2014/34/EU | Ex II (2) GD |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - |
| insulation voltage with degree of pollution 3 at AC rated value | 690 V |
| mechanical service life (switching cycles) of contactor typical | 10 000 000 |
| Number of auxiliary contacts as normally open contact (EF001376) | - |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | - |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | - |
| certificate of suitability according to ATEX directive 2014/34/EU | DMT 02 ATEX F 001 |
| Number of auxiliary contacts as normally closed contact (EF001377) | - |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2009 |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | - |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | - |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | - |
| adjustable current response value current of the current-dependent overload release | 3.5 ... 5 A |
| General Product ApprovalFor use in hazardous locationsDeclaration of ConformityConfirmationDeclaration of ConformityTest CertificatesMarine / ShippingUK Declaration of ConformitySpecial Test CertificateType Test Certificates/Test ReportMarine / ShippingotherRailwayConfirmationVibration and Shock | General Product Approval |
