3RA1335-8XB30-1BB4

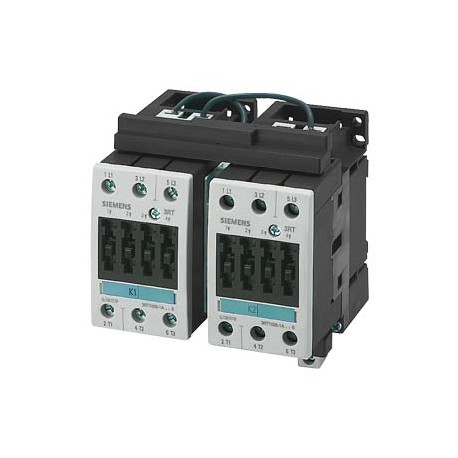

3RA1335-8XB30-1BB4 SIEMENS Reversing contactor assembly AC-3, 18.5 kW/400 V, 3-pole Size S2, Screw terminal ..
$0.00USD
3770 in stock
Key Specifications
:Value
EAN:4011209400528
UPC:754554670645
Depth:130 mm
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4011209400528 |
| UPC | 754554670645 |
| Depth | 130 mm |
| Notes | Product is no longer availableSucessor:SIRIUS Innovation 3RA2If you need assistance please contact our local Siemens office |
| Width | 120 mm |
| Height | 133 mm |
| Group Code | R711 |
| Price Group | 41B |
| Metal Factor | LDO----- |
| Mounting type | screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022 |
| Product Group | 3710 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364900 |
| Product family | Not available |
| last modified: | 08/13/2020 |
| Net Weight (kg) | 3,390 Kg |
| Product function | Reversing contactor |
| Country of origin | Germany |
| Operating current | |
| Size of contactor | S2 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| PLM Effective Date | Product discontinued since: 01.04.2020 |
| Packaging Quantity | 1 |
| Ambient temperature | |
| Function (EF000030) | Reversing contactor |
| Packaging Dimension | 246,00 x 326,00 x 222,00 |
| Product Description | Reversing contactor assembly AC-3, 18.5 kW/400 V, 3-pole Size S2, Screw terminal 24 V DC Electrical and mechanical interlock !!! Phased-out product !!! Successor is SIRIUS 3RA2 Preferred successor type is >>3RA2335-8XB30-1NB3<< |
| ● during operation | -25 ... +60 °C |
| ● at DC rated value | 24 V |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| Control supply voltage 1 | |
| Export Control Regulations | ECCN : N / AL : N |
| Standard lead time ex-works | 20 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Product Dimensions (W x L x H) | Not available |
| protection class IP on the front | IP20 |
| ● at AC-3 at 400 V rated value | 40 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Article Number (Market Facing Number) | 3RA1335-8XB30-1BB4 |
| Rated operation power NEMA (EF011960) | - |
| Reference code acc. to DIN EN 81346-2 | Q |
| Voltage type for actuating (EF008242) | DC |
| Degree of protection (NEMA) (EF011959) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Operating power at AC-3 at 400 V rated value | 18.5 kW |
| Type of voltage of the control supply voltage | DC |
| Rated operation power at AC-3, 400 V (EF001364) | 18.5 |
| Rated control supply voltage Us at DC (EF003980) | ['-', '24'] |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 40 |
| Rated control supply voltage Us at AC 50HZ (EF003978) | ['-', '-'] |
| Rated control supply voltage Us at AC 60HZ (EF003979) | ['-', '-'] |
| Type of electrical connection for main current circuit | screw-type terminals |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| Number of NC contacts for auxiliary contacts per direction of rotation | 0 |
| Number of NO contacts for auxiliary contacts per direction of rotation | 0 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
