3NW8230-1

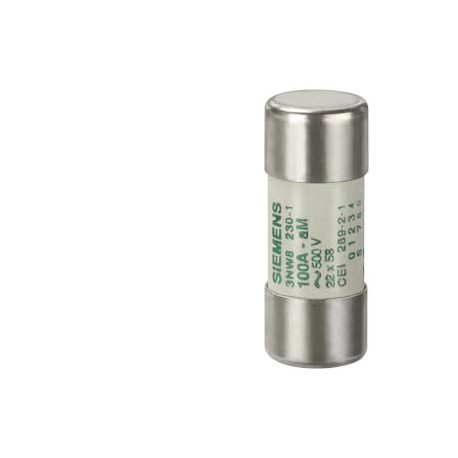

3NW8230-1 SIEMENS SENTRON, cylindrical fuse link, 22x58 mm, 100 A, aM, Un AC: 500 V
$0.00USD
4236 in stock
Key Specifications
:
EAN:4001869062877
UPC:754554383187
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4001869062877 |
| UPC | 754554383187 |
| ETIM | 5 |
| UNSPSC | 15 |
| eClass | 6 |
| Group Code | P310 |
| net weight | 53 g |
| Confirmation | |
| Date5/2/2022 | |
| Metal Factor | L-P----- |
| Product Group | 5539 |
| Product class | B: return restricted, please contact your Siemens partner/contact |
| Quantity Unit | 1 Piece |
| Commodity Code | 85361090 |
| Product family | Cylindrical Fuse Links and Cylindrical Fuse Holders |
| Net Weight (kg) | 0,053 Kg |
| Size (EF000088) | 22x58 mm |
| Country of origin | Czech Republic |
| mounting position | Any, preferably vertical |
| LKZ_FDB/ CatalogID | LV10.1 |
| Packaging Quantity | 1 |
| product brand name | SENTRON |
| Packaging Dimension | 109,00 x 116,00 x 23,00 |
| Product Description | SENTRON, cylindrical fuse link, 22x58 mm, 100 A, aM, Un AC: 500 V |
| product designation | Cylindrical fuse link |
| size of the fuse link | 22x58 mm |
| Minimum order quantity | 10 |
| supply voltage / at DC | 250 V |
| Product Lifecycle (PLM) | PM300:Active Product |
| Voltage type (EF000187) | AC |
| With striker (EF008175) | false |
| General Product Approval | Declaration of Conformity |
| Rated voltage (EF003977) | ['10', '500'] |
| Rated voltage (EF007681) | 500 |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | 100 |
| Standard lead time ex-works | 5 Day/Days |
| Surcharge for Raw Materials | None |
| product component / striker | No |
| Breaking capacity (EF005617) | - |
| Package size unit of measure | MM |
| Utilization category (EF002572) | aM (switchgear protection) |
| operating class of the fuse link | aM |
| Release characteristic (EF000889) | - |
| operational current / rated value | 100 A |
| Rated operating frequency (EF007370) | ['62', '45'] |
| Article Number (Market Facing Number) | 3NW8230-1 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| operating voltage / at AC / rated value | 500 V |
| operational current / at AC / rated value | 100 A |
| type of voltage / of the operating voltage | AC |
| Region Specific PriceGroup / Headquarter Price Group | 13K / 1BM |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 5.6 W |
| General Product ApprovalDeclaration of ConformityTest CertificatesotherConfirmationUK Declaration of ConformityMiscellaneousMiscellaneous | General Product Approval |
Product Description
CYLINDER FUSE A.M. NO ANNOUNCEMENT SIZE 22X58MM, 500V 100A ( ** ATTENTION : Price per 1 Unit and Minimum Quantity / Multiplo order 10 Units ** ). Cancelations and returns limited. Consult conditions.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
